5.1 Convenient Settings
5-6 WF1946B
Other:

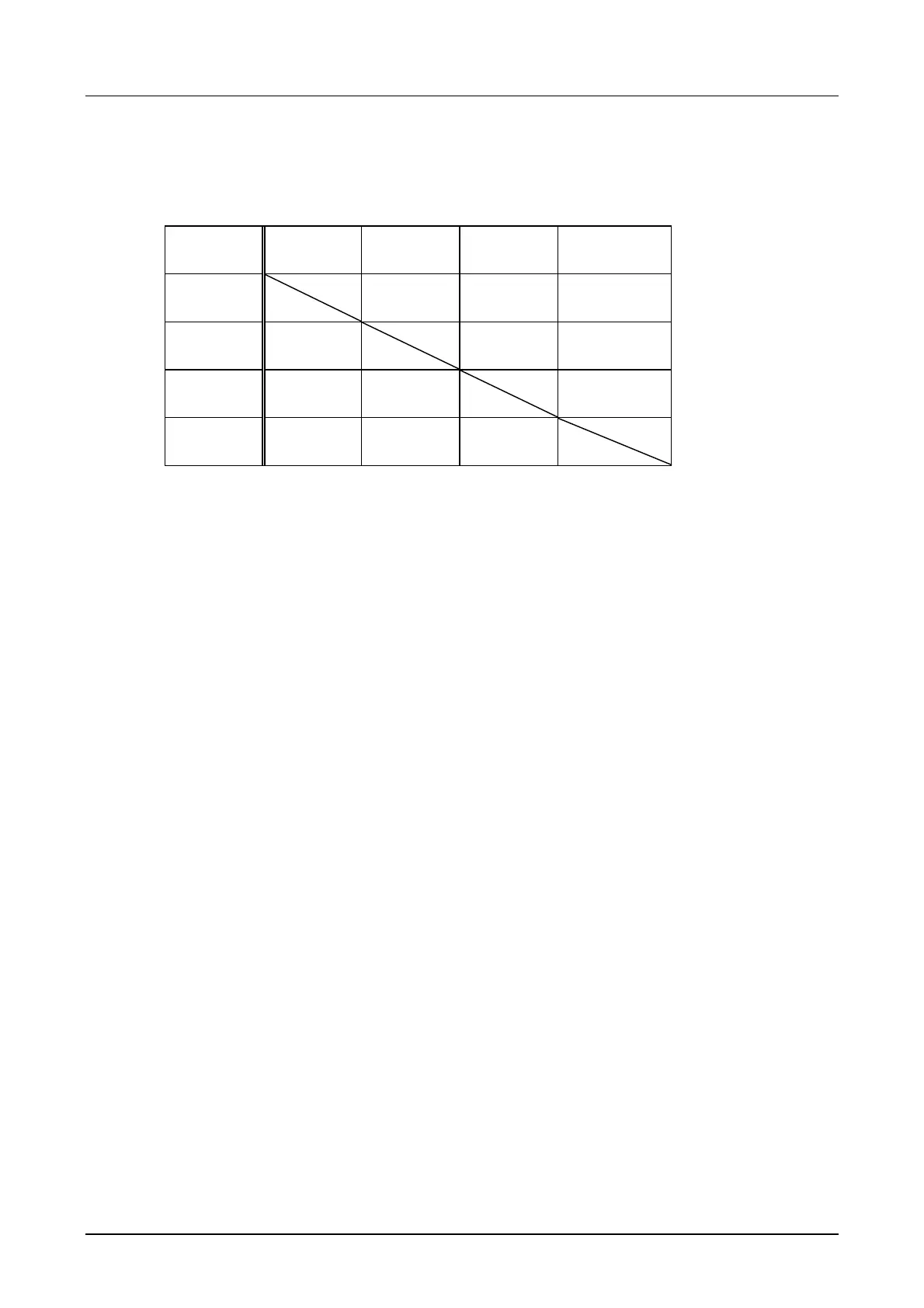

The table indicates the effects on other parameters when the amplitude, DC offset, high level or low level
is changed
Change
↓
Amplitude
(AMPTD)
DC offset
(OFFSET)
High level
(HIGH)
Low level
(LOW)
Amplitude
(AMPTD)
Unchanged Changed Changed
DC offset
(OFFSET)
Unchanged Changed Changed
High level
(HIGH)
Changed Changed Unchanged
Low level
(LOW)
Changed Changed Unchanged
• Due to the relationships between high and low level settings, and between amplitude and DC offset
settings, when the output voltage exceeds the following values, the Over lamp flashes and the output
is clipped in some cases.
10 V range: Approx. 11 V peak/open time
1 V range: Approx. 1.1 V peak/open time
