APPENDIX A
-
INSTALLATION CONFIGURATIONS

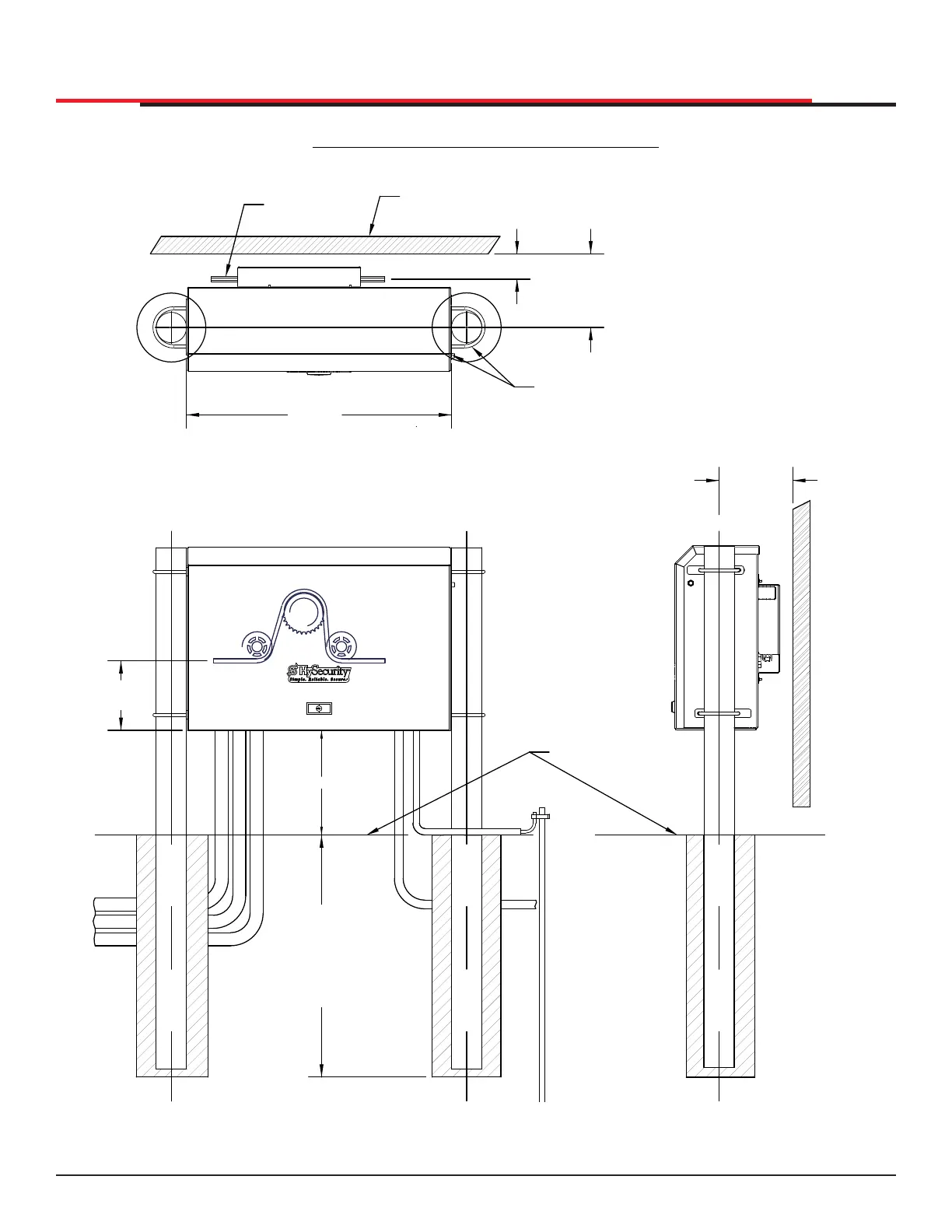

Figure 82. Post Mounted
SLIDESMART HD: POST MOUNTED
7.5” (19 cm)
CENTER OF POST
TO FACE OF GATE
Chassis side cover plates slotted allowing for
u-bolts fitting a 3 - 3.5" (8 - 9") OD post.
Gate
Chain
GATE OPERATOR
POST,
CONCRETE SUPPORT
DEPTH AND DIAMETERS,
BASED UPON A VARIETY
OF FACTORS
INCLUDING GATE WEIGHT /
RESISTANCE, SOIL TYPE ETC.
VARIABLE
Ground Level
3.0” (8 cm)
30.5”
(77.5 cm)
7.5”
(19.0 cm)
NOTE: DRAWING IS NOT TO SCALE.
30.5”
(77.5 cm)
MINIMUM DISTANCE
BETWEEN POSTS
