PC Board Quick References
Manual # 42-02-1P28 A3 6-15
HC-MPU-2-TS Main Processor Board
The HC-MPU-2-TS board performs control data processing and is responsible for:
•Car operation
• Car communication
• Programming and diagnostics
• Redundancy cycle testing
• System software validation
•Duplexing

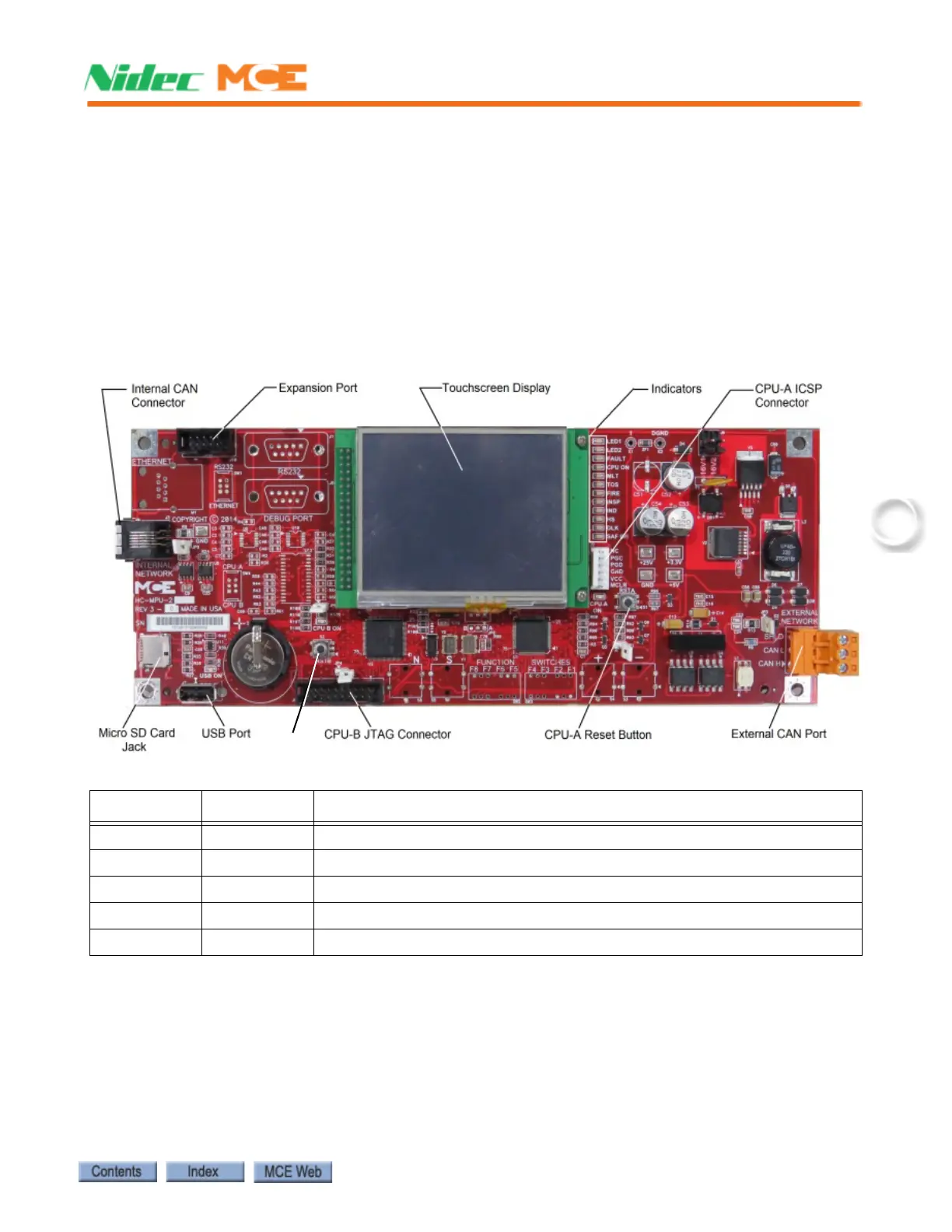

Figure 6.5 HC-MPU-2-TS Main Processor Unit Board
Table 6.10 HC-MPU-2-TS Board Jumpers
Jumper Setting Description
J1 Open CPU A hard reset. Only required for 2K testing
J2 Open Internal CAN network termination
J3 Closed External CAN network termination
J4 Open Boot Selection. Normal = Open
J5 Closed JTAG Debug Jumper. Closed = Debug Mode
