EV Series Automated Dispensing Systems
94
Appendix D, Multi-Needle Setup and Use (continued)
To Set the Camera-to-Tip Offsets for Multiple Dispensers (continued)

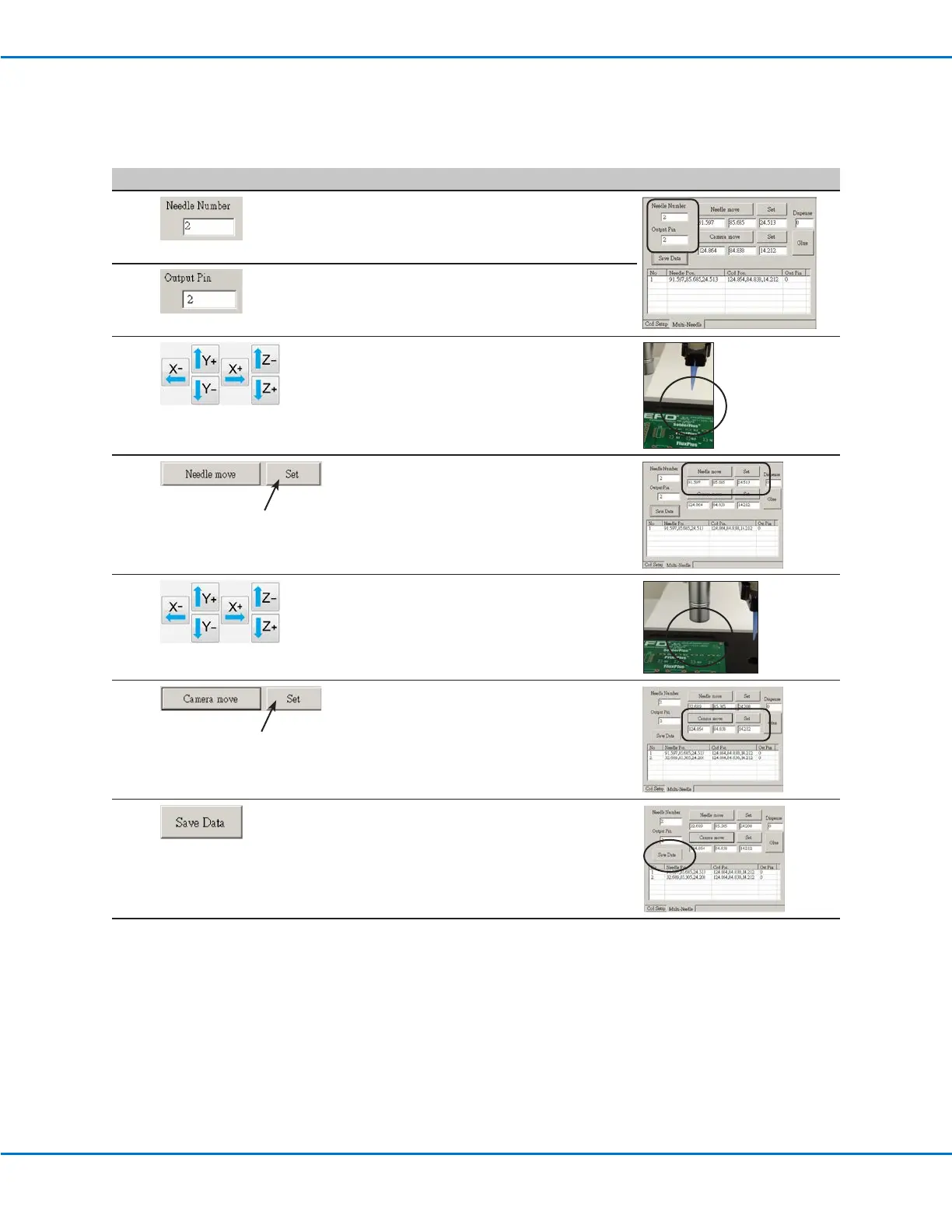

# Click Step Reference Image
10
• Click inside the NEEDLE NUMBER eld and
enter the number for the second dispenser
(in this example, Needle Number 2 for
Dispenser2).
11
• Click inside the OUTPUT PIN eld and enter
the I/O Port pin that the second dispenser
is connected to (in this example, 2 for
Dispenser2).
12
• Use the jog keys to position the second tip
over the crosshair target (on either the tip
detector or the one you created).
• Jog the tip down until it as close to the
crosshair target as possible without touching
the target.
13
• Click SET next to Needle Move.
This sets the XYZ coordinates for the
dispense calibration point. The system enters
the dispensing tip coordinates in the elds
under Needle Move and Set.
14
• Jog the camera until the camera crosshairs
are centered over the crosshair target
and then
jog the Zaxis until the image of the crosshair
target is clear.
15
• Click SET next to Camera Move.
This sets the camera position. The system
enters the camera coordinates in the elds
under Camera Move and Set.
16
• Click SAVE DATA.
The system populates the Needle 2 data
elds.
The system is now set up for multiple dispenser
operation. Continue to the next procedure in
this section to use this capability.
