Objet Eden500V - Page 107

DOC-00500 Rev. F 7–31
Eden500V/350V/350 User Guide

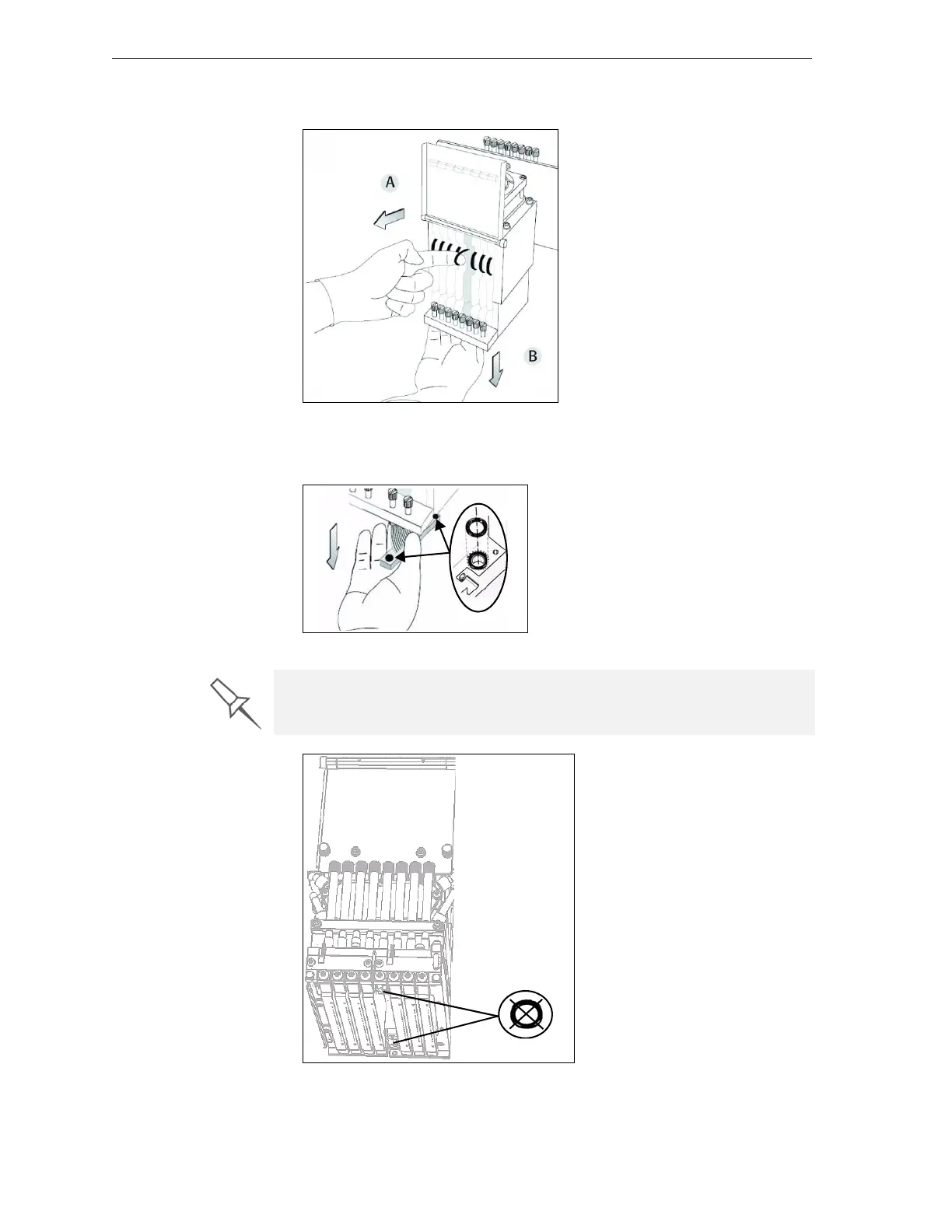

13. Pulltheprint‐headdrivercardoutofitssocketsothattheheadisfree
(A),andremoveitfromthebottomoftheprintblock(B).
Figure 7-42: Releasing the print-head driver card to remove the head
14. Makesurethatalongwiththehead,youremovethetworubberO‐ring
seals.
Figure 7-43: O-ring seals on the print head
Figure 7-44: Making sure the O-rings are not stuck to the print block
Important: If the seals are not removed with the head, they are probably
stuck to the print block housing. If so, remove them.
