11. FastentheblackstriptotheinsideofthenewUVlampreflector,onthe
samesideasitwasintheoldreflector.

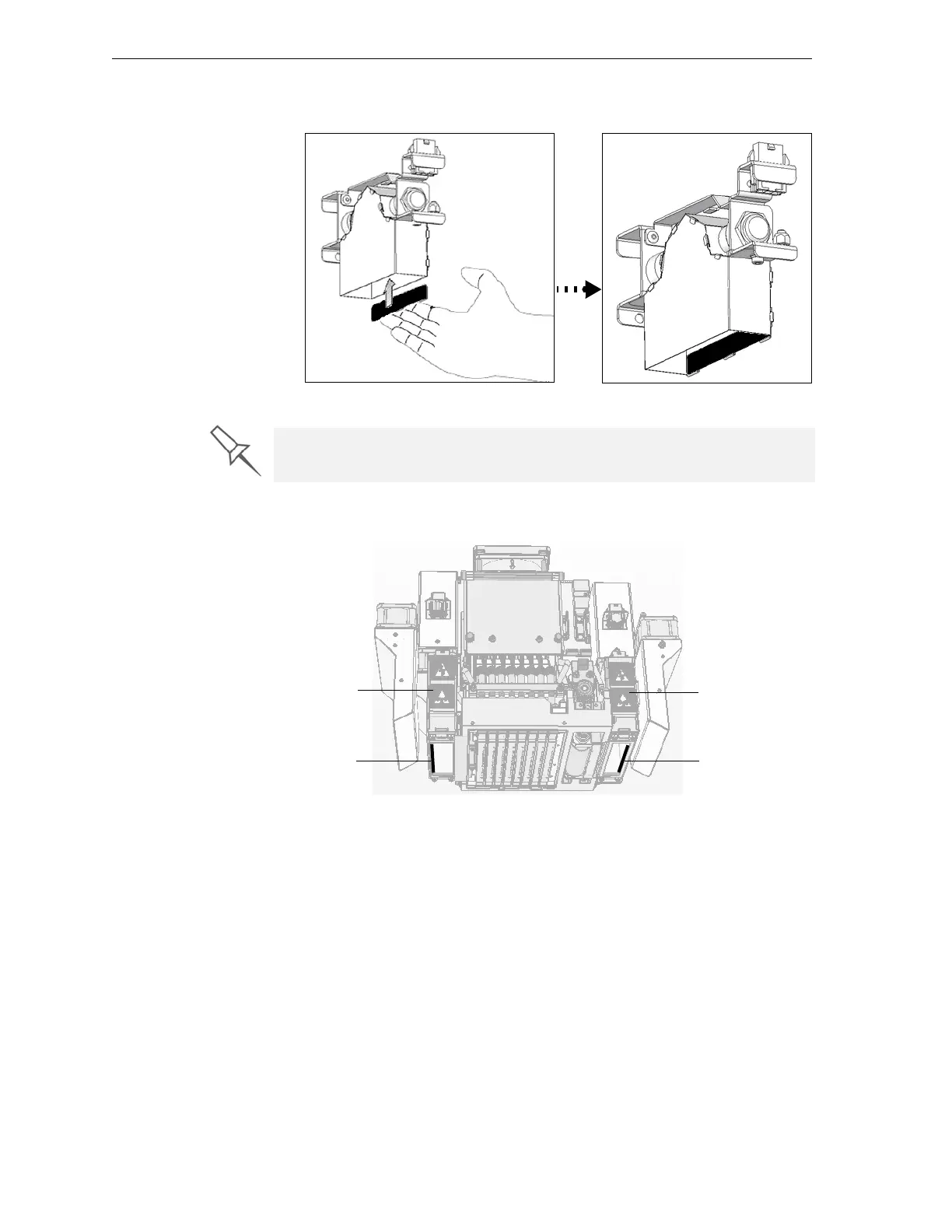

Figure 7-65: Fastening the black strip to the right UV lamp reflector
12. InsertthenewUVlamp/reflectorunitintothehousingnexttotheprint
block.
Figure 7-66: Print block and UV lamp assembly, showing correct placement of
black strip
Important: The black strip must always be on the side of the reflector
opposite the print block.
Black strip
UV lamp
assembly
Black strip
UV lamp
assembly
