Objet Eden500V - Page 93

DOC-00500 Rev. F 7–17
Eden500V/350V/350 User Guide
3. Followtheinstructionsonthewizardscreens,andselectthecheck
boxestoconfirmthat:
• youhavecheckedthatthetrayisempty.
• youhaveclosedthecover.

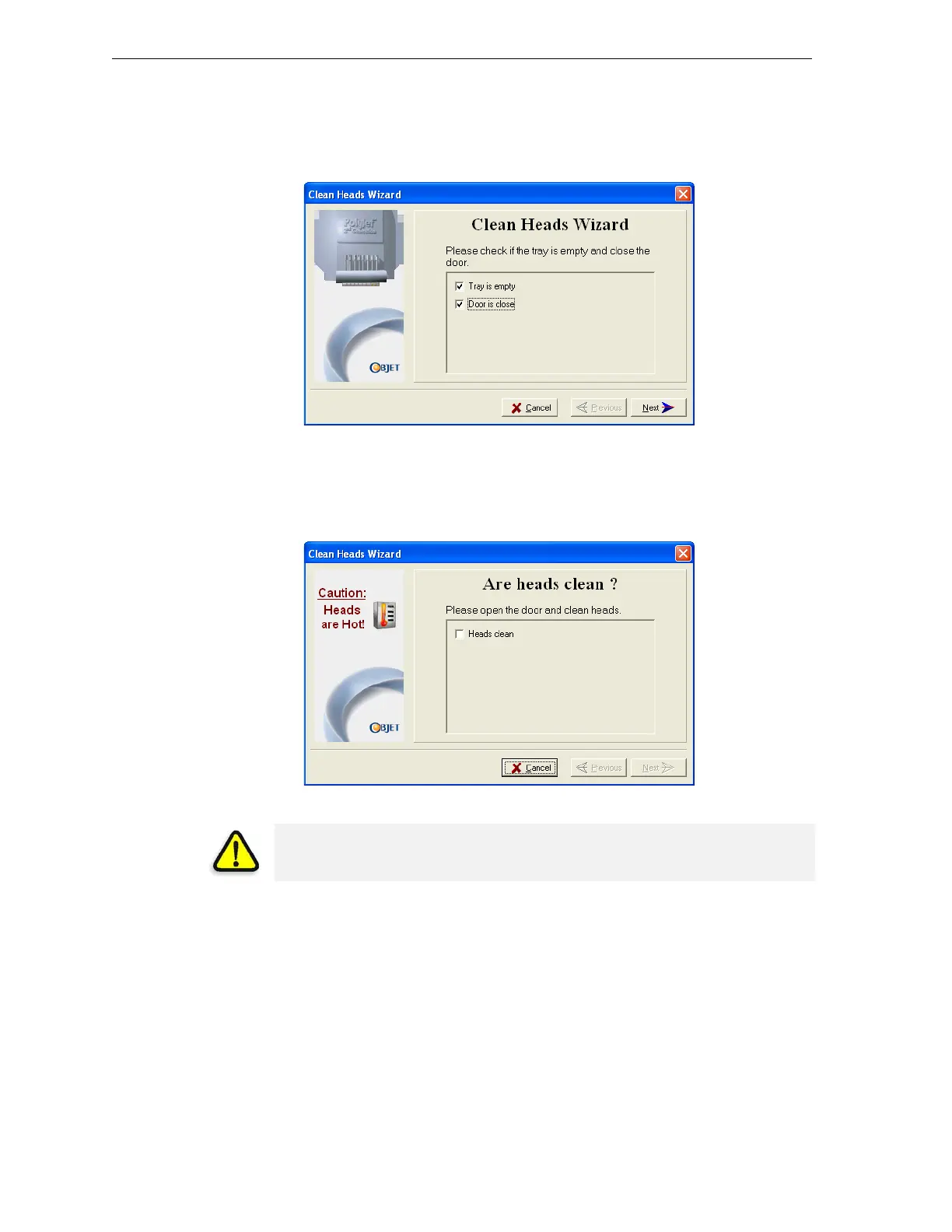

Figure 7-19: Head cleaning procedure—wizard screen
4. ClickNext.
Theprinterpreparesforyoutocleantheprintheads.
5. Whenthefollowingscreenappears,openthecover.
Figure 7-20: Head cleaning wizard—steps 5–10
6. Placethemirroronthebuildtray.
7. Putonthegloves.
8. Soakthecleaningclothwiththecleaningfluid.
9. Cleantheorificeplates,withaback‐and‐forthmotion(seefigure 7‐21).
Usethemirrortomakesurethatyouhaveremovedalloftheresidue
material.
WARNING: The print head orifice plates (bottom surface) may be hot.
Do not touch them with your bare hands, and proceed with caution.
