OMNI 4000/7000 Installation Guide – Rev H
The OMNICONNECT home page opens in the Home tab on the ribbon bar, which houses the
main components of the OMNICONNECT system for initial configuration and later operations
(Figure 4-4).

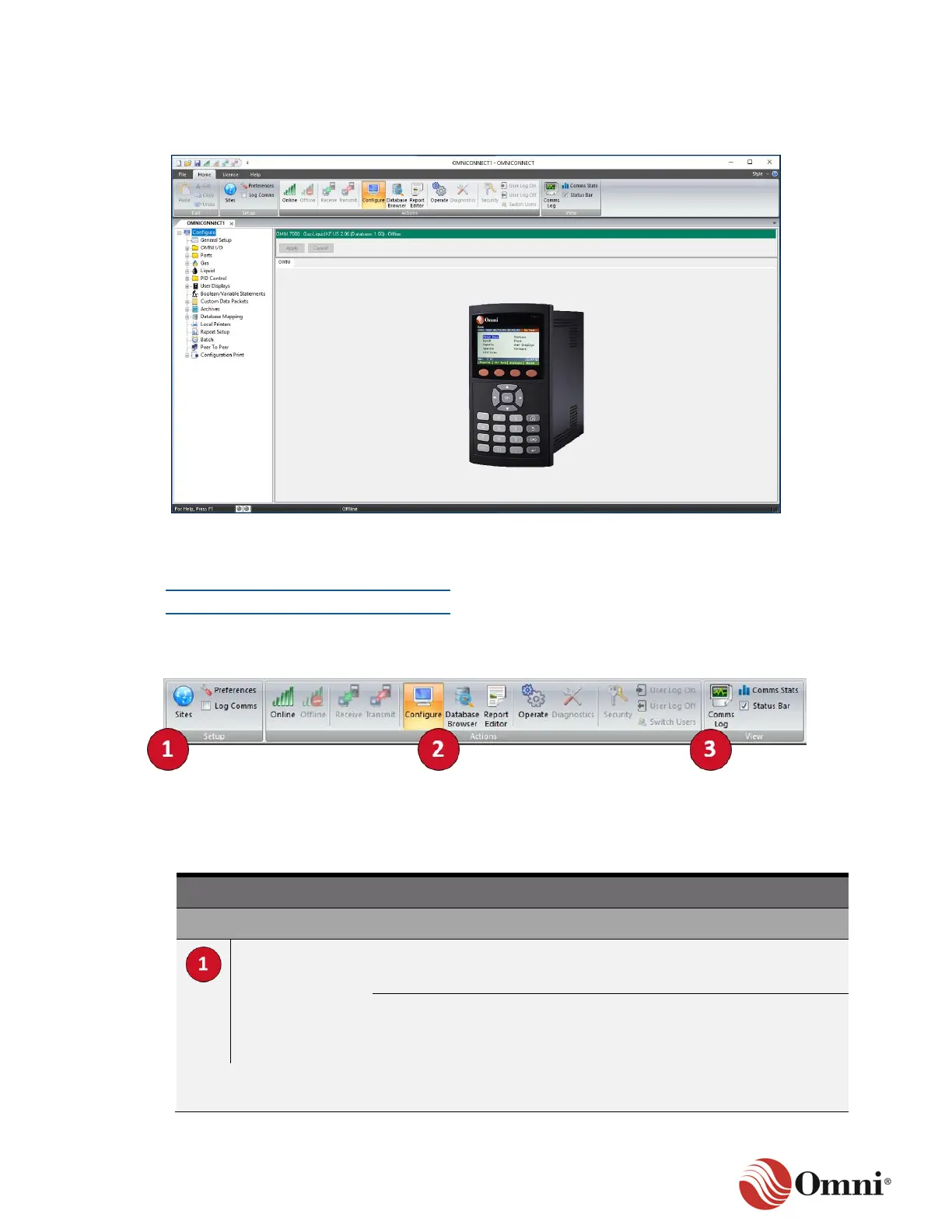

Figure 4-4: OMNICONNECT Home Page
Home
The three main components of the Home ribbon (Figure 4-5) are Setup, Actions and View
(Table 4-3).
Figure 4-5: OMNICONNECT Icons
Table 4-3: Home Ribbon Elements and Descriptions
Opens the Sites Setup window and is used to configure the
connection sites for communicating with the units.
Opens the Preferences window and is used to set the location in
your PC where OMNICONNECT will save the reports, archives
and other configurations that are set within the software.
Enables the logging of the Modbus communications between the
OMNICONNECT user interface and the flow computer screens.
