CJ2 CPU Unit Hardware User’s Manual
A-1 Specifications of Basic I/O Units
App
A-1-2 Basic I/O Units

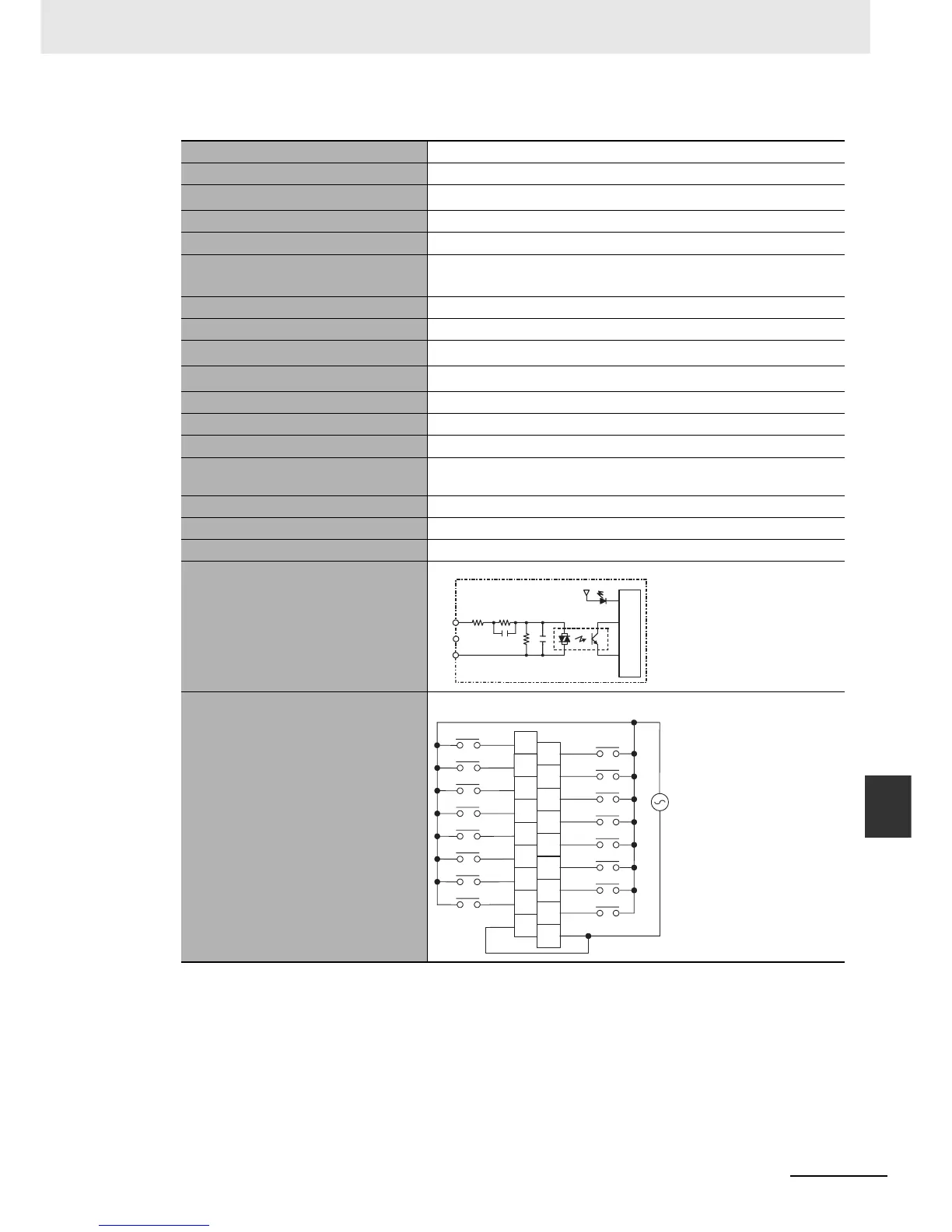

z CJ1W-IA111 AC Input Unit (100 VAC, 16 points)
*1 The Input ON and OFF response times for Basic I/O Units can be set to 0 ms, 0.5 ms, 1 ms, 2 ms, 4 ms, 8 ms,
16 ms, or 32 ms in the PLC Setup. When the response times have been set to 0 ms, the ON response time will
be 10 ms maximum and the OFF response time will be 40 ms maximum due to internal element delays.
*2 Use an input voltage of 90 VAC or higher when connecting 2-wire sensors.
*3 Terminal numbers A0 to A8 and B0 to B8 are used in this manual, but they are not printed on the Unit.
Name 16-point AC Input Unit with Terminal Block
Model CJ1W-IA111
Rated input voltage
100 to 120 VAC 50/60 Hz
*2
Rated Input Voltage Range 85 to 132 VAC
Input Impedance 14.5 kΩ (50 Hz), 12 kΩ (60 Hz)
Input Current
7 mA typical (at 100 VAC, 50 Hz),
8 mA typical (at 100 VAC, 60 Hz)
ON Voltage/ON Current 70 VAC min./4 mA min
OFF Voltage/OFF Current 20 VAC max./2 mA max
ON Response Time
18 ms max. (PLC Setup default setting: 8 ms)
*1
OFF Response Time
48 ms max. (PLC Setup default setting: 8 ms)
*1
Number of Circuits 16 (16 points/common, 1 circuit)
Number of Inputs ON Simultaneously 100% simultaneously ON (16 points/common)
Insulation Resistance 20 MΩ between external terminals and the GR terminal (500 VDC)
Dielectric Strength
2,000 VAC between the external terminals and the GR terminal for
1 minute at a leakage current of 10 mA max.
Internal Current Consumption 90 mA max.
Weight 130 g max.
Accessories None
Circuit Layout
Terminal Connections
COM
IN0
IN15
470 Ω 1 MΩ
0.22 µF
270 Ω
Input indicator
Internal circuits
to
Signal
name
A0
A1
A2
A3
A4
A5
A6
A7
A8
B0
B1
B2
B3
B4
B5
B6
B7
B8
COM
COM
IN0
IN2
IN4
IN6
IN8
IN10
IN12
IN14
IN1
IN3
IN5
IN7
IN9
IN11
IN13
IN15
100 to 120 VAC
Signal
name
Signal
name
Connec-
tor pin
*3

Omron CJ2 Specifications

General

Model	CJ2
Manufacturer	Omron
Type	Programmable Logic Controller (PLC)
CPU Units	Multiple models available (e.g., CJ2M, CJ2H)
Number of I/O Points	Up to 2, 560 points
Communication Ports	Ethernet/IP, EtherCAT, USB, Serial
Expansion	Yes, via I/O Units and Special I/O Units
I/O Control Method	Cyclic Scan, Interrupt
Programming Language	Ladder diagram, structured text, function block diagram, sequential function chart, instruction list
Built-in I/O	Available on some models (e.g., CJ2M)
Ethernet Port	Yes, 1 port (depending on CPU Unit)
Serial Ports	RS-232C, RS-422/485 (configurable)
USB Port	Yes (for programming and monitoring)
Operating Temperature	0°C to 55°C
Storage Temperature	-25 to 70°C
Humidity	10 to 95% RH (non-condensing)
Vibration Resistance	10 to 57 Hz, Amplitude: 0.075 mm, 57 to 150 Hz, Acceleration: 1 G, X, Y, and Z directions, 80 min each
Power Supply Voltage	24 VDC or 100 to 240 VAC (depending on CPU Unit)
