Appendices
A-14
CJ2 CPU Unit Hardware User’s Manual

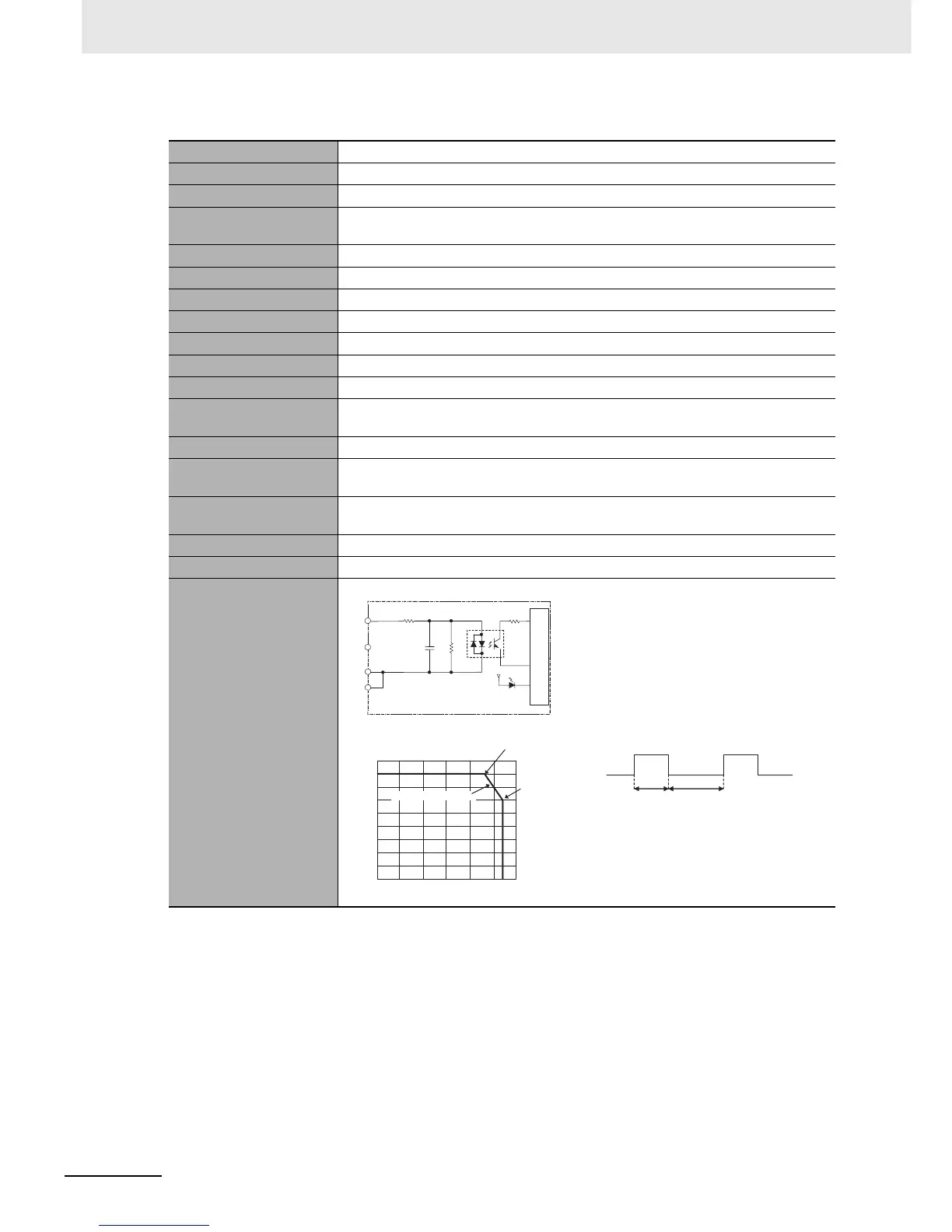

z CJ1W-INT01 Interrupt Input Unit (16 Points)
Name 16-point Interrupt Input Unit with Terminal Block
Model CJ1W-INT01
Rated Input Voltage 24 VDC
Rated Input Voltage
Range
20.4 to 26.4 VDC
Input Impedance 3.3 kΩ
Input Current 7 mA typical (at 24 VDC)
ON Voltage/ON Current 14.4 VDC min./3 mA min.
OFF Voltage/OFF Current 5 VDC max./1 mA max.
ON Response Time 0.05 ms max.
OFF Response Time 0.5 ms max.
Number of Circuits 16 (16 points/common, 1 circuit)
Number of Simulta-
neously ON Points
100% (16 points/common) simultaneously ON (24 VDC)
Insulation Resistance 20 MΩ between external terminals and GR terminal (at 100 VDC)
Dielectric Strength
1,000 VAC between external terminals and GR terminal for 1 minute at a leakage
current of 10 mA max.
Internal Current Con-
sumption
80 mA max.
Weight 110 g max.
Accessories None
Circuit Configuration
• Up to two Interrupt Input Units can be
mounted to the CPU Rack, but they
must be connected as one the five
Unit
*1
immediately next to the CPU
Unit. If an Interrupt Input Unit is con-
nected in any other position, an I/O
setting error will occur.
• Set the pulse width of signals input to
the Interrupt Input Unit so they satisfy
the following conditions.
*1 With the CJ2JH-CPU6@-EIP CPU
Units, the Unit must be mounted as
one of the four Units immediately
next to the CPU Unit.
IN0
IN15
COM
COM
Internal circuits
3.3 kΩ
1000 pF
470 Ω
to
Input indicator
Signal
name
18
16
14
12
10
8
6
4
2
0
0 10 20 30 40 50 60
Ambient Temperature
12 points at 55°C
Number of simultaneously ON points
(°C)
16 points at 45°C
Input voltage: 26.4 VDC
Temperature characteristics for
simultaneously ON points
ON
OFF
0.5 ms min.
0.05 ms min.
