Wiring and Connections Section 3-4
Conduits

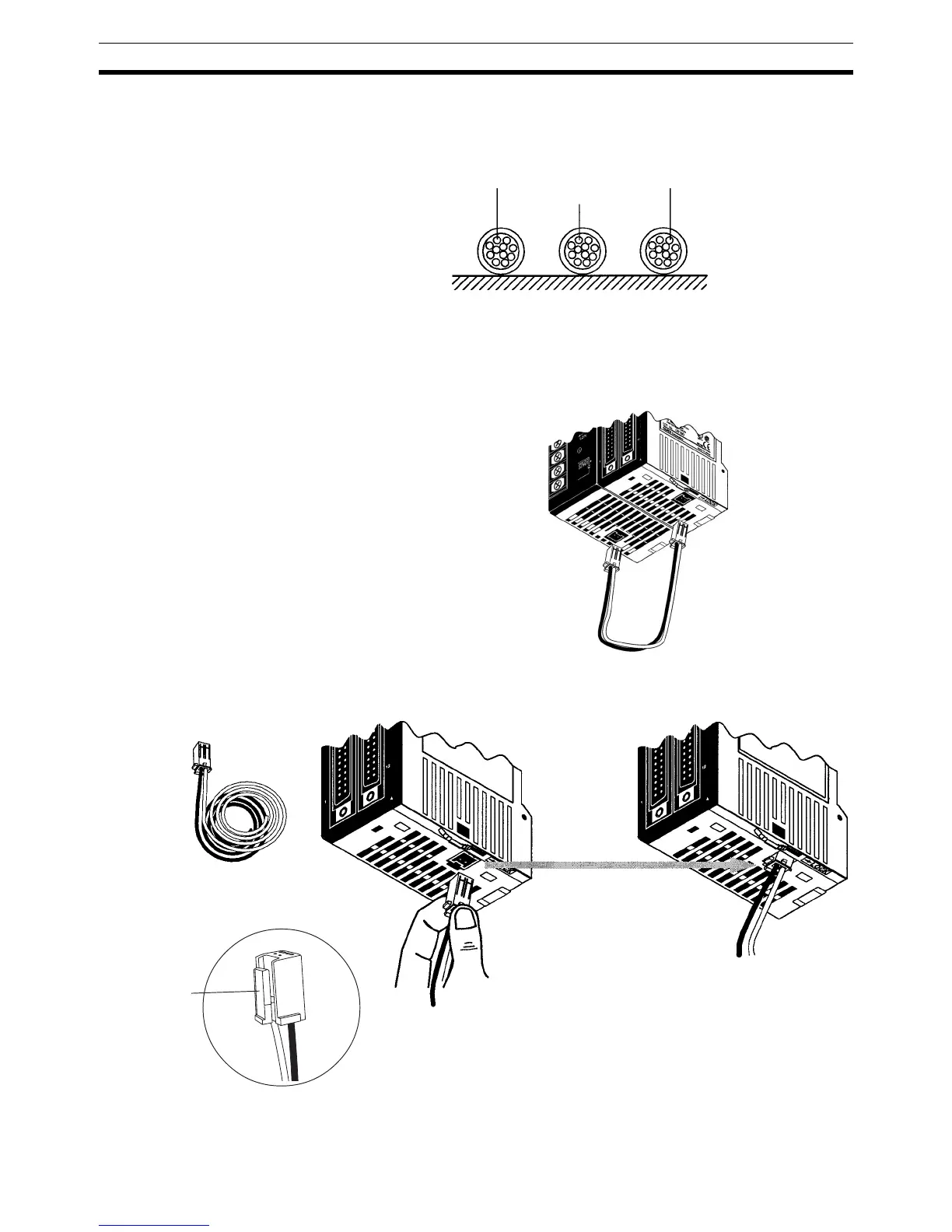

Separate the CPM2C I/O lines, power and control lines, and power cables, as
shown in the following diagram.
3-4-2 Power Supply Wiring
The following procedure explains how to connect the CPU Unit to the AC
Power Supply Unit (CPM2C-PA201) with the power supply connector
(included) to provide a 24-VDC power supply.
1,2,3... 1. Align the power supply connector with the socket on the bottom of the
CPM2C and insert the connector.
CPM2C I/O lines
Control cables and
CPM2C power lines
Power cables
Power supply cable
(included with the Power
Supply Unit)
Cable length: 23 cm
Red lead: +24 VDC
Black lead: 0 VDC
Power supply cable
(included with the CPU Unit)
Cable length: 100 cm
Lock lever
Power supply cable (included with CPU Unit)
Cable length: 100 cm
