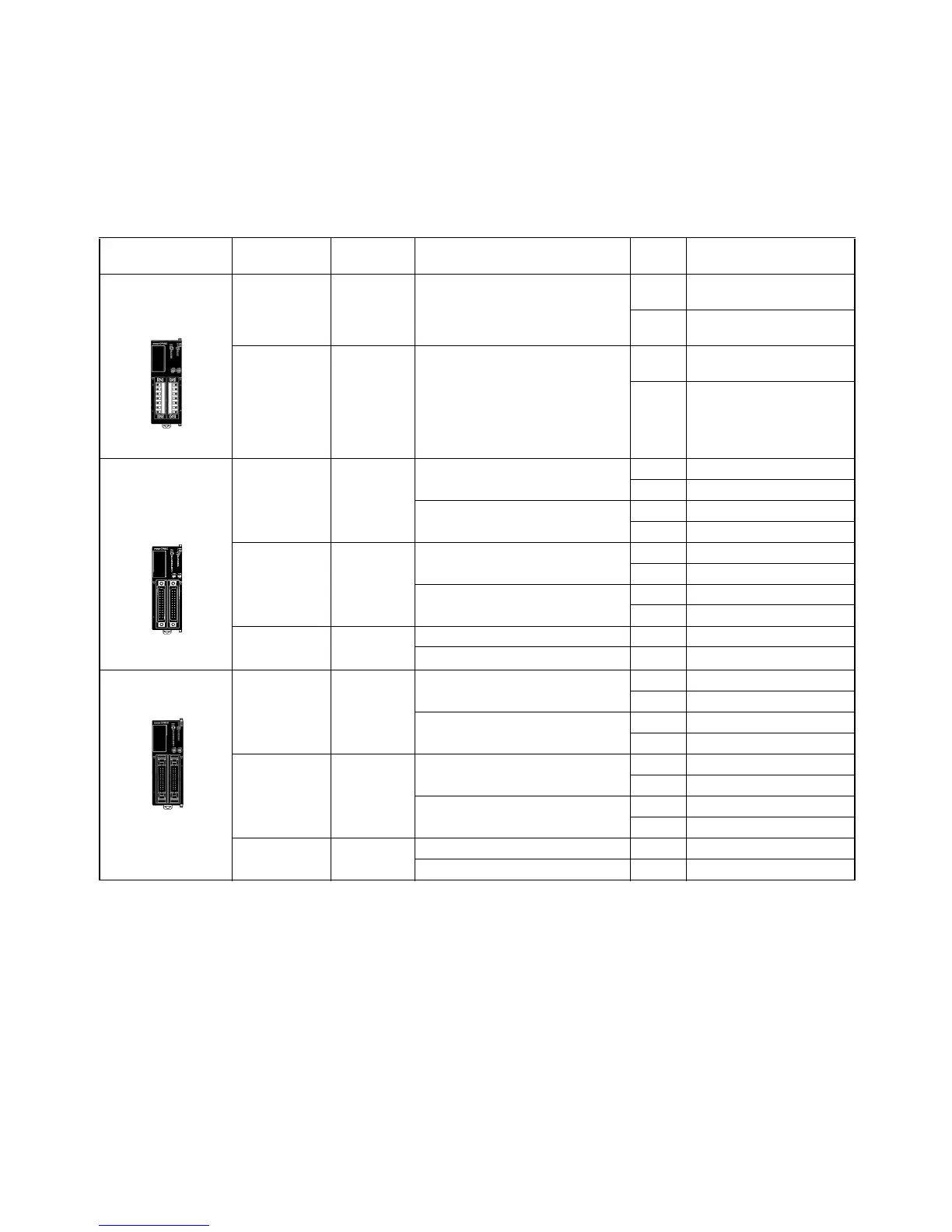

Appendix A
Standard Models
CPU Units
Classification and
Appearance
I/O capacity Inputs Outputs Clock Model
Units with Terminal
Blocks
10 I/O points 6 points
(24 VDC)
4 relay outputs No CPM2C-10CDR-D
Yes CPM2C-10C1DR-D
20 I/O points 12 points
(24 VDC)
8 relay outputs No CPM2C-20CDR-D
Yes CPM2C-20C1DR-D
Units with Fujitsu-
compatible Connec-
tors
10 I/O points 6 points
(24 VDC)
4 transistor outputs (sinking) No CPM2C-10CDTC-D
Yes CPM2C-10C1DTC-D
4 transistor outputs (sourcing) No CPM2C-10CDT1C-D
Yes CPM2C-10C1DT1C-D
20 I/O points 12 points
(24 VDC)
8 transistor outputs (sinking) No CPM2C-20CDTC-D
Yes CPM2C-20C1DTC-D
8 transistor outputs (sourcing) No CPM2C-20CDT1C-D
Yes CPM2C-20C1DT1C-D
32 I/O points 16 points
(24 VDC)
16 transistor outputs (sinking) No CPM2C-32CDTC-D
16 transistor outputs (sourcing) No CPM2C-32CDT1C-D
Units with MIL Con-
nectors
10 I/O points 6 points
(24 VDC)
4 transistor outputs (sinking) No CPM2C-10CDTM-D
Yes CPM2C-10C1DTM-D
4 transistor outputs (sourcing) No CPM2C-10CDT1M-D
Yes CPM2C-10C1DT1M-D
20 I/O points 12 points
(24 VDC)
8 transistor outputs (sinking) No CPM2C-20CDTM-D
Yes CPM2C-20C1DTM-D
8 transistor outputs (sourcing) No CPM2C-20CDT1M-D
Yes CPM2C-20C1DT1M-D
32 I/O points 16 points
(24 VDC)
16 transistor outputs (sinking) No CPM2C-32CDTM-D
16 transistor outputs (sourcing) No CPM2C-32CDT1M-D
