Omron CPM2C User Manual

265
Example Application Section 7-9
always allocate 9 words to the write data area even if the selected command
group limits the number of words actually written.
7-9-4 Ladder Program for DM Settings

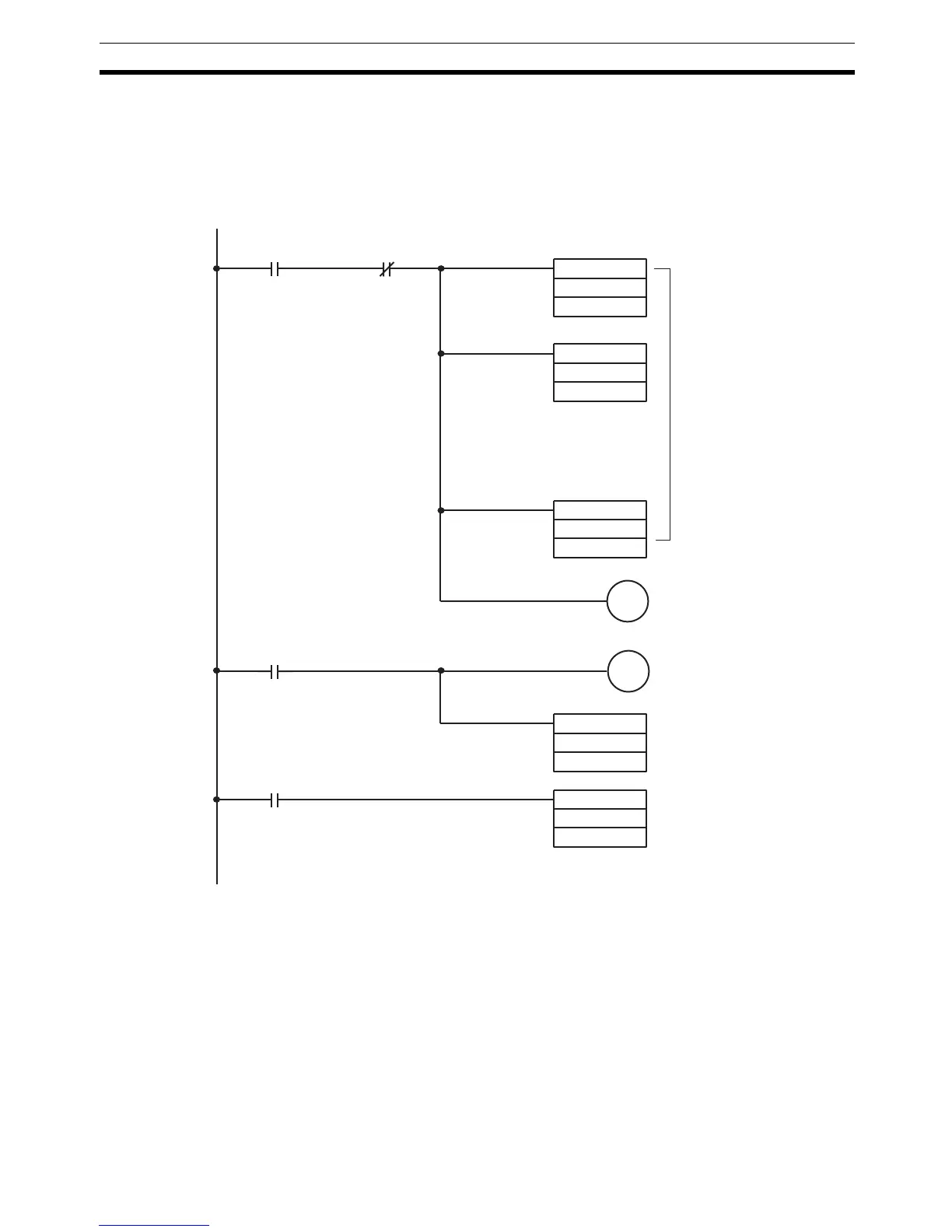

The following diagram shows an example program section used to set the
required DM values.
SR 25315
(First Cycle Flag)
HR 0000
Initial DM settings as shown
in DM settings tables
Initial settings completed flag
Sets Simple Communications
Unit to RUN.
This input condition
(IR 00005) turns ON the Unit
0 Write Command Bit.
MOV (21)
#0300
DM0000
MOV (21)
#4700
DM0003
MOV (21)
#00C8
DM0261
:
:
:
:
20000
HR000
0
MOV (21)
#0301
DM0000
MOV (21)
#C500
DM0003
20000
00005
