Omron CPM2C User Manual

186
Programming Example Section 4-3
4-3-2 Example Program

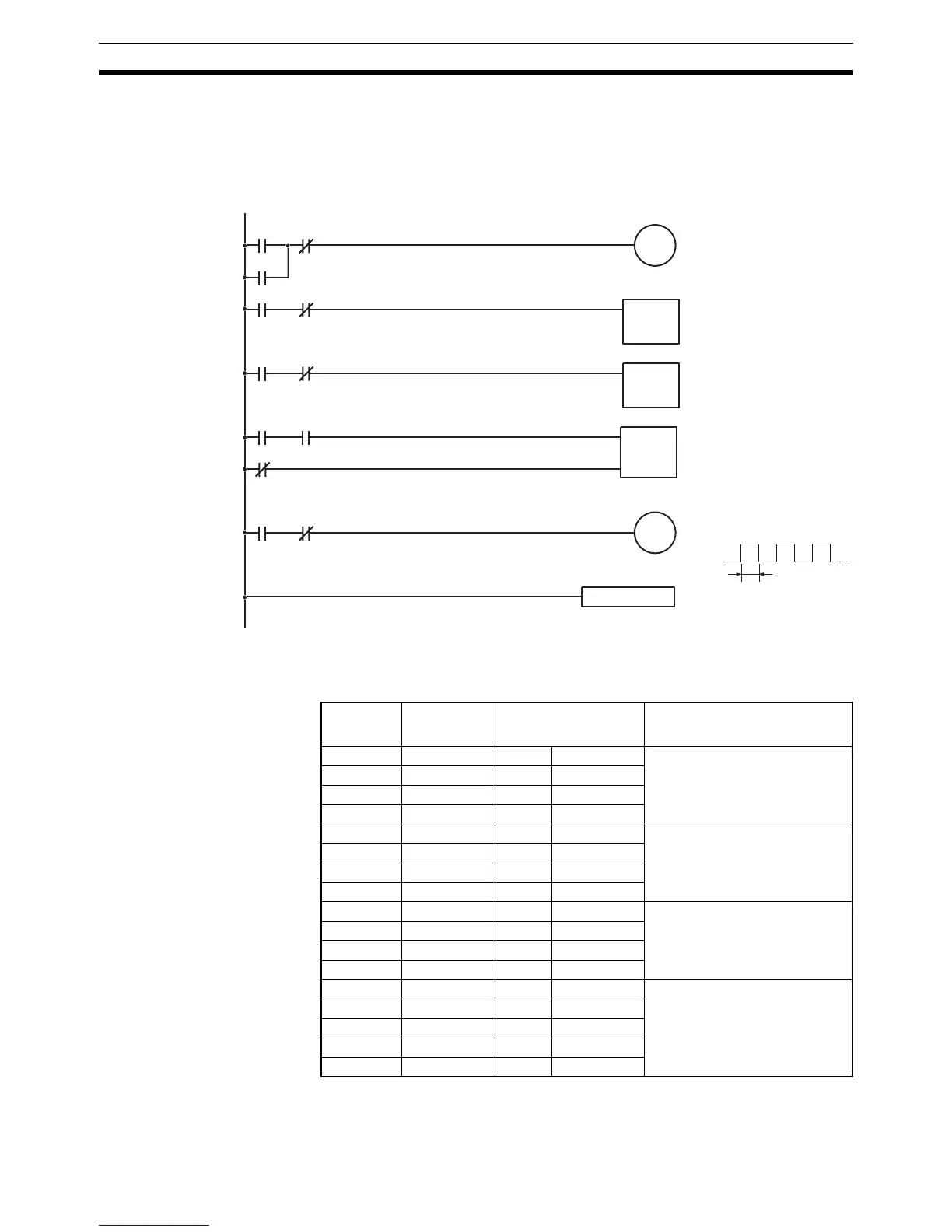

The following ladder program will be used to demonstrate how to write a pro-
gram with the Programming Console. This program makes output IR 01000
flicker ON/OFF (one second ON, one second OFF) ten times after input
IR 00000 is turned ON.
The mnemonic list for the example program is shown in the following table.
The steps required to enter this program from a Programming Console are
described in
4-3-3 Programming Procedures.
Count input
Reset input
20000
END(01)
C00000000
20000
01000
T00120000
00000
00004
00007
00010
00014
00017
1S
ON
OFF
Flicker output (10 counts)
Self-holding bit
1-second timer
2-second timer
10-count counter
TIM 001
#0010
CP
R
CNT 000
#0010
T00220000
TIM 002
#0020
T00220000
T00120000
20000
Start input
Address Instruction Data Programming example
procedures in
4-3-3 Programming
Procedures
00000 LD 00000 (1) Self-holding bit
00001 OR 20000
00002 AND NOT CNT 000
00003 OUT 20000
00004 LD 20000 (2) 1-second timer
00005 AND NOT TIM 002
00006 TIM 001
# 0010
00007 LD 20000 (3) 2-second timer
00008 AND NOT TIM 002
00009 TIM 002
# 0020
00010 LD 20000 (4) 10-count counter
00011 AND TIM 001
00012 LD NOT 20000
00013 CNT 000
# 0010
