Wiring and Connections Section 3-4
3-4-6 Using I/O Terminals and Relay Terminals

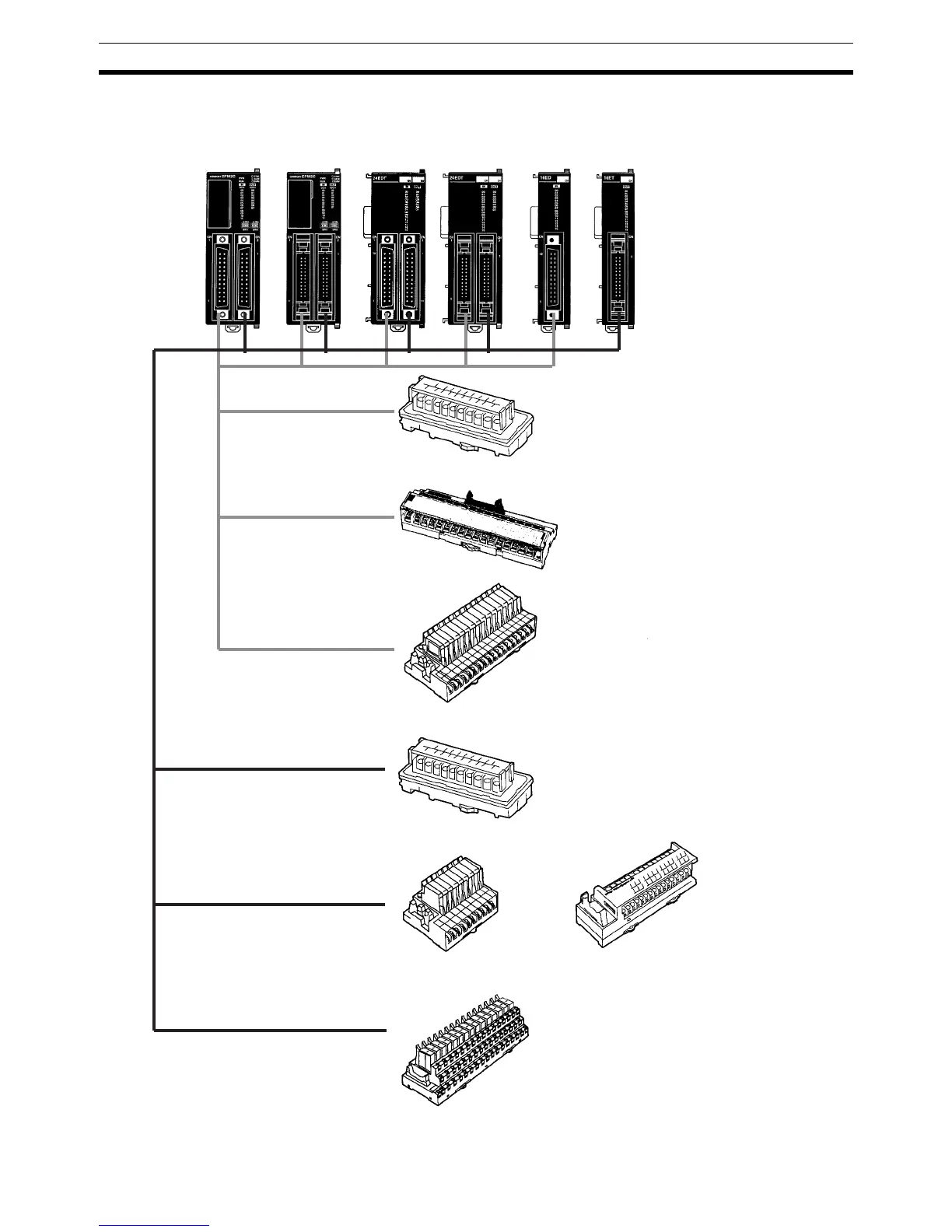

We recommend using the following I/O Terminals and Relay Terminals to wire
devices to the CPM2C’s I/O connector.
Cables (See note.)
Fujitsu-compatible connectors:
XW2Z-@@@A, G79-@@@C
MIL connectors:
G79-O@@C
Terminal Blocks
XW2B-20G4 (M3 screws)
XW2B-20G5 (M3.5 screws)
XW2D-20G6
Cables (See note.)
Fujitsu-compatible connectors:
XW2Z-@@@A
MIL connectors:
G79-O@@C
Relay Terminals
G7TC-ID16
G7TC-IA16
Cables (See note.)
Fujitsu-compatible connectors:
XW2Z-@@@A
G79-@@@C
MIL connectors:
G79-O@@C
Terminal Blocks
XW2B-20G4 (M3 screws)
XW2B-20G5 (M3.5 screws)
XW2D-20G6
Cables
Fujitsu-compatible connectors:
G79-@@@C
MIL connectors:
G79-O@@C
Relay Terminals
G7OD-OC16
G7OD-OC16-1
G7OD-SOC16
G7OD-SOC16-1
G7OD-FOM16
G7OD-FOM16-1
Cables
Fujitsu-compatible connectors:
G79-@@@C
MIL connectors:
G79-O@@C
Relay Terminals
G7TC-OC08
G7TC-OC16
G7TC-OC16-1
Relay Terminals
Note The allowable current for
the XW2Z-@@@A is 1 A.
Do not allow the current on
the common terminal to
exceed 1 A.
Cables
Fujitsu-compatible connectors:
G79-@@@C
MIL connectors:
G79-O@@C
Terminal Blocks
XW2C-20G5-IN16 (M3.5 screws)
XW2E-20G5-IN16
Outputs
Inputs
G70A-ZOC16-4
G79-I@@C (G70A-ZOC16-9)
(G70A-ZOC16-5)
(G70A-ZOC16-3)
G70A-ZOC16-3
