Wiring and Connections Section 3-4

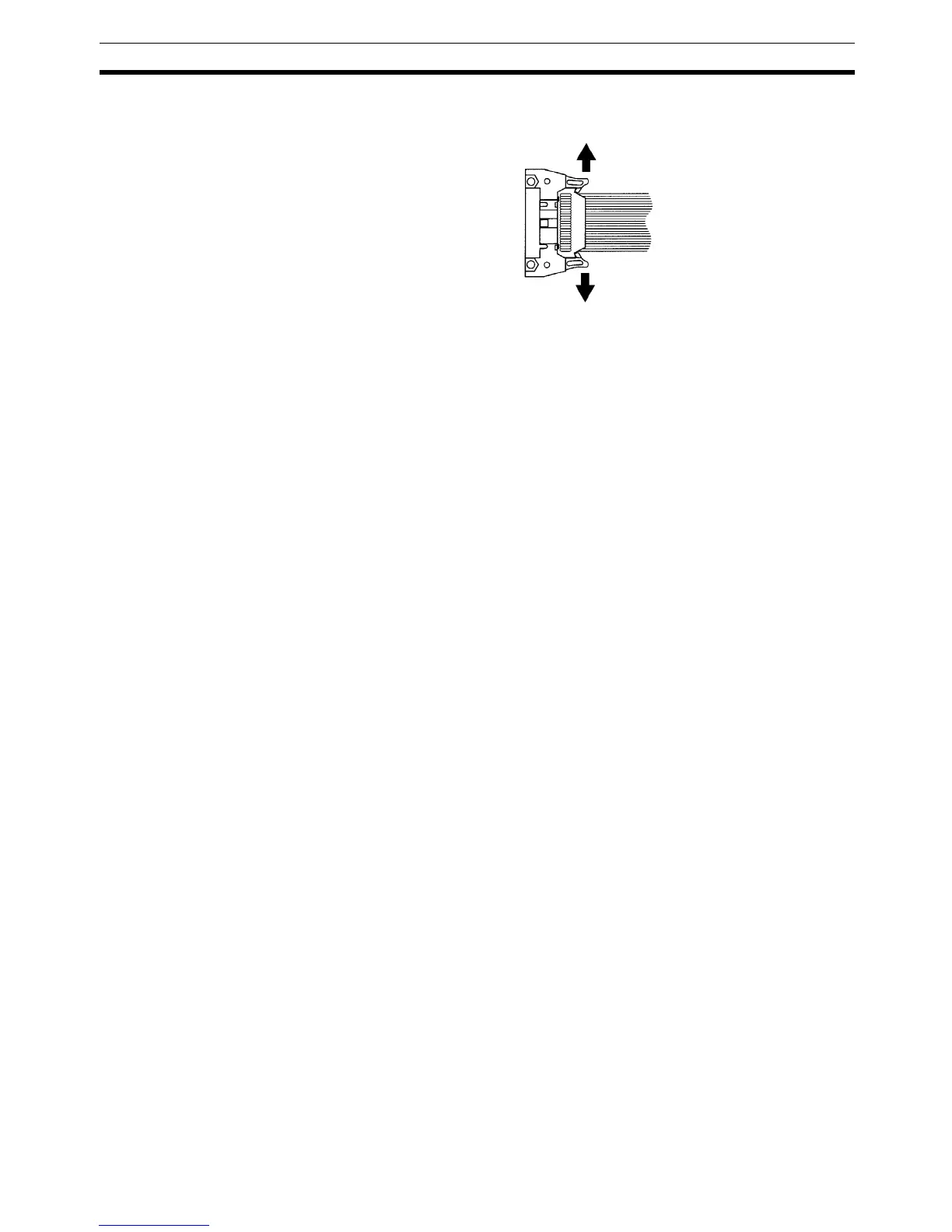

3. To remove the cable, pull the lock lever out to the sides to release the lock
mechanism and pull out the connector.
Note Be sure to make connections to terminal blocks and connectors with the cor-
rect direction and polarity. Output transistor fuses may burn out if power is
supplied to I/O circuits with the I/O connector connected in reverse.
