Unit Components Section 2-2
2-2-9 AC Power Supply Unit
1,2,3... 1. Terminal Block
Terminals for AC power supply input and service power supply (24 VDC).
2. LED Indicator
Lights when power is supplied.
3. CPU Unit Power Supply Connector
Use the connecting cable provided as an accessory to connect this con-
nector to the power supply connector on the CPU Unit (24 VDC).
Note The ratings for the CPM2C-PA201 AC Power Supply Unit are 100 to
240 VAC input; 24 VDC/600 mA output. The maximum current that
can be supplied via the CPU Unit power supply connector and the
service power supply terminals on the terminal block is 600 mA.

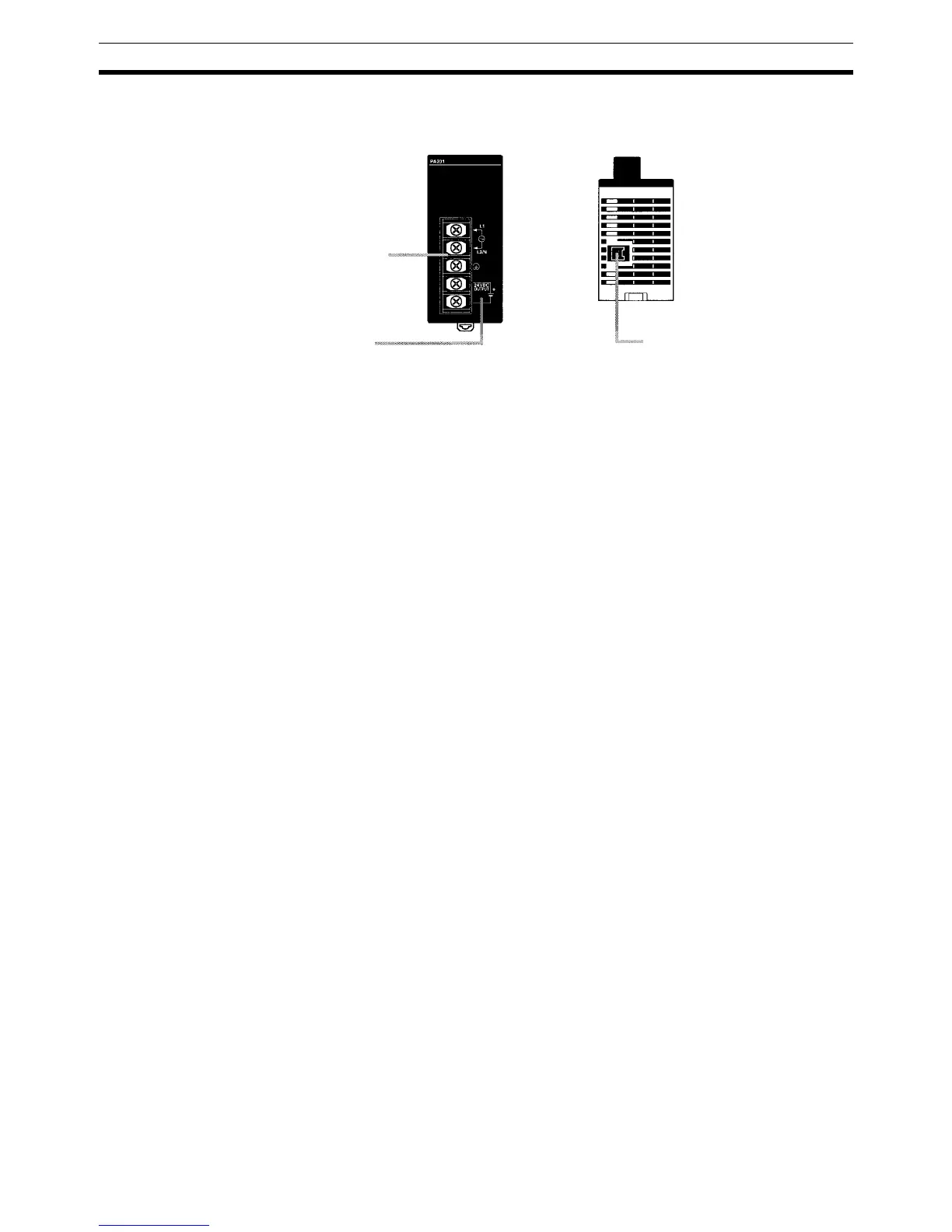

Front View Bottom Side
1. Terminal block
2. LED indicator
3. CPU Unit power supply connector
