Programming Console Operations Section 4-2
4-2-8 Setting and Reading a Program Memory Address and Monitoring
I/O Bit Status
This operation is used to display the specified program memory address and
is possible in any mode. In the RUN or MONITOR mode, the I/O bit status of
bits in the program will be displayed.
When inputting a program for the first time, it is generally written to Program
Memory starting from address 000. Because this address appears when the
display is cleared, it is not necessary to specify it.
When inputting a program starting from other than 000 or to read or modify a
program that already exists in memory, the desired address must be desig-
nated.

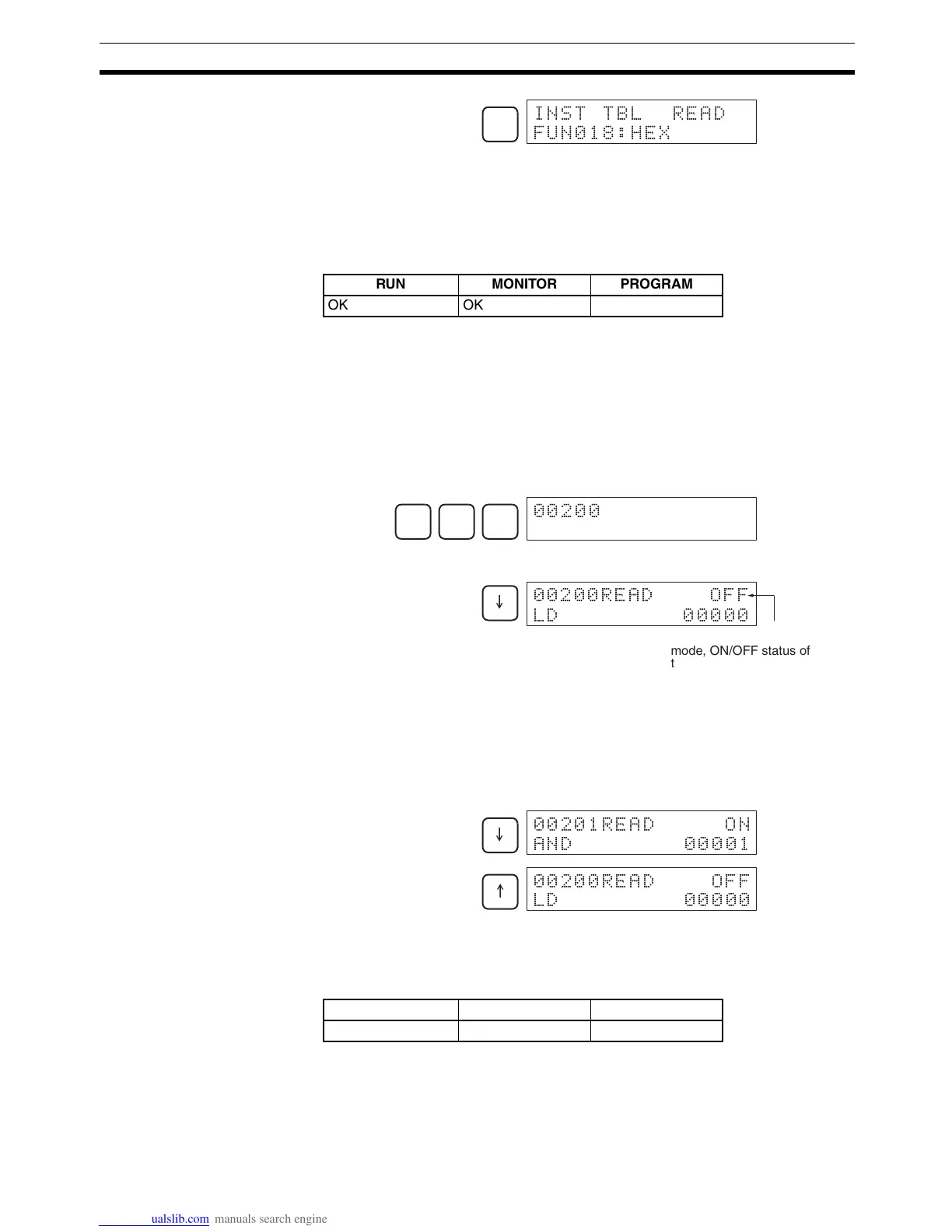

1,2,3... 1. Press the CLR Key to bring up the initial display.
2. Input the desired address. It is not necessary to input leading zeroes.
3. Press the Down Arrow Key.
Pressing the MONTR Key will change to the I/O monitor display. Bits can
be force-set or force-reset from the I/O monitor display in MONITOR or
PROGRAM mode.
Note The ON/OFF status of any displayed bit will be shown if the PC is in
RUN or MONITOR mode.
4. Press the Up and Down Arrow Keys to scroll through the program.
4-2-9 Entering or Editing Programs
This operation is used enter or edit programs. It is possible in PROGRAM
mode only.
The same procedure is used to either input a program for the first time or to
change a program that already exists. In either case, the current contents of
Program Memory is overwritten.
WRITE
INST TBL READ
FUN018:HEX
RUN MONITOR PROGRAM
OK OK OK
C
2
A
0
A
0
E
00200READ OFF
LD 00000
In the RUN or MONITOR
mode, ON/OFF status of
the bit will be displayed.
E
00201READ ON
AND 00001
j
00200READ OFF
LD 00000
RUN MONITOR PROGRAM
No No OK
