10
System Configurations Section 1-2
Note The function of the SW2 is different from that described in this manual for all
Units marked with an asterisk in the above table with lot numbers of 3180O
(August 2000) or earlier. Refer to
1-7 Changes in SW2 for details.

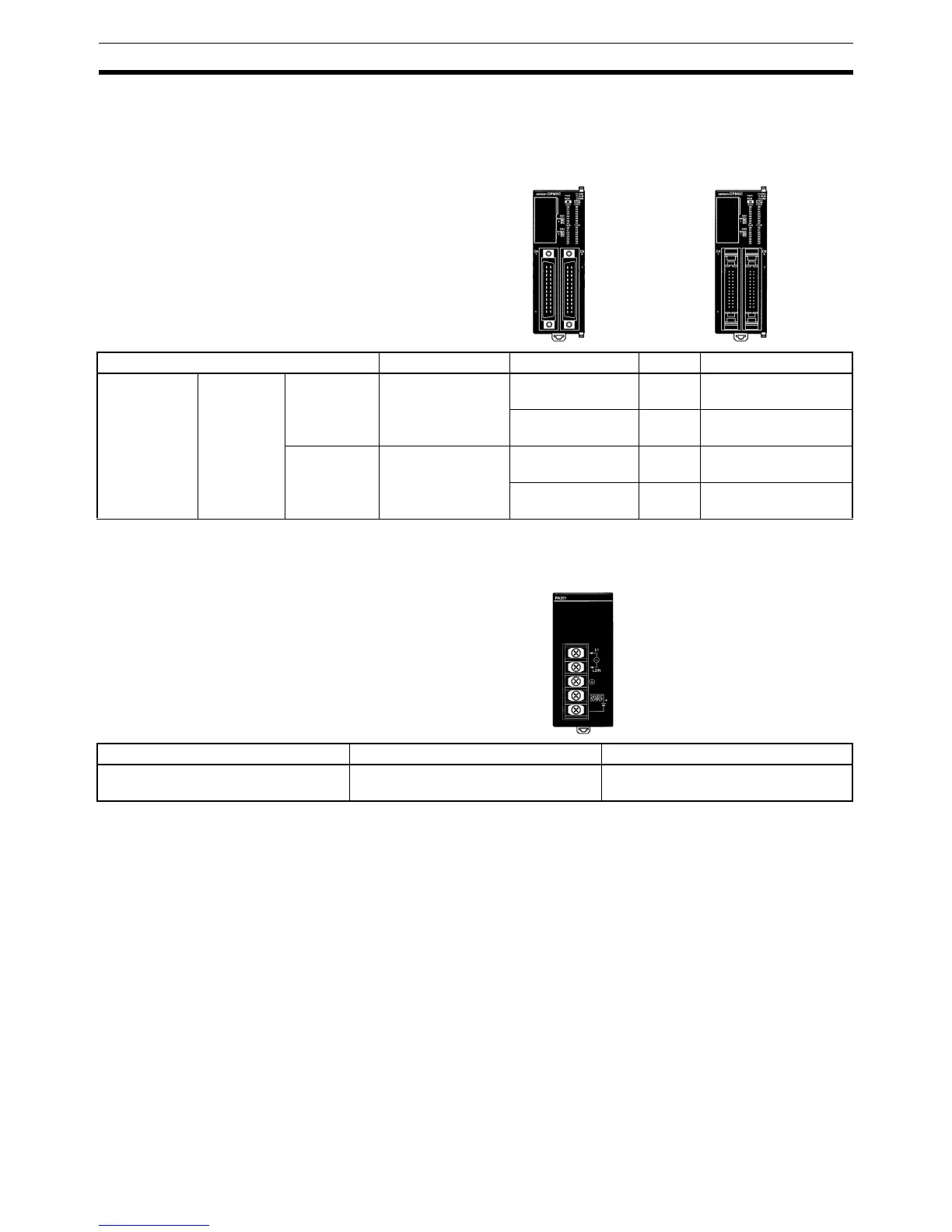

CPU Units with 32 I/O Points
1-2-2 Power Supply Unit
1-2-3 CPU Unit, Expansion Units, and Expansion I/O Units
A series of up to 5 Expansion I/O Units or Expansion Units can be connected
to the expansion I/O connector on the CPU Unit.
CPU Unit with
Transistor Outputs via
Fujitsu-compatible
Connector
CPU Unit with
Transistor Outputs
via MIL Connector
CPU Unit Inputs Outputs Clock Model
32 I/O points
(16 inputs,
16 outputs)
I/O
connector
Fujitsu-
compatible
connector
16 inputs (24 VDC) 16 transistor out-
puts (sinking)
No CPM2C-32CDTC-D
16 transistor out-
puts (sourcing)
No CPM2C-32CDT1C-D
MIL
connector
16 inputs (24 VDC) 16 transistor out-
puts (sinking)
No CPM2C-32CDTM-D
16 transistor out-
puts (sourcing)
No CPM2C-32CDT1M-D
AC Power Supply Unit
Name Ratings Model
AC Power Supply Unit 100 to 240 VAC input
24 VDC, 600 mA output
CPM2C-PA201
