Wiring and Connections Section 3-4

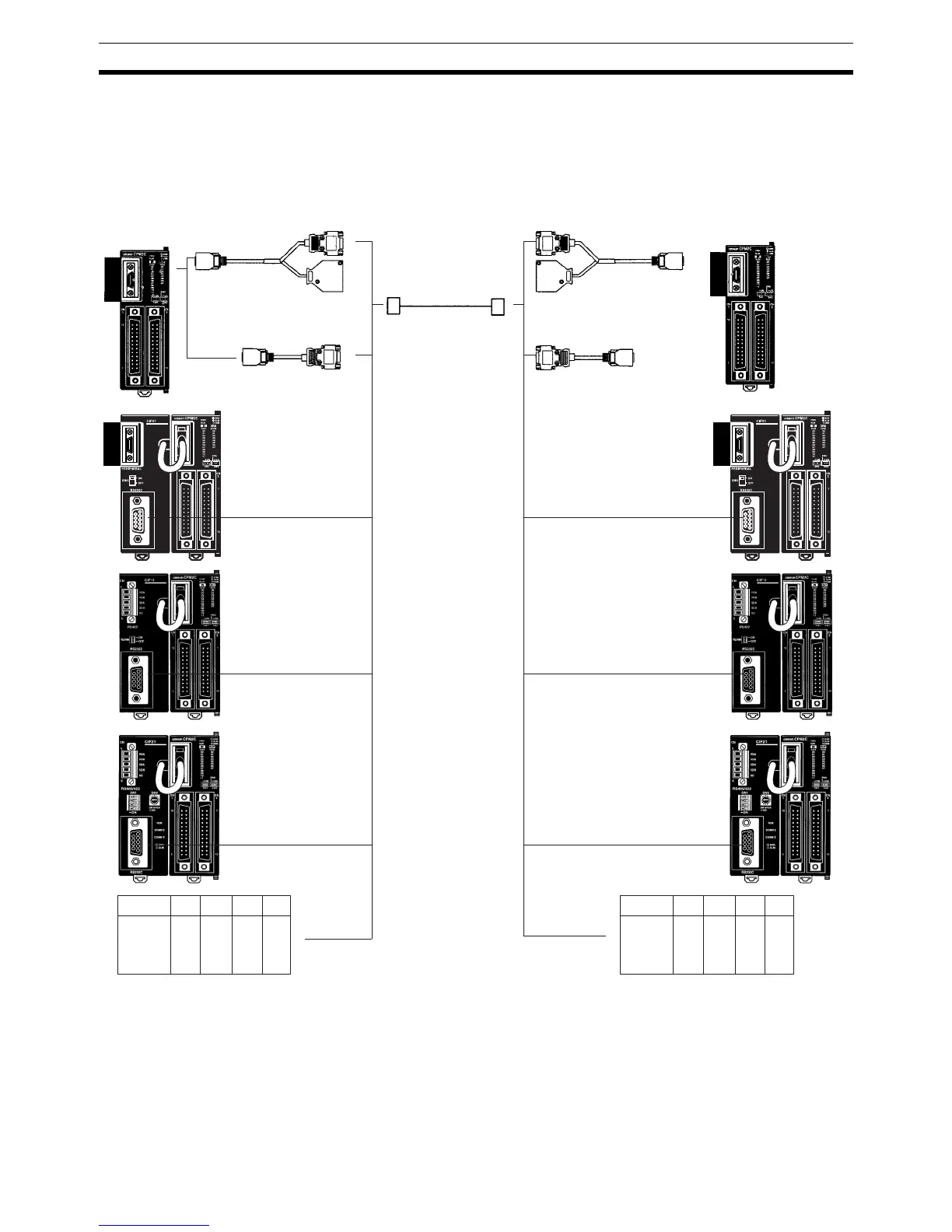

3-4-13 One-to-one PC Link Connections
A CPM2C can be linked to another CPM2C, a CQM1, CPM1, CPM1A,
CPM2A, SRM1(-V2), C200HS, or C200HX/HE/HG PC. The PC must be con-
nected using the communications port as an RS-232C port (not as a periph-
eral port).
Note A 1:1 link cannot be used for a CPM2C-CN111 connection to the peripheral
port on the CPM2C-CIF01-V1 or a CS1W-CN118 connection to the RS-232C
port on the CPM2C-CIF01-V1.
CPM2C-CN111
(0.1 m)
CS1W-CN118
(0.1 m)
CS1W-CN118 (0.1 m)
1:1 Link Master
CPM2C CPU Unit
Connecting Cable
XW2Z-200T (2 m)
XW2Z-500T (5 m)
RS-232C port (D-sub 9-pin)
CPM2C-CN111 (0.1 m)
RS-232C port (D-sub 9-pin)
1:1 Link Slave
CPM2C CPU Unit
OMRON PC (CQM1H, CQM1, CPM1,
CPM1A, CPM2A, CPM2C-S, SRM1(-V2),
C200HS, or C200HX/HE/HG)
OMRON PC (CQM1H, CQM1, CPM1,
CPM1A, CPM2A, CPM2C-S, SRM1(-V2),
C200HS, or C200HX/HE/HG)
CPM2C-CIF01-V1
CPM2C-CIF11
CPM2C-CIF01-V1
CPM2C-CIF11
CPM2C-CIF21
CPM2C-CIF21
