Omron CPM2C User Manual

9
System Configurations Section 1-2

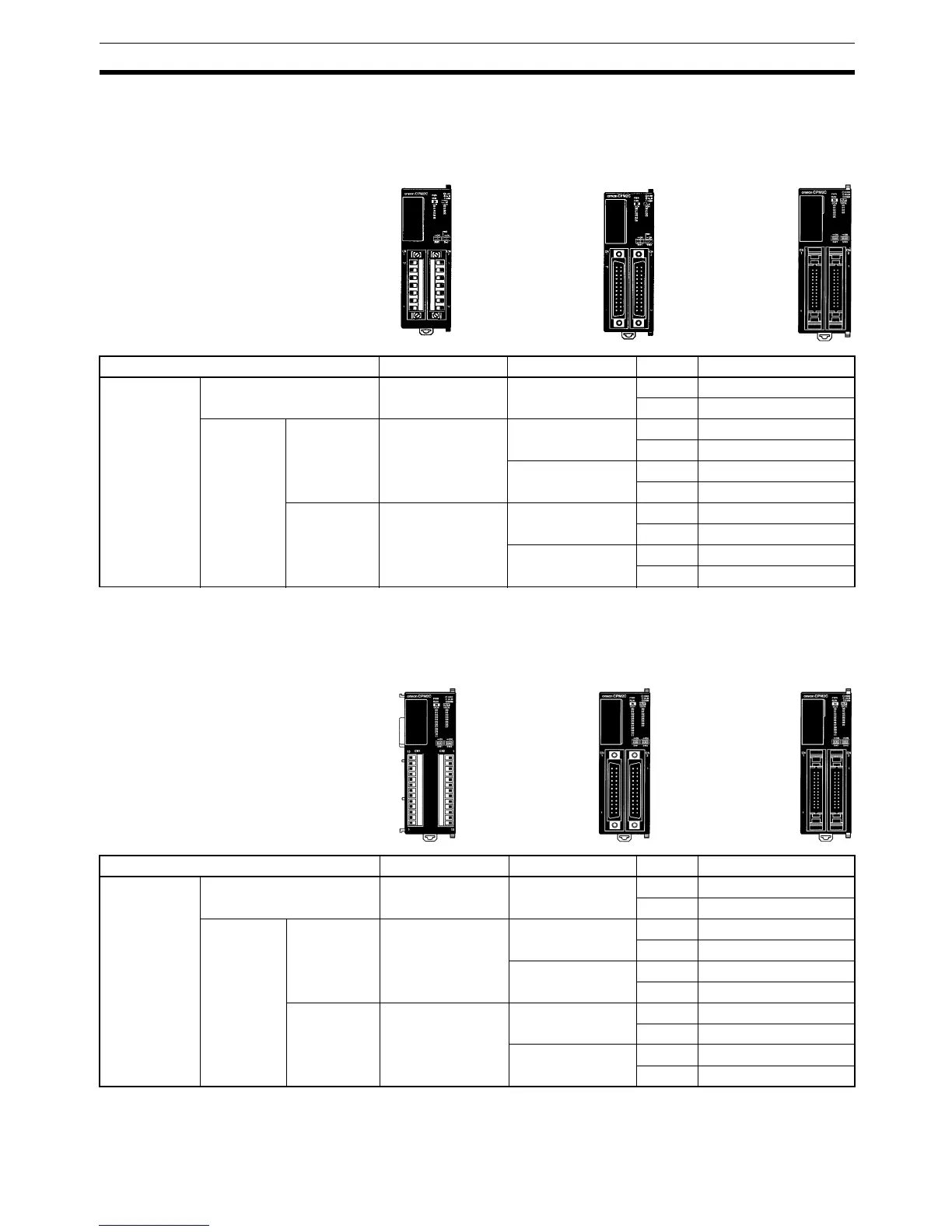

1-2 System Configurations
1-2-1 CPU Units
CPU Units with 10 I/O Points
Note The function of the SW2 is different from that described in this manual for all
Units marked with an asterisk in the above table with lot numbers of 3180O
(August 2000) or earlier. Refer to
1-7 Changes in SW2 for details.
CPU Units with 20 I/O Points
CPU Unit Inputs Outputs Clock Model
10 I/O points
(6 inputs,
4 outputs)
I/O terminal block 6 inputs (24 VDC) 4 relay outputs No CPM2C-10CDR-D*
Yes CPM2C-10C1DR-D*
I/O
connector
Fujitsu-
compatible
connector
6 inputs (24 VDC) 4 transistor outputs
(sinking)
No CPM2C-10CDTC-D*
Yes CPM2C-10C1DTC-D*
4 transistor outputs
(sourcing)
No CPM2C-10CDT1C-D*
Yes CPM2C-10C1DT1C-D*
MIL
connector
6 inputs (24 VDC) 4 transistor outputs
(sinking)
No CPM2C-10CDTM-D
Yes CPM2C-10C1DTM-D
4 transistor outputs
(sourcing)
No CPM2C-10CDT1M-D
Yes CPM2C-10C1DT1M-D
CPU Unit Inputs Outputs Clock Model
20 I/O points
(12 inputs,
8 outputs)
I/O terminal block 12 inputs (24 VDC) 8 relay outputs No CPM2C-20CDR-D
Yes CPM2C-20C1DR-D
I/O
connector
Fujitsu-
compatible
connector
12 inputs (24 VDC) 8 transistor outputs
(sinking)
No CPM2C-20CDTC-D*
Yes CPM2C-20C1DTC-D*
8 transistor outputs
(sourcing)
No CPM2C-20CDT1C-D*
Yes CPM2C-20C1DT1C-D*
MIL
connector
12 inputs (24 VDC) 8 transistor outputs
(sinking)
No CPM2C-20CDTM-D
Yes CPM2C-20C1DTM-D
8 transistor outputs
(sourcing)
No CPM2C-20CDT1M-D
Yes CPM2C-20C1DT1M-D
CPU Unit with
Relay Outputs via
Terminal Block
CPU Unit with
Transistor Outputs via
Fujitsu-compatible
Connector
CPU Unit with
Transistor Outputs
via MIL Connector
CPU Unit with
Relay Outputs via
Terminal Block
CPU Unit with
Transistor Outputs via
Fujitsu-compatible
Connector
CPU Unit with
Transistor Outputs
via MIL Connector
