Omron CPM2C User Manual

170
Programming Console Operations Section 4-2

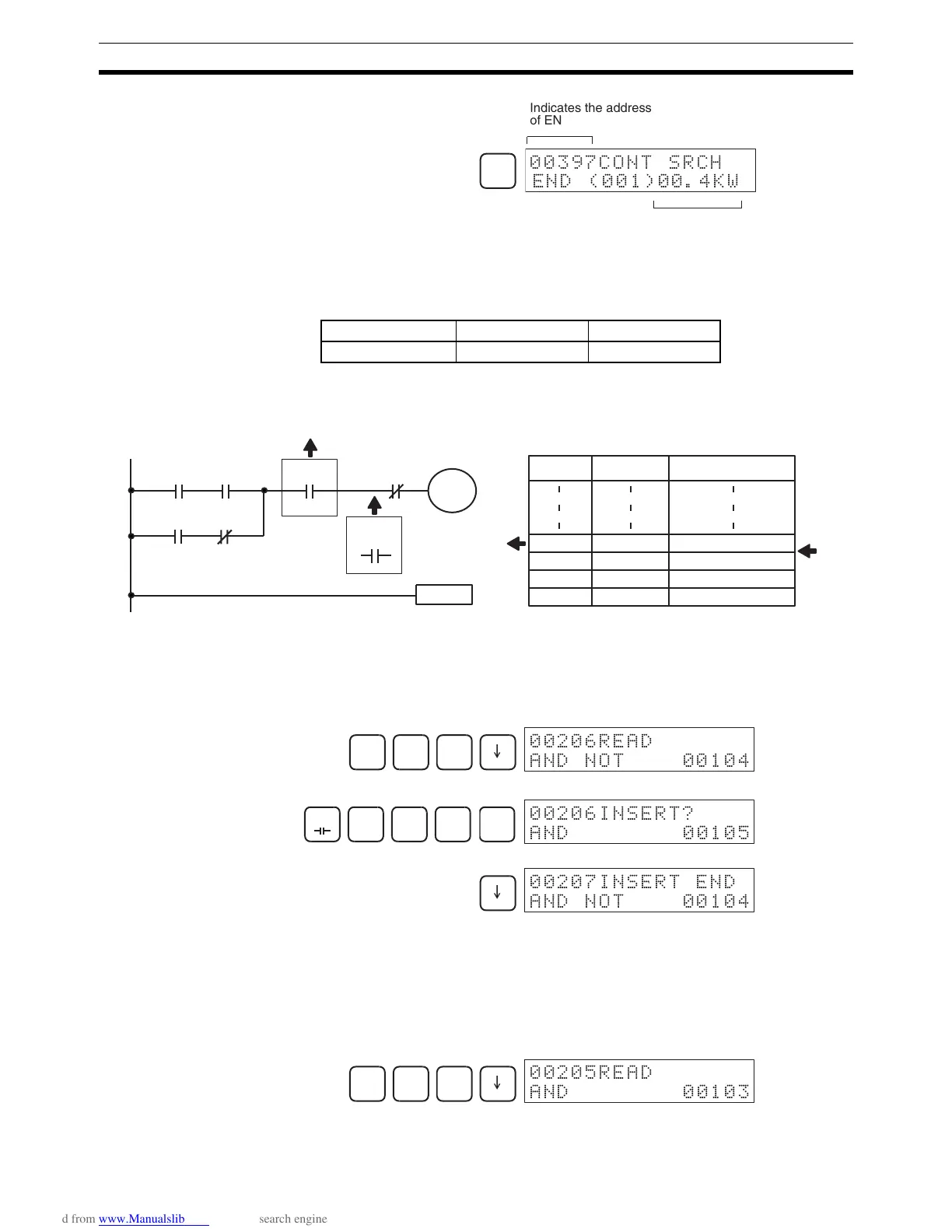

4-2-12 Inserting and Deleting Instructions
This operation is used to insert or delete instructions from the program. It is
possible in PROGRAM mode only.
To demonstrate this operation, an IR 00105 NO condition will be inserted at
program address 00206 and an IR 00103 NO condition deleted from address
00205, as shown in the following diagram.
Insertion Follow the procedure below to insert the IR 00105 NO condition at address
00206.
1,2,3... 1. Press the CLR Key to bring up the initial display.
2. Input the address where the NO condition will be inserted and press the
Down Arrow Key. It is not necessary to input leading zeroes.
3. Input the new instruction and press the INS Key.
4. Press the Down Arrow Key to insert the new instruction.
Note For instructions that require more operands (such as set values), in-
put the operands and then press the WRITE Key.
Deletion Follow the procedure below to delete the IR 00103 NO condition at address
00205.
1,2,3... 1. Press the CLR Key to bring up the initial display.
2. Input the address where the NO condition will be deleted and press the
Down Arrow Key. It is not necessary to input leading zeroes.
3. Press the DEL Key.
SRCH
00397CONT SRCH
END (001)00.4KW
Indicates the address
of END instruction.
Indicates the amount used by the user
program in units of 0.1 Kwords.
RUN MONITOR PROGRAM
No No OK
00104
00100
00103
00105
00101
00201
END(01)
00102
01000
Delete
Insert
Original Pr ogram
Address Instruction Operands
00205 AND 00103
00206 AND NOT 00104
00207 OUT 01000
00208 END(01)
Delete
Insert
-
C
2
A
0
6
E
00206READ
AND NOT 00104
AND
B
1
A
0
F
5
INS
00206INSERT?
AND 00105
E
00207INSERT END
AND NOT 00104
C
2
A
0
F
5
E
00205READ
AND 00103
