Omron CPM2C User Manual

169
Programming Console Operations Section 4-2
The ON/OFF status of any displayed bit will be shown if the PC is in RUN or
MONITOR mode.

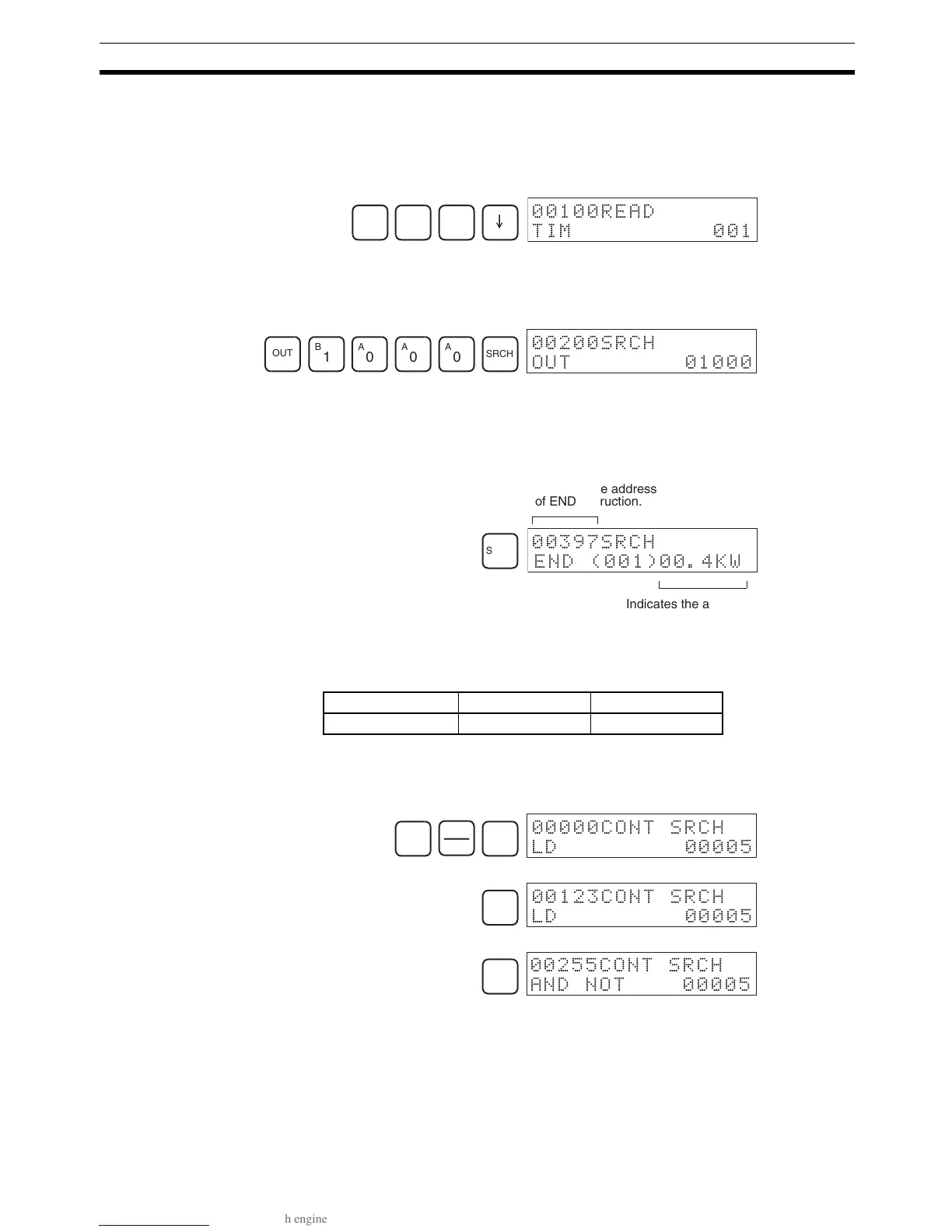

1,2,3... 1. Press the CLR Key to bring up the initial display.
2. Input the address from which the search will begin and press the Down Ar-
row Key. It is not necessary to input leading zeroes.
3. Input the instruction to be found and press the SRCH Key. In this case, the
search is for OUT 01000.
In this case, the next OUT 01000 instruction is at address 200, as shown
below.
4. Press the Down Arrow Key to display the instruction’s operands or press
the SRCH Key to search for the next occurrence of the instruction.
5. The search will continue until an END instruction or the end of Program
Memory is reached. In this case, an END instruction was reached at ad-
dress 397.
4-2-11 Bit Operand Search
This operation is used to find occurrences of the specified operand bit in the
program and is possible in any mode.
The ON/OFF status of any displayed bit will be shown if the PC is in RUN or
MONITOR mode.
1,2,3... 1. Press the CLR Key to bring up the initial display.
2. Input the operand address. It is not necessary to input leading zeroes.
3. Press the SRCH Key to begin the search.
4. Press the SRCH Key to search for the next occurrence of the operand bit.
5. The search will continue until an END instruction or the end of Program
Memory is reached. In this case, an END instruction was reached.
B
1
A
0
A
0
E
00100READ
TIM 001
OUT
B
1
A
0
A
0
A
0
SRCH
00200SRCH
OUT 01000
SRCH
00397SRCH
END (001)00.4KW
Indicates the address
of END instruction.
Indicates the amount used by the user
program in units of 0.1 Kwords.
RUN MONITOR PROGRAM
OK OK OK
SHIFT
CONT
#
F
5
00000CONT SRCH
LD 00005
SRCH
00123CONT SRCH
LD 00005
SRCH
00255CONT SRCH
AND NOT 00005
