3-4-10 Programming Device Connections

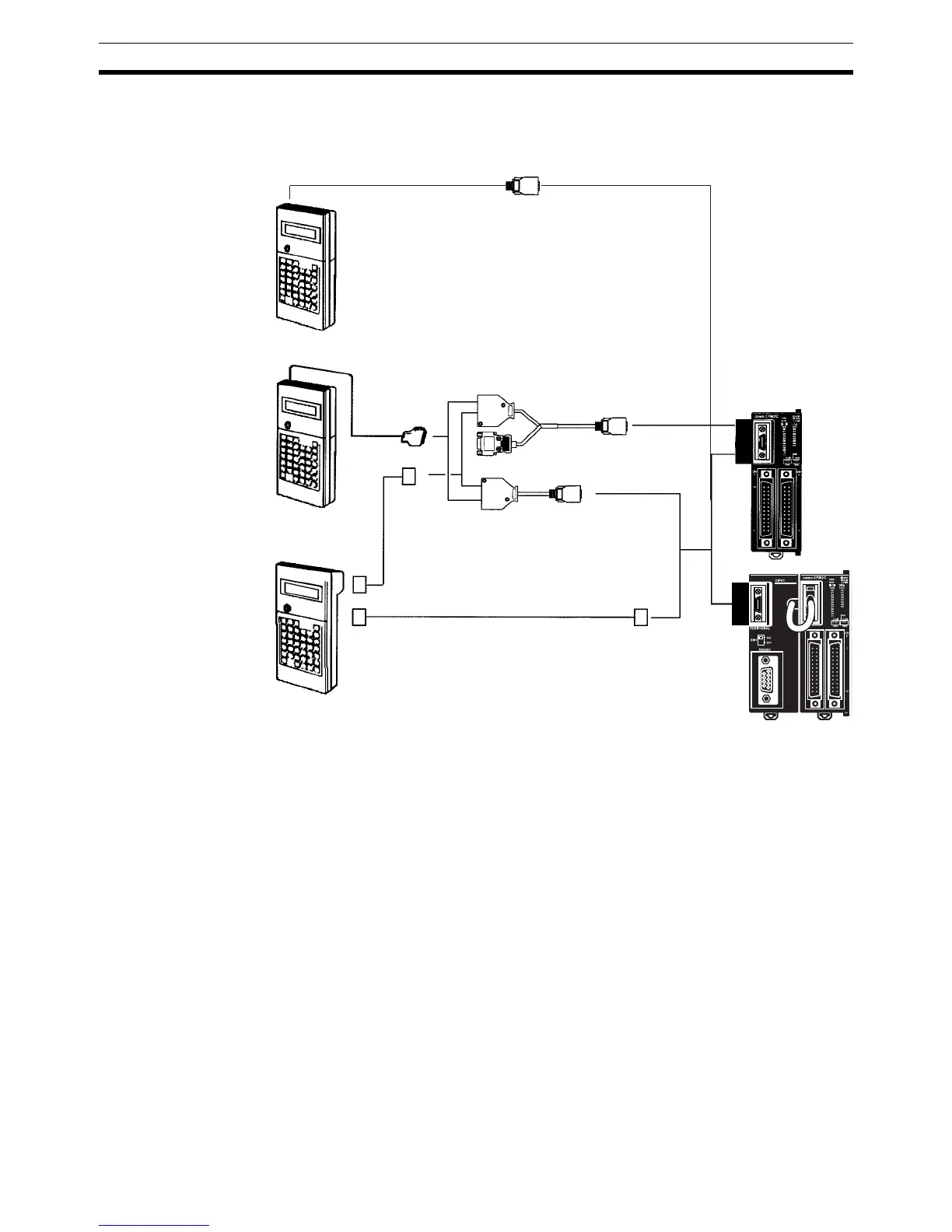

Programming Console Use one of the connecting cables shown in the following diagram to connect a
Programming Console to the CPM2C.
Note When connecting a Programming Console to the peripheral port of the
CPM2C-CIF01-V1 Peripheral/RS-232C Adapter Unit, turn OFF the cable
switch (SW1).
Peripheral port
CPM2C CPU Unit
CS1W-CN114 (0.05 m)
Main cable (2 m)
CQM1-PRO01-E
(with attached 2-m cable)
C200H-PRO27-E
C200H-CN222 (2 m)
C200H-CN422 (4 m)
CS1W-CN224 (2 m)
CS1W-CN624 (6 m)
CPM2C-CN111 (0.15 m)
CQM1H-PRO01-E
(with attached 2-m cable)
Main cable (2 m)
CPM2C-CIF01-V1
