Omron CPM2C User Manual

268

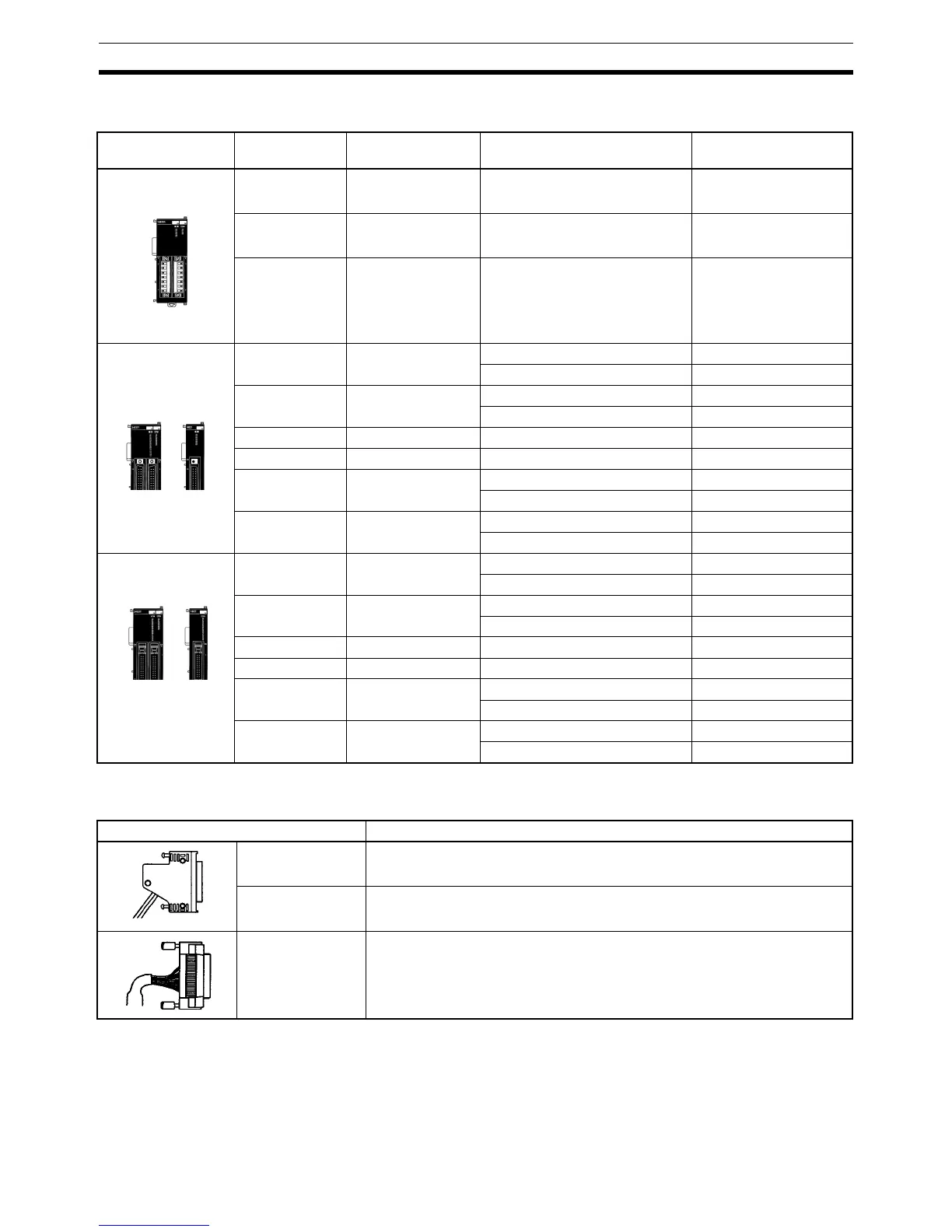

Standard Models Appendix A
Expansion I/O Units
I/O Connectors (OMRON Products)
Classification and
Appearance
I/O capacity Inputs Outputs Model
Units with Terminal
Blocks
10 I/O points 6 points (24 VDC) 4 relay outputs CPM2C-10EDR
20 I/O points 12 points (24 VDC) 8 relay outputs CPM2C-20EDR
8 output points --- 8 relay outputs CPM2C-8ER
Units with Fujitsu-
compatible Connec-
tors
24 I/O points 16 points (24 VDC) 8 transistor outputs (sinking) CPM2C-24EDTC
8 transistor outputs (sourcing) CPM2C-24EDT1C
32 I/O points 16 points (24 VDC) 16 transistor outputs (sinking) CPM2C-32EDTC
16 transistor outputs (sourcing) CPM2C-32EDT1C
8 input points 8 points (24 VDC) --- CPM2C-8EDC
16 input points 16 points (24 VDC) --- CPM2C-16EDC
8 output points --- 8 transistor outputs (sinking) CPM2C-8ETC
8 transistor outputs (sourcing) CPM2C-8ET1C
16 output points --- 16 transistor outputs (sinking) CPM2C-16ETC
16 transistor outputs (sourcing) CPM2C-16ET1C
Units with MIL Con-
nectors
24 I/O points 16 points (24 VDC) 8 transistor outputs (sinking) CPM2C-24EDTM
8 transistor outputs (sourcing) CPM2C-24EDT1M
32 I/O points 16 points (24 VDC) 16 transistor outputs (sinking) CPM2C-32EDTM
16 transistor outputs (sourcing) CPM2C-32EDT1M
8 input points 8 points (24 VDC) --- CPM2C-8EDM
16 input points 16 points (24 VDC) --- CPM2C-16EDM
8 output points --- 8 transistor outputs (sinking) CPM2C-8ETM
8 transistor outputs (sourcing) CPM2C-8ET1M
16 outputs
points
--- 16 transistor outputs (sinking) CPM2C-16ETM
16 transistor outputs (sourcing) CPM2C-16ET1M
Connector Description
C500-CE241 24-pin soldered connector with cover
C500-CE242 24-pin crimp connector with cover
C500-CE243 24-pin pressure connector
