269

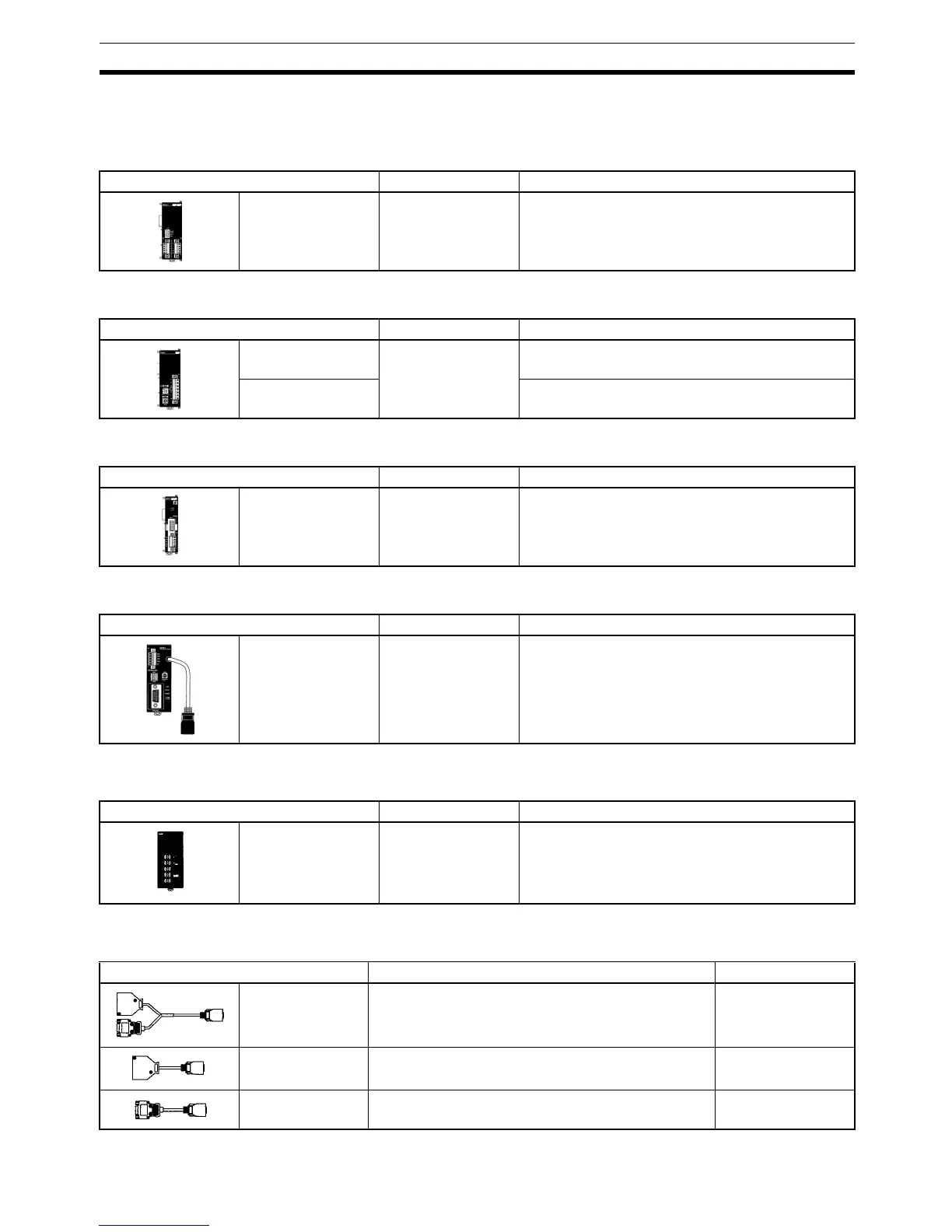

Standard Models Appendix A
Expansion Units
Analog I/O Unit
Temperature Sensor Units
CompoBus/S I/O Link Unit
Simple Communications Unit
AC Power Supply Unit
Communications Port Connecting Cables
Model Name Specifications
CPM2C-MAD11 Analog I/O Unit 2 analog inputs, 1 analog output
Model Name Specifications
CPM2C-TS001 Temperature Sensor
Unit
2 thermocouple inputs
CPM2C-TS101 2 platinum resistance thermometer inputs
Model Name Specifications
CPM2C-SRT21 CompoBus/S I/O
Link Unit
Allocates CPM2C I/O (8 inputs and 8 outputs) when
CPM2C used as a CompoBus Slave.
Model Name Specifications
CPM2C-CIF21 Simple Communica-
tions Unit
Up to 32 communications components supporting
the CompoWay/F protocol and temperature control-
lers and Digital Panel Meters supporting the
SYSWAY protocol can be connected.
Model Name Specifications
CPM2C-PA201 AC Power Supply
Unit
Input: 100 to 240 VAC
Output: 24 VDC/600 mA
Connector Description Cable length
CPM2C-CN111
Connecting Cable
Converts the CPM2C CPU Unit’s communications port
to a peripheral port and RS-232C port.
0.15 m (about 4”)
CS1W-CN114
Connecting Cable
Converts the CPM2C CPU Unit’s communications port
to a peripheral port.
0.05 m (about 2”)
CS1W-CN118
Connecting Cable
Converts the CPM2C CPU Unit’s communications port
to an RS-232C port.
0.1 m (about 2”)
