Omron CPM2C User Manual

122
Wiring and Connections Section 3-4

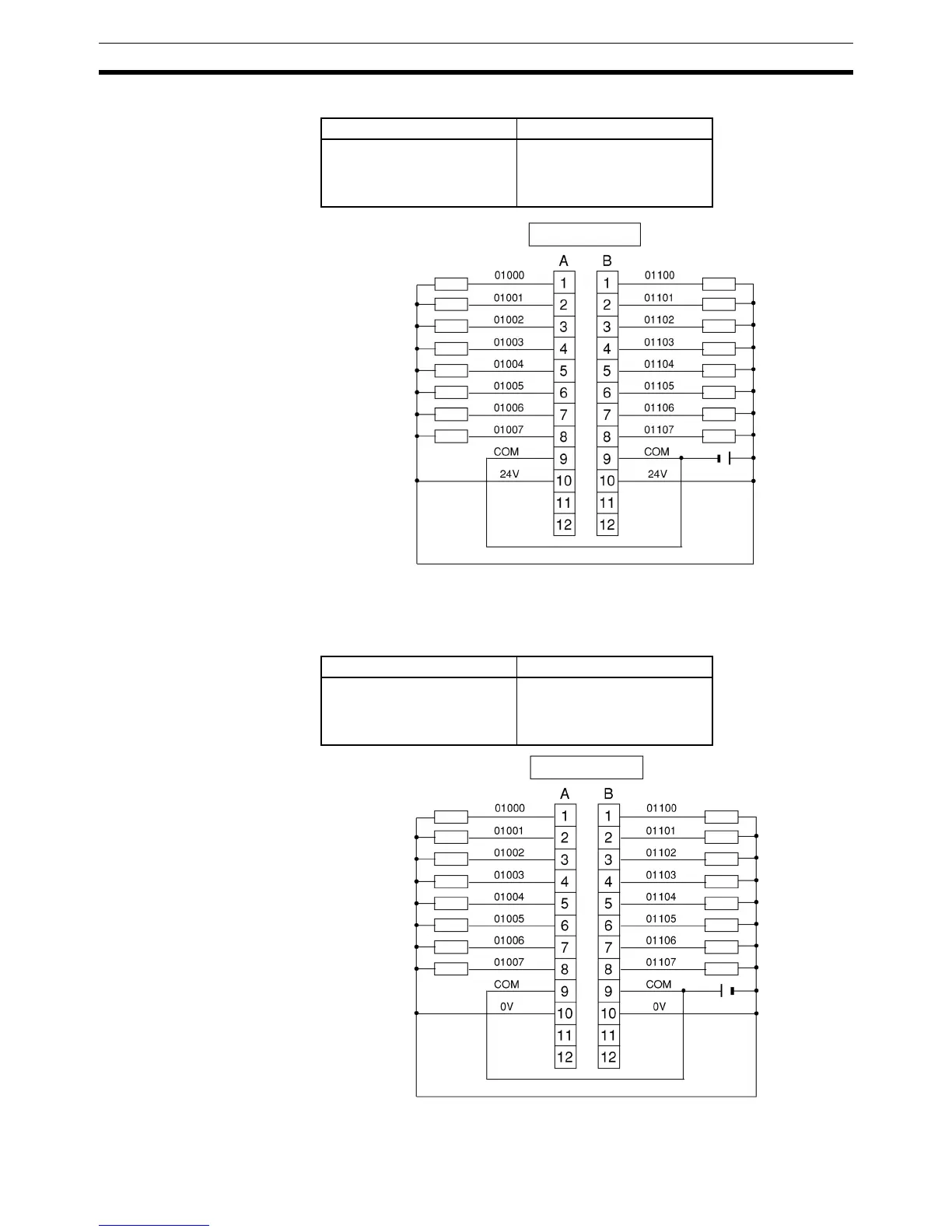

CPU Units with 32 I/O Points, Sinking Outputs: CPM2C-32CDTC-D
Note Wire COM terminals (A9 and B9) and 24-V terminals (A10 and B10) even
though they are connected internally.
CPU Units with 32 I/O Points, Sourcing Outputs: CPM2C-32CDT1C-D
Note Wire COM terminals (A9 and B9) and 0-V terminals (A10 and B10) even
though they are connected internally.
Output capacity Max. common capacity
OUT01000 to OUT01007:
300 mA (24 VDC)
OUT01100 to OUT01107:
100 mA (24 VDC)
3.2 A/common
Outputs: IR 010/IR011
Load
Load
Load
Load
Load
Load
Load
Load
24 VDC
Load
Load
Load
Load
Load
Load
Load
Load
Output capacity Max. common capacity
OUT01000 to OUT01007:
300 mA (24 VDC)
OUT01100 to OUT01107:
100 mA (24 VDC)
3.2 A/common
Outputs: IR 010/IR011
Load
Load
Load
Load
Load
Load
Load
Load
24 VDC
Load
Load
Load
Load
Load
Load
Load
Load
