Wiring and Connections Section 3-4

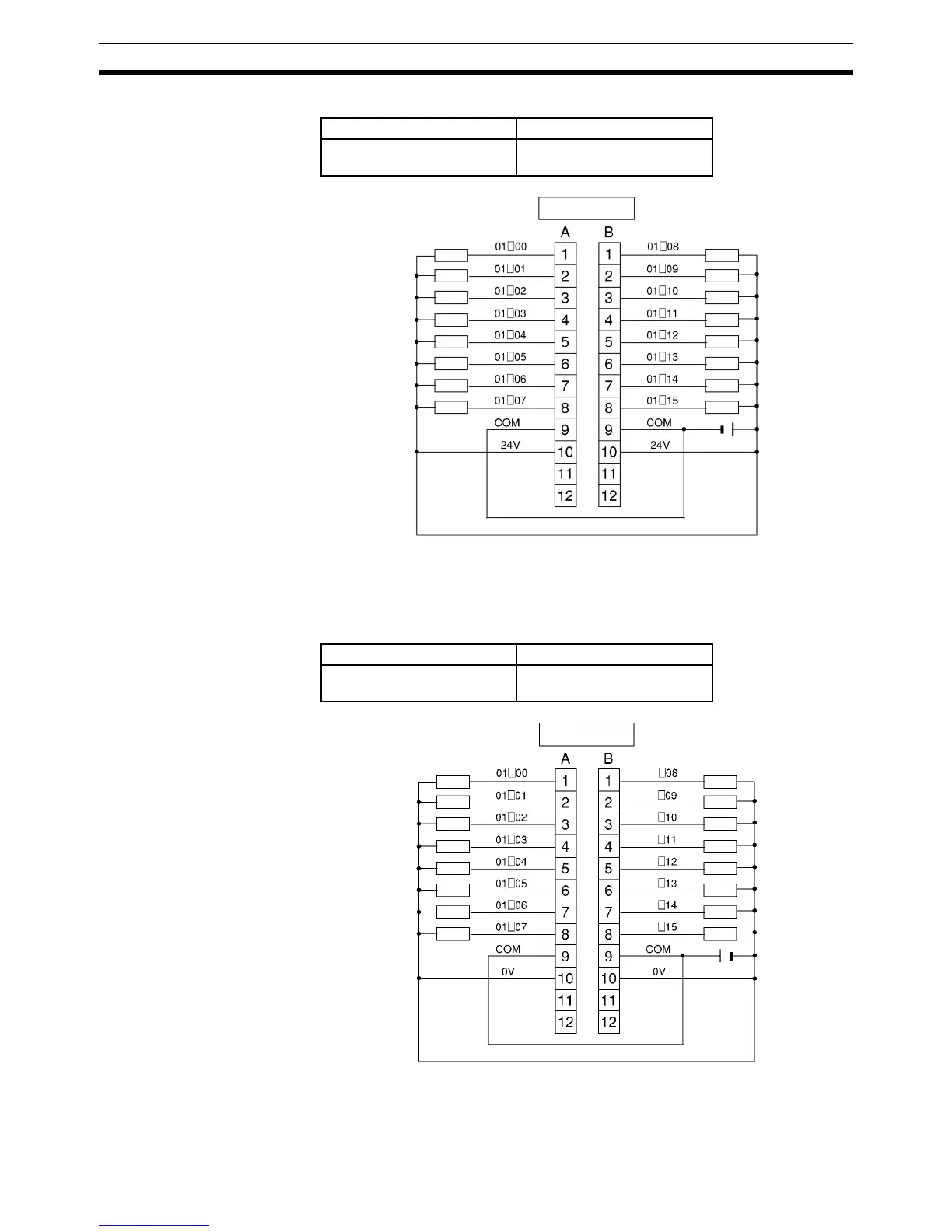

Expansion I/O Unit with 32 I/O Points, Sinking Outputs: CPM2C-32EDTC
Note Wire COM terminals (A9 and B9) and 24-V terminals (A10 and B10) even
though they are connected internally.
Expansion I/O Unit with 32 I/O Points, Sourcing Outputs:
CPM2C-32EDT1C
Note Wire COM terminals (A9 and B9) and 0-V terminals (A10 and B10) even
though they are connected internally.
Output capacity Max. common capacity
00 to 07: 300 mA (24 VDC)
08 to 15: 100 mA (24 VDC)
3.2 A/common
Outputs: IR word n
Load
Load
Load
Load
Load
Load
Load
Load
Load
Load
Load
Load
24 VDC
Load
Load
Load
Load
Output capacity Max. common capacity
00 to 07: 300 mA (24 VDC)
08 to 15: 100 mA (24 VDC)
3.2 A/common
Outputs: IR word n
Load
Load
Load
Load
Load
Load
Load
Load
Load
Load
Load
Load
24 VDC
Load
Load
Load
Load
01
01
01
01
01
01
01
01
