135
Wiring and Connections Section 3-4
Note For CPU Units with 32 I/O Points, relay numbers 00@00 to 00@07 correspond
to 00000 to 00007, relay numbers 00@08 to 00@15 correspond to 00100 to
00107, and relay numbers 01@00 to 01@07 correspond to 01000 to 01007,
and relay numbers 01@08 to 01@15 correspond to 01100 to 01107.

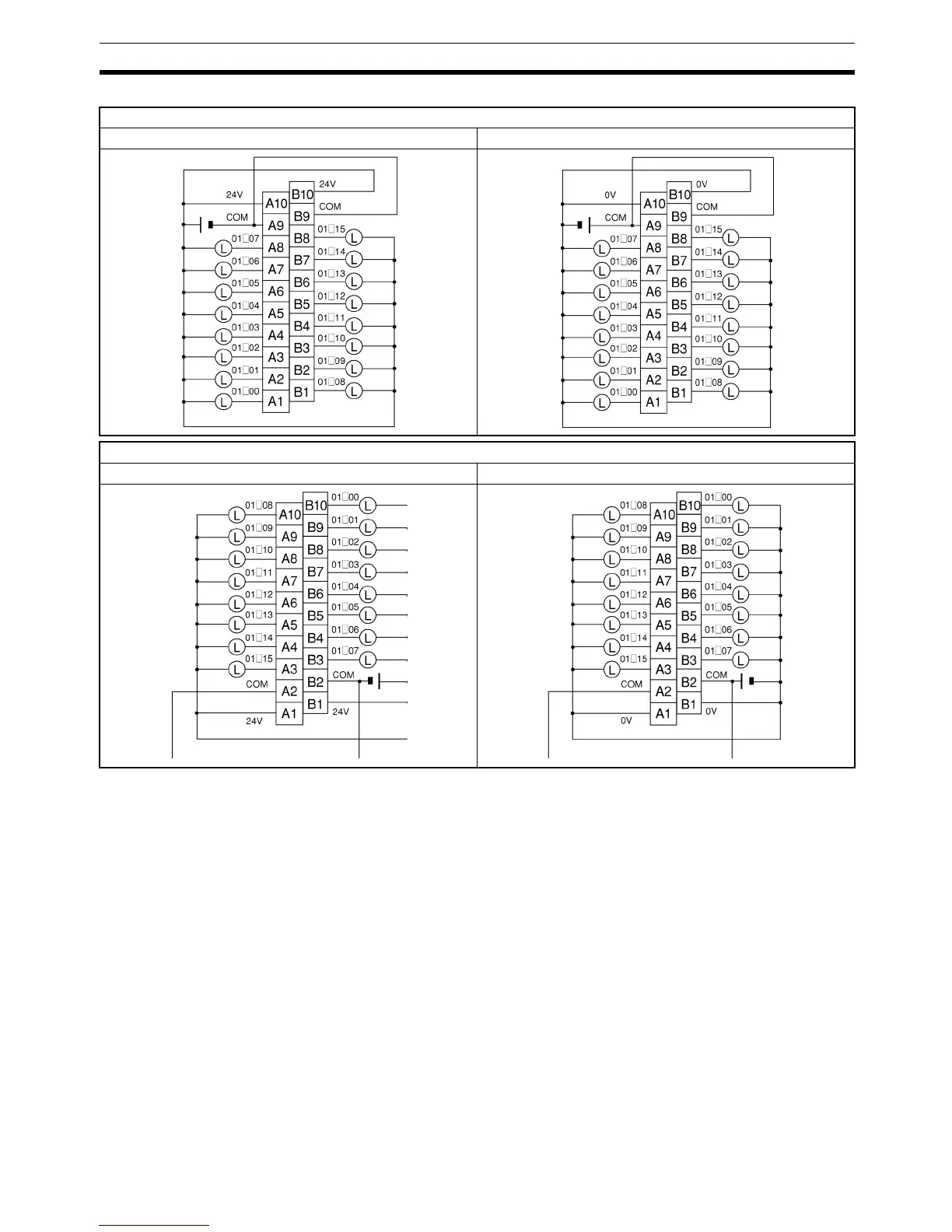

Terminal Blocks: XW2D-20G6; Cable: XW2Z-@@@A (Fujitsu-compatible connector)
Sinking outputs Sourcing outputs
Terminal Blocks: XW2D-20G6; Cable: G79-@C (Fujitsu-compatible connector), G79-O@@C (MIL connector)
Sinking outputs Sourcing outputs
To Next Page
