153
Using a Programming Console Section 4-1

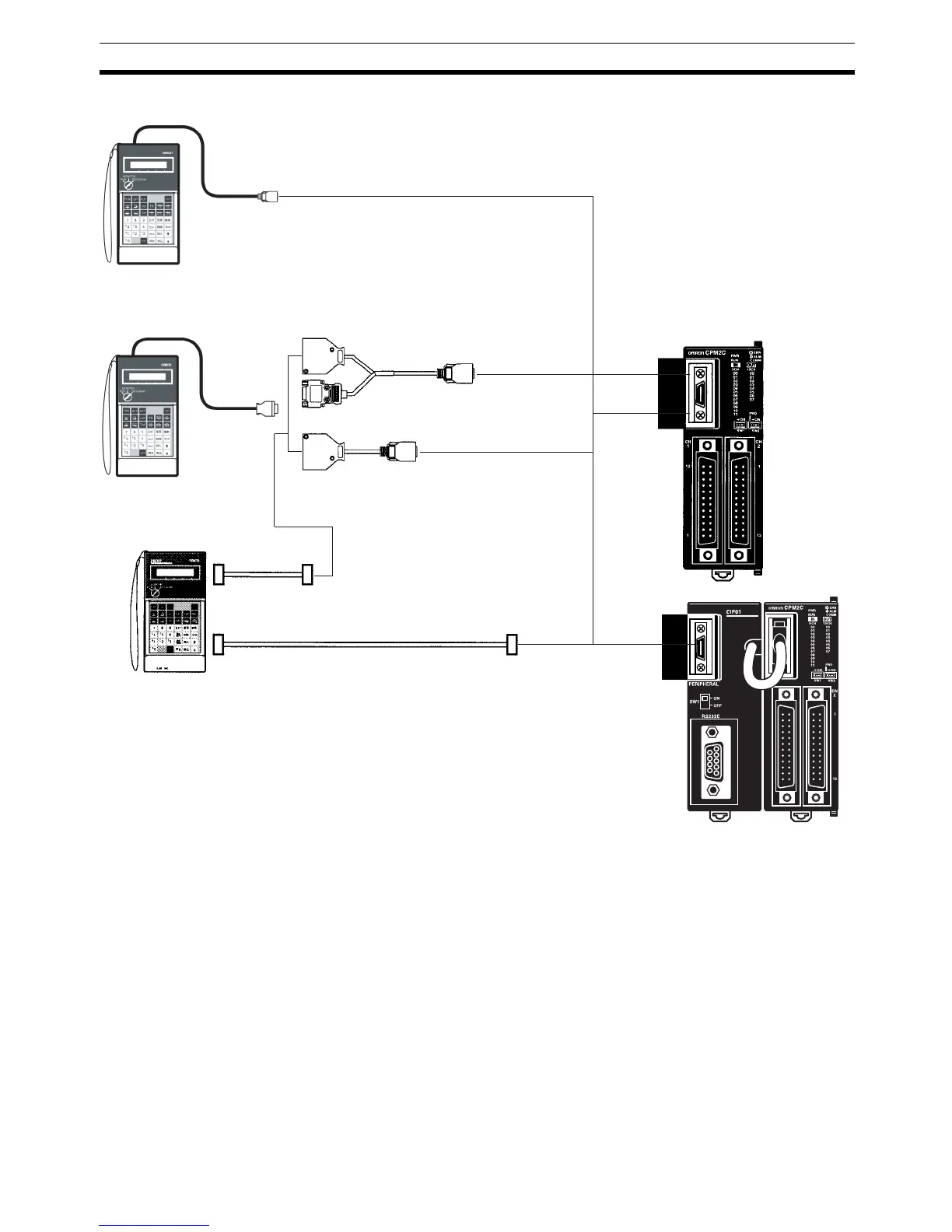

Connect the Programming Console to the CPM2C as shown below.
Note 1. Connect the Programming Console to the peripheral port. The CPM2C-
CN111 Connecting Cable cannot be connected to the RS-232C port.
2. If the Programming Console is reconnected within 2 seconds of being dis-
connected, the previous display will be maintained and the password will
not need to be input. It is also possible to disconnect and reconnect the
Programming Console without loosing the current display during long op-
erations, such as program checks.
3. When connecting a Programming Console to the peripheral port of the
CPM2C-CIF01-V1 Peripheral/RS-232C Adapter Unit, turn OFF the cable
switch (SW1).
Peripheral port (to communications port)
CPM2C CPU Unit
CPM2C-CN111
Connecting Cable
CS1W-CN114
Connecting Cable
CQM1-PRO01-E
CS1W-CN224 or
CS1W-CN624
Connecting Cable
CQM1-PRO27-E
C200H-CN222 or
C200H-CN422
Connecting Cable
Peripheral port (to
communications
port)
Note The C200H-PRO27-E can be con
nected directly to the CPM2C if the
CS1W-CN224 or CS1W-CN624
Connecting Cable is used.
CQM1H-PRO01-E
The CQM1H-PRO01-E
can be connected directly
to the CPM2C-S.
CPM2C CPU Unit
CPM2C-CIF01-V1
To Next Page
