Specifications Section 2-1
CPU Unit and Expansion I/O Unit Output Specifications
Relay Outputs
Item Specification
Max. switching capacity 2 A, 250 VAC (cosφ = 1)
2 A, 24 VDC
(4 A/common)
Min. switching capacity 10 mA, 5 VDC
Service life of relay
(See note.)
Electrical: 150,000 operations (24-VDC resistive load)
100,000 operations (240-VAC inductive load, cosφ = 0.4)
Mechanical: 20,000,000 operations
ON delay 15 ms max.
OFF delay 15 ms max.

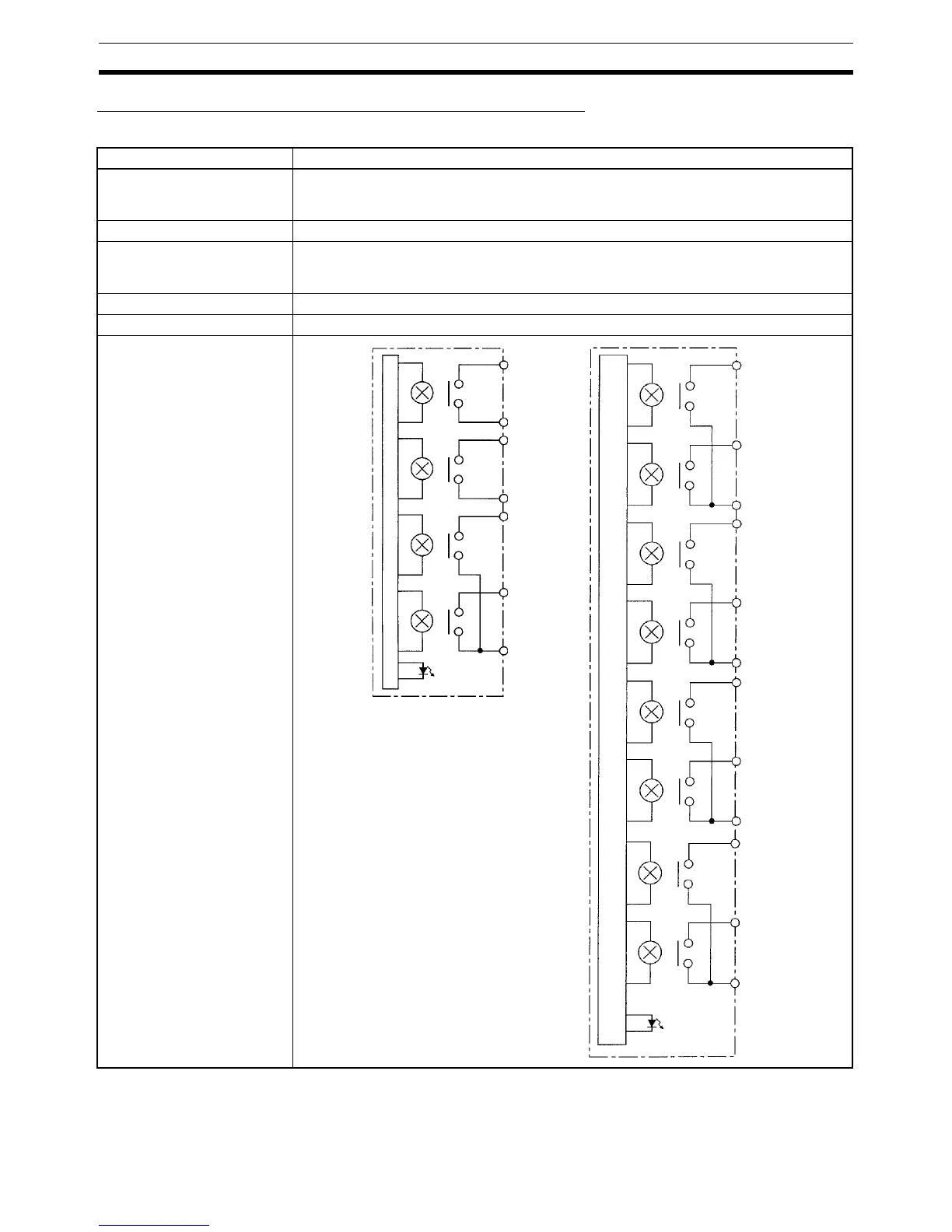

Circuit configuration
Output
LED
Internal circuits
OUT 00
OUT 01
OUT 02
OUT 03
COM
COM
COM
Output
LED
Internal circuits
OUT 00
OUT 01
OUT 02
COM
OUT 03
OUT 04
COM
OUT 05
OUT 06
COM
OUT 07
COM
