Omron CPM2C User Manual

67
Unit Components Section 2-2

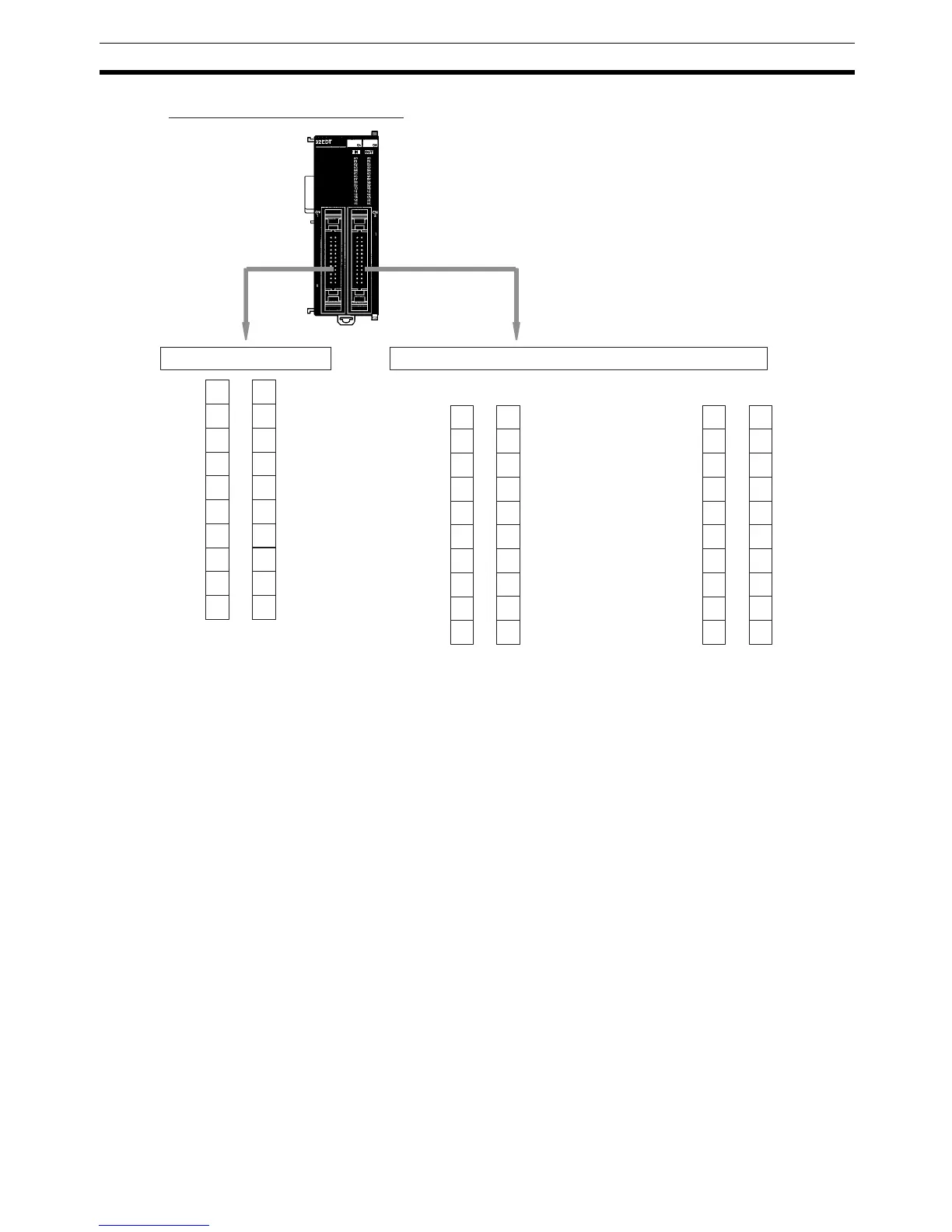

Note Pin 1 is in the positions given above. This differs from the indications on the
case. Be sure to wire according to the following positions.
Input connectors: Bottom of right row
Output connectors: Top of left row
Inputs: IR word m Outputs: IR word n
32 I/O Points: CPM2C-32EDT@M
Sinking: CPM2C-32EDTM
Sourcing: CPM2C-32EDT1M
20
18
16
14
12
10
8
6
4
2
IN 00
IN 01
IN 02
IN 03
IN 04
IN 05
IN 06
IN 07
COM
NC
19
17
15
13
11
9
7
5
3
1
1
3
5
7
9
11
13
15
17
19
24 V
COM (−)
OUT 15
OUT 14
OUT 13
OUT 12
OUT 11
OUT 10
OUT 09
OUT 08
2
4
6
8
10
12
14
16
18
20
IN 08
IN 09
IN 10
IN 11
IN 12
IN 13
IN 14
IN 15
COM
NC
24 V
COM (−)
OUT 07
OUT 06
OUT 05
OUT 04
OUT 03
OUT 02
OUT 01
OUT 00
1
3
5
7
9
11
13
15
17
19
0 V
COM (+24 V)
OUT 15
OUT 14
OUT 13
OUT 12
OUT 11
OUT 10
OUT 09
OUT 08
2
4
6
8
10
12
14
16
18
20
0 V
COM (+24 V)
OUT 07
OUT 06
OUT 05
OUT 04
OUT 03
OUT 02
OUT 01
OUT 00
