116
Chapter4 Installation Conditions
F3SJ-A
User’s Manual
Wiring/Installation

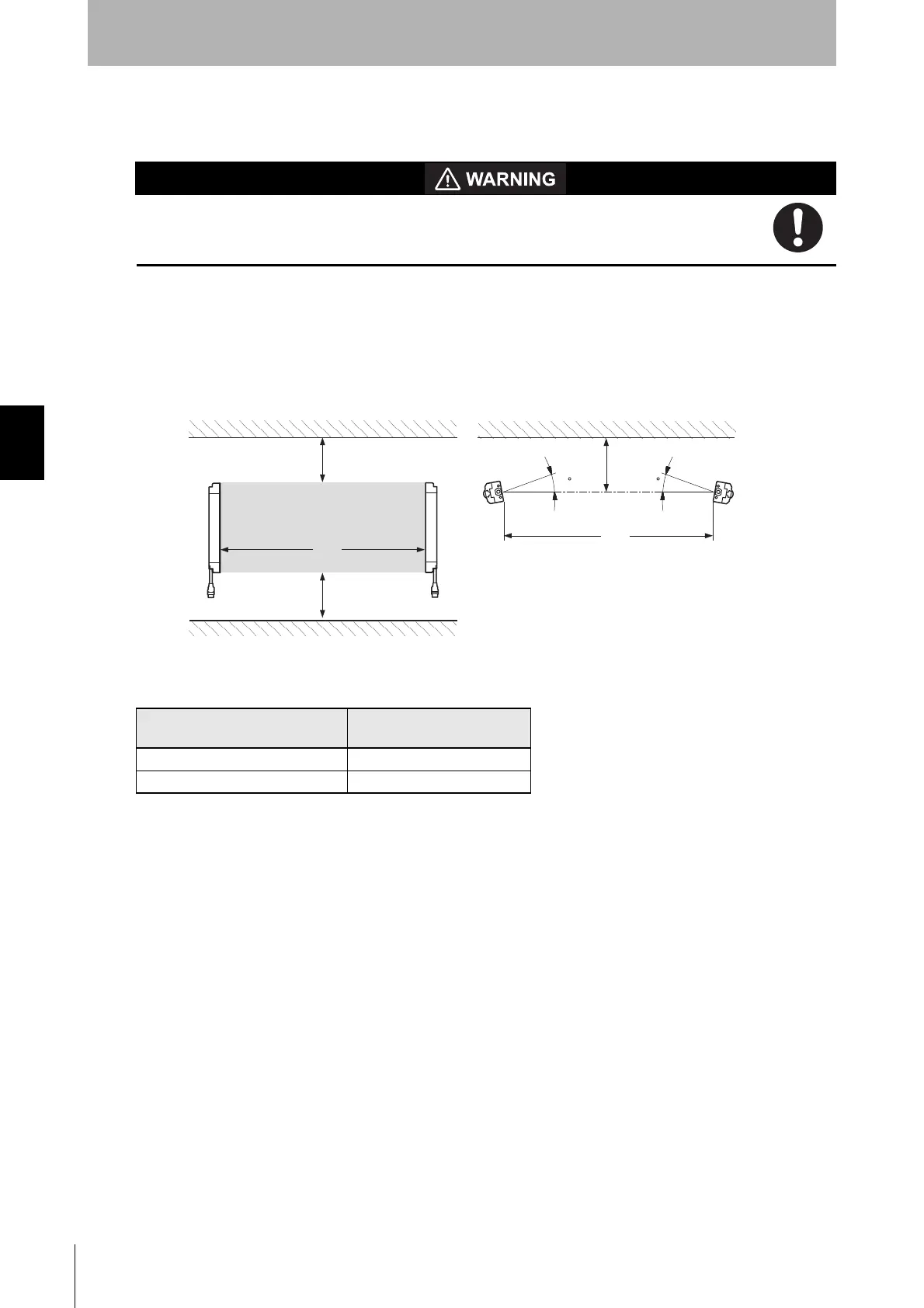

 Distance from Reflective Surfaces
Install the sensor system so that it is not affected by reflective surfaces. Failure to do so
may hinder detection, resulting in serious injury.
Install the sensor system at distance D or further from highly reflective surfaces such as metallic walls,
floors, ceilings, or workpieces, as shown below.
Distance between an emitter and a
receiver (operating range L)
Allowable installation distance
D
For 0.2 to 3m 0.13m
For 3m or more L/2 x tan5 ° = L x 0.044 (m)
L
D
D
L
D
5
5
Detection zone
Emitter
Receiver
Reflective ceiling
Reflective floor
Emitter
Receive
r
Reflective surface

Omron F3SJ Series Specifications

General

Type	Safety Light Curtain
Safety Category	Category 4
Protection Rating	IP67
SIL	SIL3
Operating Temperature	-10°C to +55°C
Detection Method	Infrared
Resolution	14 mm
IP Rating	IP67
Certification	CE
Power Supply Voltage	24 VDC ±10%
