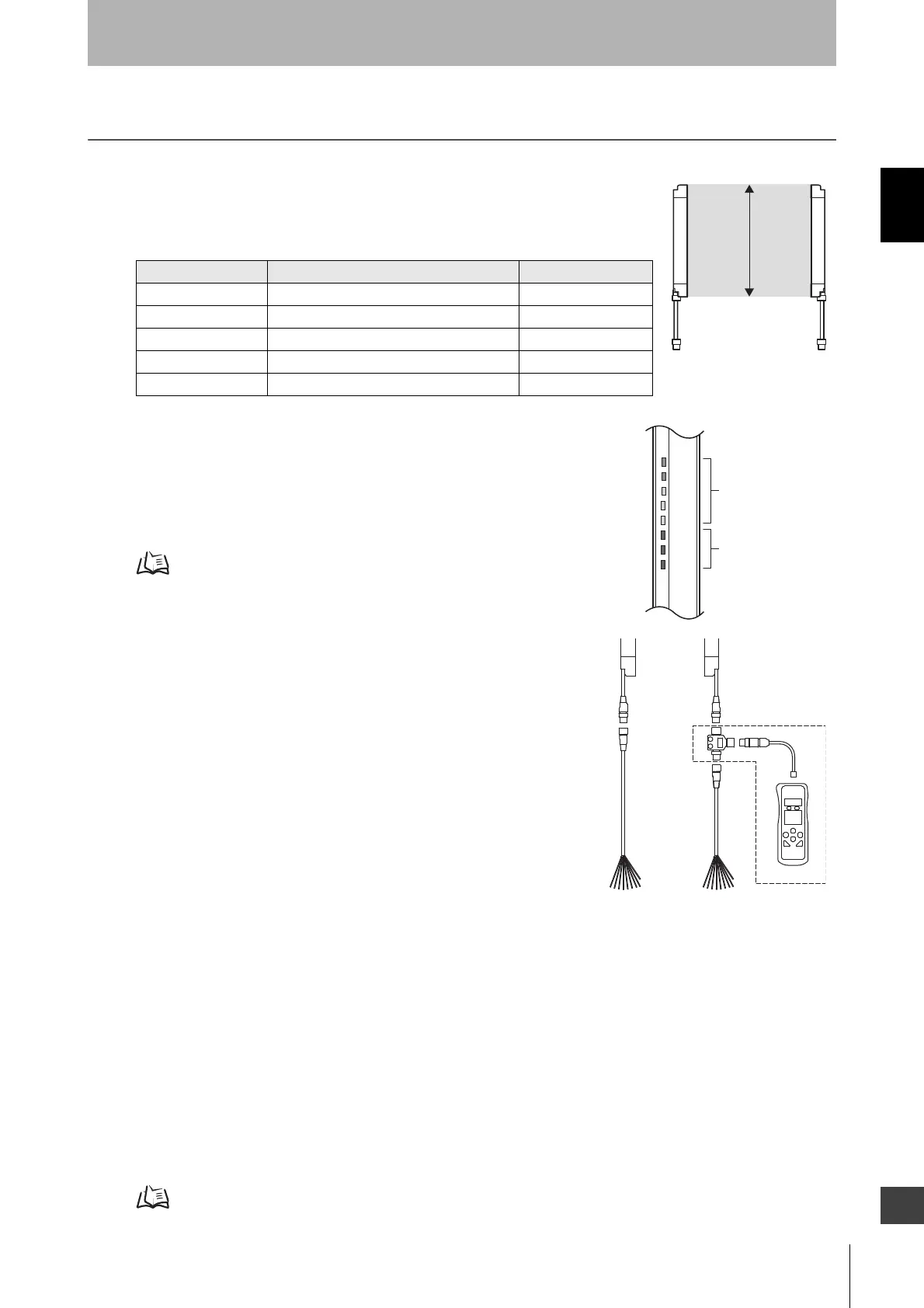

Chapter1 Features
Overview and Specifications
E
Features
Protective Height Available in Incremental
Sizes
Easy-to-Read Light Level and Error Mode
Display
Beam alignment is simplified using 5 LEDs that display the incident light
level.
Error status is indicated on 3 additional LEDs when an error occurs.
Indicator Display Patterns p.11
Providing Tools for Setting
Two types of tools are provided to change functional setting of
F3SJ. (Accessories sold separately)
These tools allow you to change functions or check status of F3SJ,
taking more advantage of F3SJ.
•Setting Console F39-MC21
•PC Tool For F3SJ F39-GWUM
Additional Safety Functions
•External test (light emission stop)
•External device monitoring function
•Interlock function
•Fixed/Floating Blanking Function
(Configuration by the setting tool is required)
Enhanced Mutual Interference Prevention
When the series connection function is used, mutual interference is prevented in up to 400 beams in 4
sets.
When F3SJ are used individually, the newly designed interference light detection and cycle shift
algorithm prevents mutual interference in up to 3 sets.
The effect of interference between the F3SJ and other photoelectric sensors can be reduced by using
the setting tool to shorten the operating range.
p.117
Series Protective height Detection capability
F3SJ-AN14 245mm to 2117mm (in 9mm increments) Dia. 14mm
F3SJ-AN20 245mm to 2,495mm (in 15mm increments) Dia. 20mm
F3SJ-AN25 260mm to 2,500mm (in 20mm increments) Dia. 25mm
F3SJ-AN30 245mm to 2,495mm (in 25mm increments) Dia. 30mm
F3SJ-AN55 270mm to 2,470mm (in 50mm increments) Dia. 55mm
Protective
height
Incident light
level indicato
Error mode
indicator
LEVEL
5
4
3
2
1
C
B
A
