Omron F3SJ Series User Manual

63
F3SJ-A
User’s Manual
Chapter3 F3SJ Status When Setting Tool Is Connected
What can be done by the setting tool
E
F3SJ Status When Setting Tool Is Connected

Maintenance Status
Connecting setting tool turns F3SJ into maintenance status, allowing change of setting, operation
monitoring, and check of maintenance information.
Under the maintenance status, F3SJ operates as shown below:
•Safety output keeps OFF status.
•Indication statuses of internal indicator ON/OFF are partly different.(See below)
•Lockout does not occur except for model error, communications error, setting value error, or internal
circuit failure.
(For example, lockout does not occur even if a fixed blanking beam receives light)

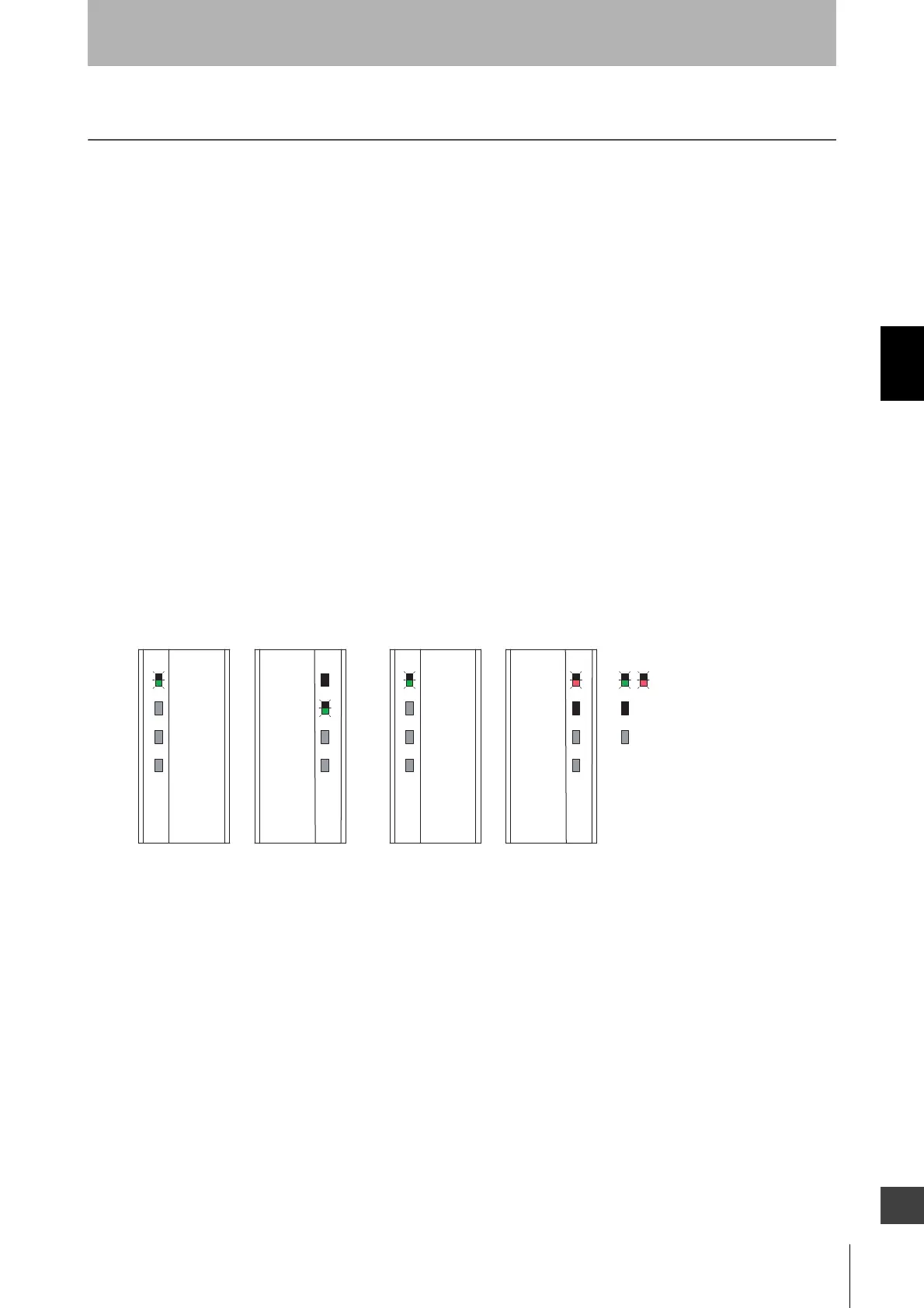

 Internal Indicators During Maintenance Status
When in the maintenance status, the emitter-side POWER indicator [POWER] and the receiver-side
ON or OFF indicator ([ON] or [OFF]) blink.
If the F3SJ is ON during normal operation, the ON output indicator blinks in the maintenance status.
The safety output is OFF.
If the F3SJ is OFF during normal operation, the OFF output indicator blinks and the safety output is
OFF in the maintenance status.
Apparent output is ON
(Safety output is OFF)
Apparent output is OFF
(Safety output is OFF)
Emitter Receiver Emitter Receiver
Blinking
OFF
ON, blinking, or OFF,
depending on settings
POWER
INTL K
EDM
BLANKING
(TEST)
ON
OFF
POWER
INTL K
EDM
BLANKING
(TEST)
ON
OFF
EMITTER EMITTER
RECEIVER RECEIVER

Omron F3SJ Series Specifications

General

Type	Safety Light Curtain
Safety Category	Category 4
Protection Rating	IP67
SIL	SIL3
Operating Temperature	-10°C to +55°C
Detection Method	Infrared
Resolution	14 mm
IP Rating	IP67
Certification	CE
Power Supply Voltage	24 VDC ±10%
