Chapter3 Preparation
F3SJ-A
User’s Manual
What can be done by the setting tool
•CD-ROM (Setting software SD Manager and communication unit driver)
•Communication Unit
•Branch Connector (with Connector Cap)
•Dedicated cable
•Plugged Dedicated Cable
•Instruction Manual (Installation Guide)
It allows a user to check F3SJ's operation status and change functional settings in the setting software
SD Manager.

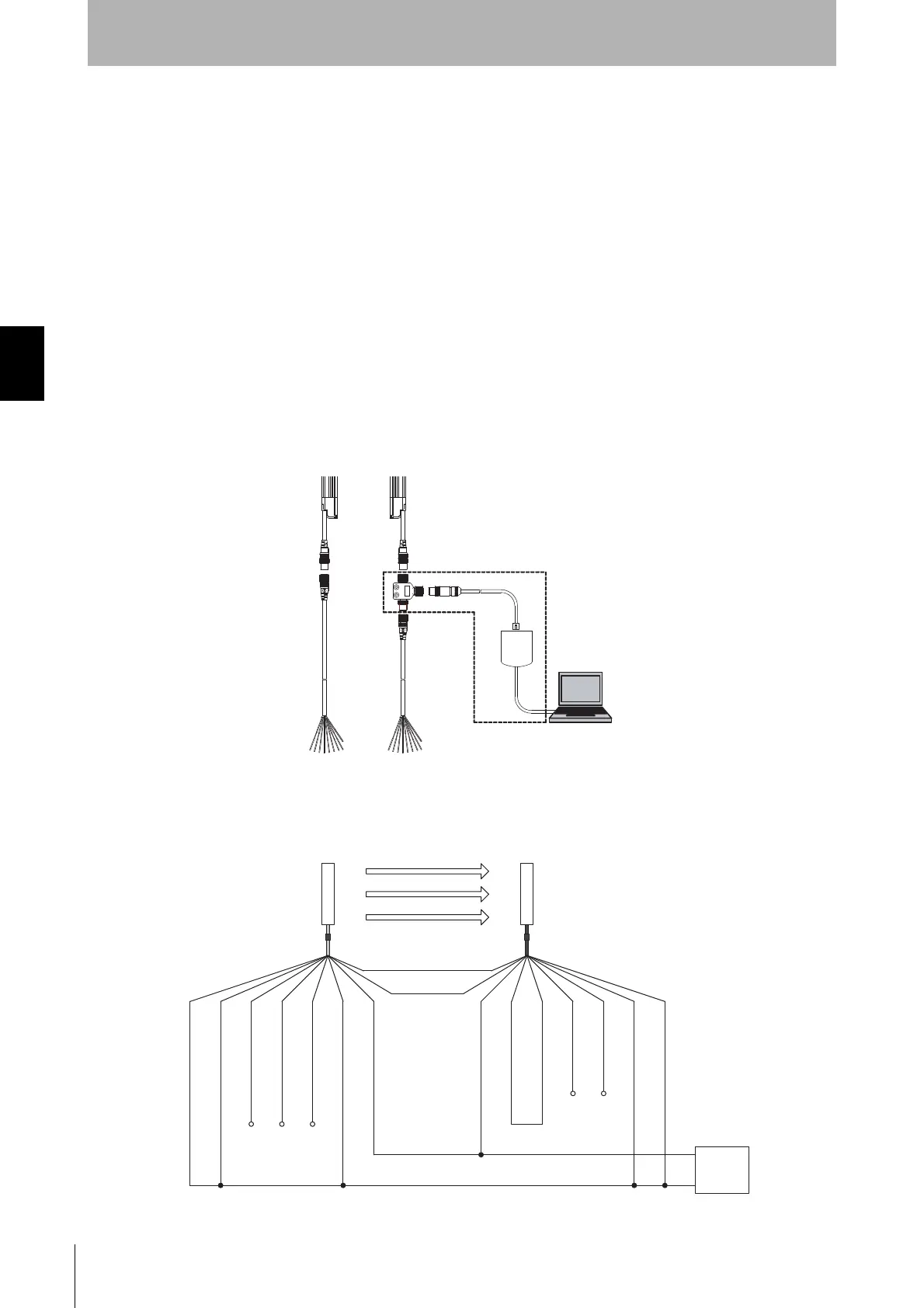

 Connection Procedure
Connect your computer, communication unit, and F3SJ as shown below. You can connect a branch
connector either on the emitter or receiver end. Complete the wiring for F3SJ and turn it on, then
activate the setting software.
If a branch connector is difficult to attach due to devices layout or other reason, use an accessory
plugged dedicated cable to communication lines (+) and (-).
For details, see the help for the SD Manager.
 Minimum Wiring for Setting
Minimum wiring required to check the operation of the F3SJ
(Wiring for auto reset mode and deactivated external device monitoring function)
PC
PC Tool for F3SJ
F39-GWUM
(Optional accessory)
0V
Interlock selection input(White)
0V(Blue)
Shield
Open Open Open
Open Open
+24V DC
Power
supply
Emitter
Receiver
(Grey)Communication line (+)
(Pink)
Communication line (-)
Shield
Auxiliary output 2(Red)
Reset input(Yellow)
24V(Brown)
24V(Brown)
External device monitoring input (Red)
Auxiliary output 1(Yellow)
0V(Blue)
Safety output 2(White)
Test input(Black)
Safety output 1(Black)
*
* Green for the single-ended cable F39-JCA.
*

Omron F3SJ Series Specifications

General

Type	Safety Light Curtain
Safety Category	Category 4
Protection Rating	IP67
SIL	SIL3
Operating Temperature	-10°C to +55°C
Detection Method	Infrared
Resolution	14 mm
IP Rating	IP67
Certification	CE
Power Supply Voltage	24 VDC ±10%
