Omron F3SJ Series User Manual

146
Chapter4 Dimensions
F3SJ-A
User’s Manual
Wiring/Installation
 F39-A01P-PAC External Indicator Set
•F39-A01P-PAC
 When Using Spatter Protection Covers

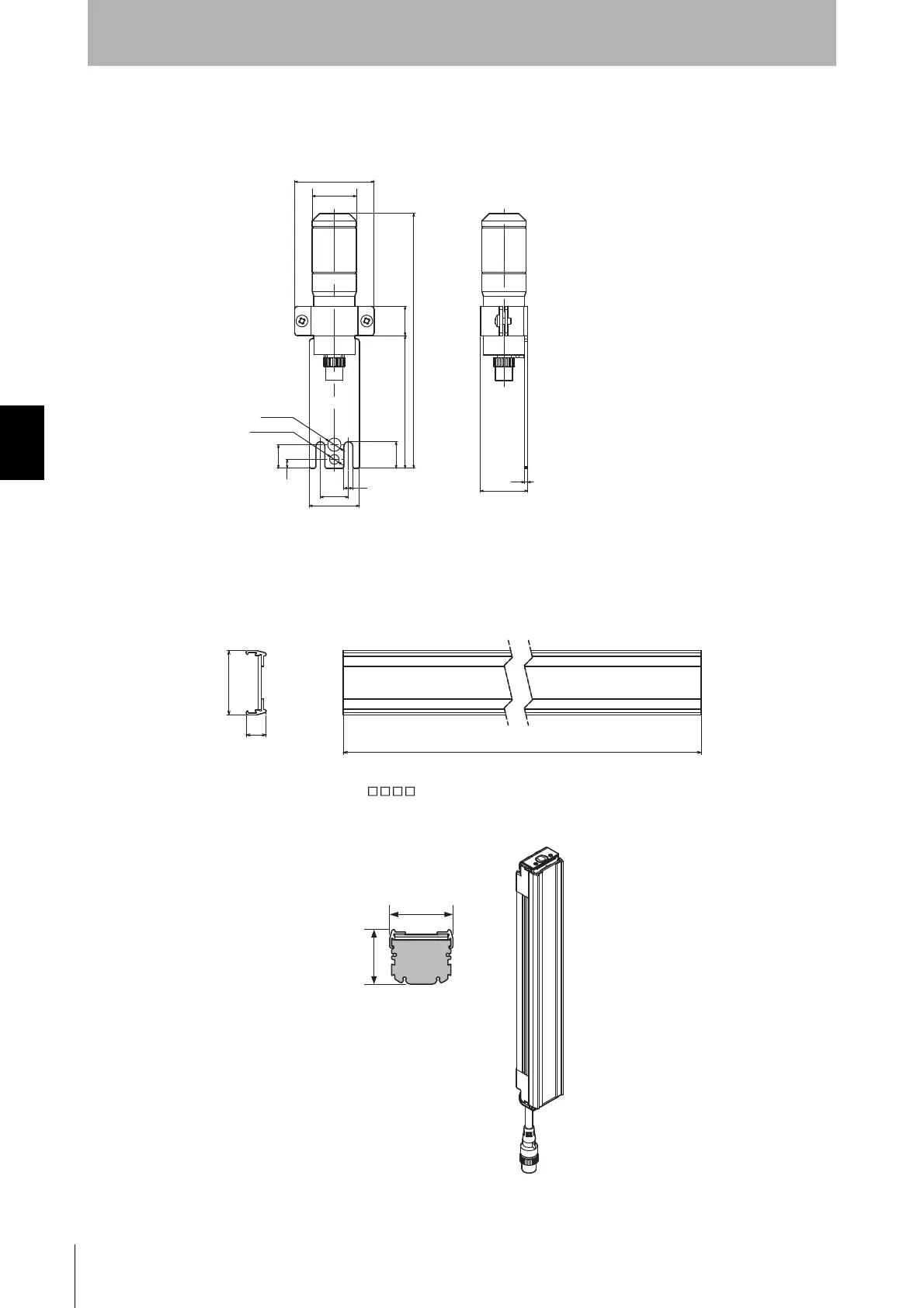

 Dimensions of the Spatter Protection Cover F39-HJ
 Assembly Dimensions
18
90
20
173
6
16
6
19
34
54
2
32
FKC
FKC
FKC
(Unit: mm)
Material: Stainless steel
L
10
32
L= -10 mm
(Unit: mm)
Material: PC (protective cover)
29.5
32
(Unit: mm)

Omron F3SJ Series Specifications

General

Type	Safety Light Curtain
Safety Category	Category 4
Protection Rating	IP67
SIL	SIL3
Operating Temperature	-10°C to +55°C
Detection Method	Infrared
Resolution	14 mm
IP Rating	IP67
Certification	CE
Power Supply Voltage	24 VDC ±10%
