Omron F3SJ Series User Manual

145
F3SJ-A
User’s Manual
Chapter4 Dimensions
Wiring/Installation
E
 F39-LJ11 Top/bottom Mounting Bracket C

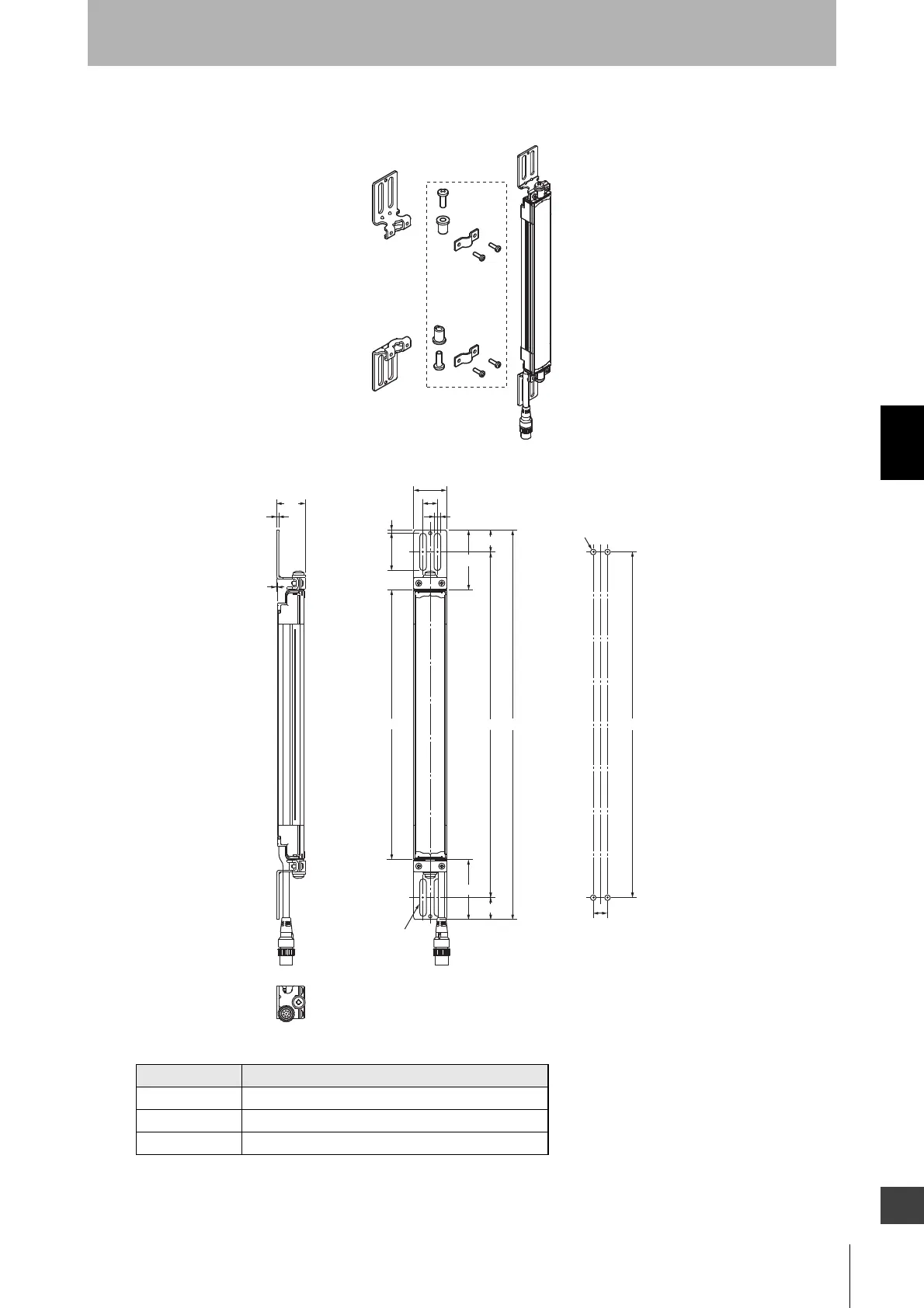

Dimensions A to C
A C + 109
BC + 69
C 4-digit number of the model name (protective height)
Use standard
brackets
26
㧔20㧕
13
㧔54.5㧕
34
3
13
30
6
20
54.5
ABB
2
1
4-M5
Hole size for mounting
4-Mounting holes
Material: Stainless steel
(Unit: mm)
C (Protective height)

Omron F3SJ Series Specifications

General

Type	Safety Light Curtain
Safety Category	Category 4
Protection Rating	IP67
SIL	SIL3
Operating Temperature	-10°C to +55°C
Detection Method	Infrared
Resolution	14 mm
IP Rating	IP67
Certification	CE
Power Supply Voltage	24 VDC ±10%
