Omron F3SJ Series User Manual

61
F3SJ-A
User’s Manual
Chapter3 Preparation
What can be done by the setting tool
E
Preparation
You can use various functions of F3SJ and change its settings if you purchase optional accessories described
below.
 Setting Console F39-MC21
Provides easy setting on site. For F3SJ-A □□□□N25 and N55 series, use the setting console of
version 1.10 or later. Version 1.00 cannot be used.
 PC Tool for F3SJ F39-GWUM
Allows functional setting through connection with your computer. It provides finer setting than the
setting console. For F3SJ-A
□□□□N25 and N55 series, use the PC tool for F3SJ of version 1.30 or
later.
Using the Setting Tool p.58
 Setting Console
Setting console F39-MC21 consists of following units.
•Setting Console
•Branch Connector (with Connector Cap)
•Dedicated Cable
•Plugged Dedicated Cable
•Instruction Manual

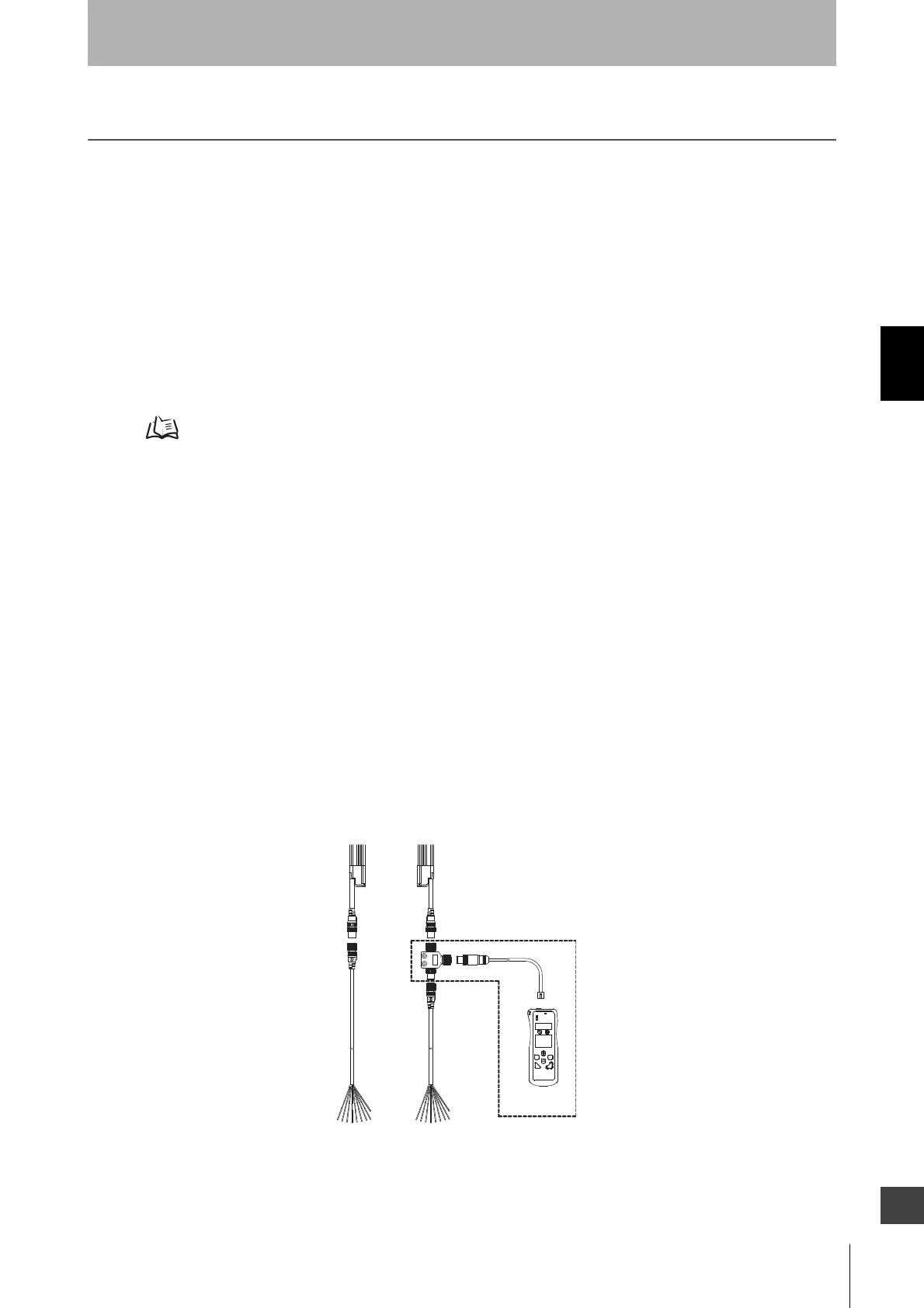

 Connection Procedure
Connect the setting console and F3SJ as shown below. You can connect a branch connector either on
the emitter or receiver end. Complete the wiring for F3SJ and turn it on, then change functional
settings.
If a branch connector is difficult to attach due to devices layout or other reason, use an accessory
plugged dedicated cable to communication lines (+) and (-).
For details, see instruction manual of the setting console F3SJ.
 PC Tool for F3SJ
PC Tool for F3SJ, F39-GWUM, consists of following units.
Setting Console
F39-MC21
(Optional accessory)

Omron F3SJ Series Specifications

General

Type	Safety Light Curtain
Safety Category	Category 4
Protection Rating	IP67
SIL	SIL3
Operating Temperature	-10°C to +55°C
Detection Method	Infrared
Resolution	14 mm
IP Rating	IP67
Certification	CE
Power Supply Voltage	24 VDC ±10%
