Omron F3SJ Series User Manual

60
Chapter3 Using the Setting Tool
F3SJ-A
User’s Manual
What can be done by the setting tool

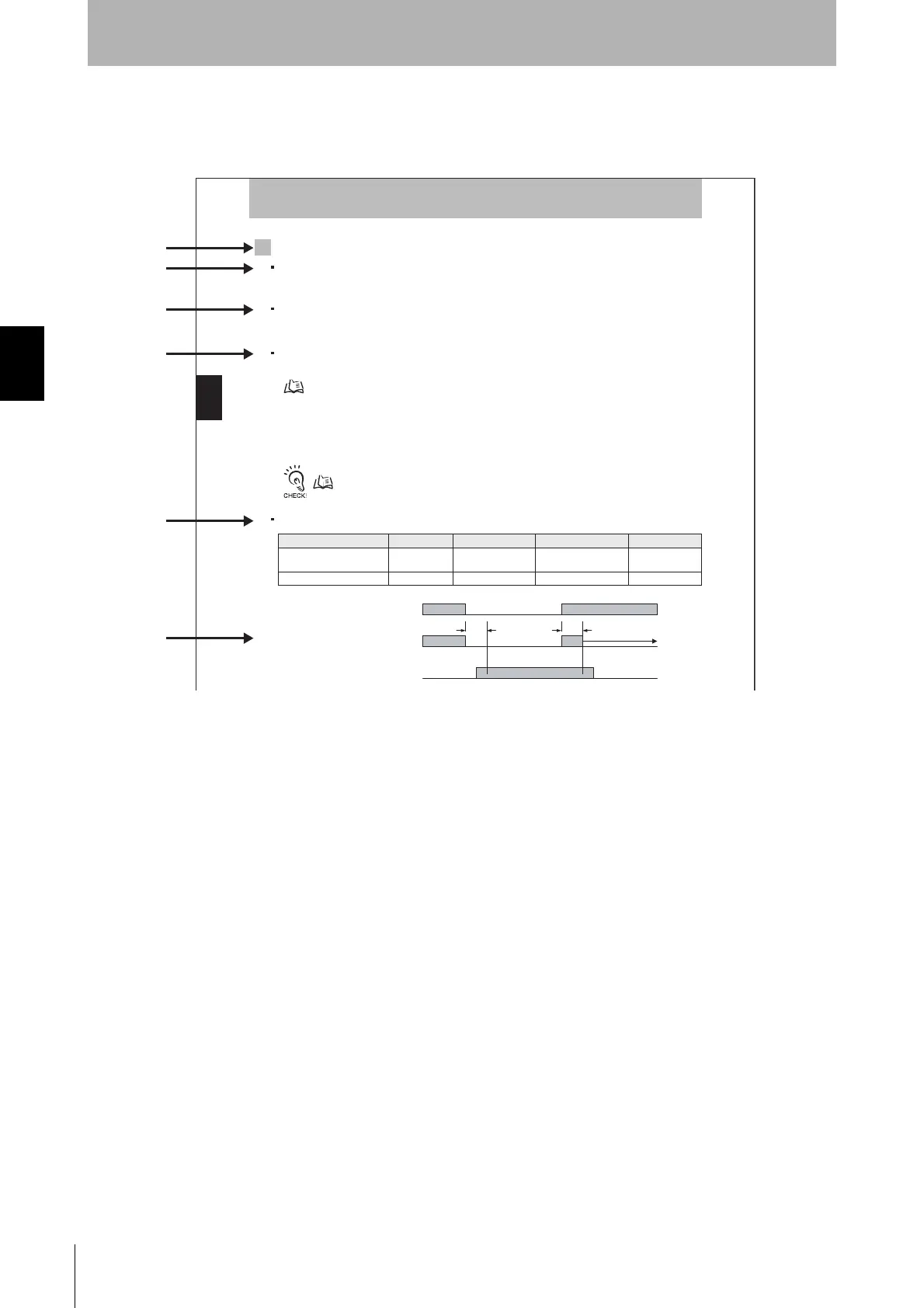

Shown below is an example of description in Chapter 3, taking “External Device Monitoring” for
instance.
Ex. “External Device Monitoring Function”
(1) Describes function's name.
(2) Indicates what can be done by the setting tool.
(3) Describes detailed usage of the function.
(4) Describes detailed explanation of the function.
(5) Indicates setup items available for the setting tool.
(6) Illustrates figures and time charts.
(1)
(2)
(3)
(4)
(5)
(6)
Chapter
3
Indicator/Input & Output Setting
Changing Setting of Functions
External Device Monitoring Function
Overview
Settings for external device monitoring can be changed.
Example
•To adjust allowable delay time to a device’s response time
Functional Description
• External Device Monitoring Function
(Chapter 2)External Device Monitoring Function (EDM)㩷㫇㪅㪍㪇㩷
• Allowable Delay Time
Specifies maximum value T1 of external device’s operation time after safety output changes.
Lockout state occurs if the external device monitoring input does not change when the time exceeds
this maximum value.
External device input information can be provided to auxiliary output or external indicator output.
- Auxiliary Output (Non-Safety Output)㩷㫇㪅㪎㪏㩷
- External Indicator Output (Non-Safety Output)㩷㫇㪅㪏㪇㩷
Setting Change
Function Initial Setting Available Setup Item Setting Console PC Setting Tool
External Device Monitoring
Function
Enabled Enable/disable
Allowable Delay Time 0.3s 0.1 to 2.5s (by 0.1s)


Safety output
ON
OFF
External device
monitoring input
ON
OFF
F3SJ Unblocked/Blocked
Unblocked
Blocked
Lockout
T1 T1

Omron F3SJ Series Specifications

General

Type	Safety Light Curtain
Safety Category	Category 4
Protection Rating	IP67
SIL	SIL3
Operating Temperature	-10°C to +55°C
Detection Method	Infrared
Resolution	14 mm
IP Rating	IP67
Certification	CE
Power Supply Voltage	24 VDC ±10%
