Omron F3SJ Series User Manual

77
F3SJ-A
User’s Manual
Chapter3 Setting Adjusted to Application
What can be done by the setting tool
E

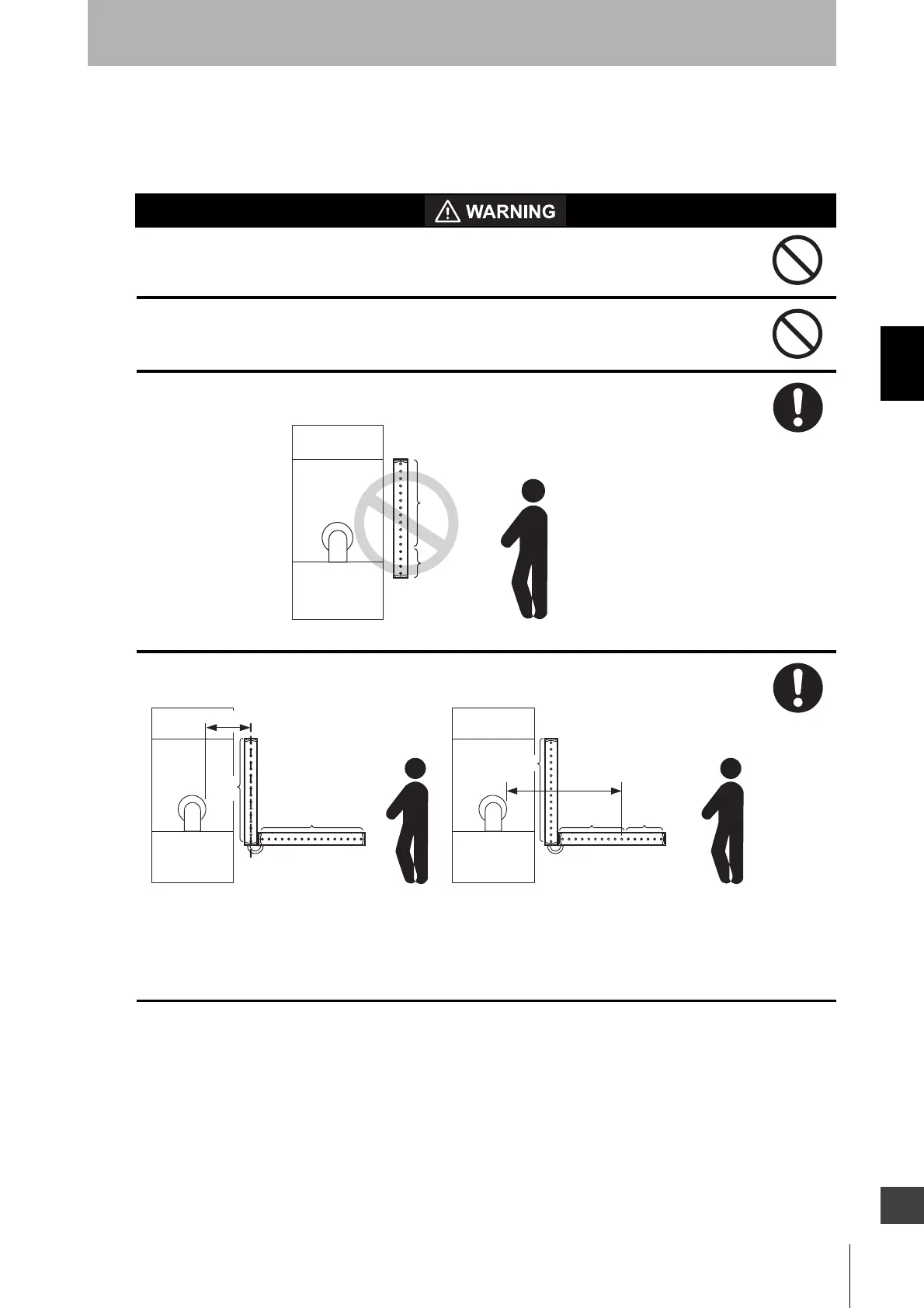

 Warning Zone Function
 Overview
Detection zone can be divided into original detection zone and warning zone.
Warning zone output is non-safety output. You must not include it to calculation of safety
distance. Otherwise safety distance may be reduced, resulting in serious injury.
A warning zone CANNOT be used for safety applications. Always install your system so
that a detection zone should be passed before reaching a source of danger.
Warning zone function can be used only when F3SJ is installed horizontally. It CANNOT
be used when F3SJ is installed vertically.
A warning zone must be configured based on a safety distance.
See "Safety Distance: If a person approaches the detection zone of the F3SJ
perpendicularly p.113 " if a detection zone is within vertically installed F3SJ as shown left.
See "Safety Distance: In case of horizontal approach of a human body to F3SJ's
detection zone p.114 " if a detection zone is within horizontally installed F3SJ as shown
right.
 Example
•When a person enters, indicator or buzzer should notify warning without stopping a machine.
*C\CTF
Detection Zone
Warning Zone
Warning Zone
Detection
Zone
Hazard
Warning Zone
Detection Zone
Detection Zone
Hazard
Safety distance (S)
Safety
distance (S)

Omron F3SJ Series Specifications

General

Type	Safety Light Curtain
Safety Category	Category 4
Protection Rating	IP67
SIL	SIL3
Operating Temperature	-10°C to +55°C
Detection Method	Infrared
Resolution	14 mm
IP Rating	IP67
Certification	CE
Power Supply Voltage	24 VDC ±10%
