58
Chapter3 Using the Setting Tool
F3SJ-A
User’s Manual
What can be done by the setting tool
Using the Setting Tool
You can change and check setting of F3SJ‘s various settings if you purchase a setting tool (optional
accessory) described below.
• Setting Console F39-MC21
• PC Tool for F3SJ F39-GWUM
F3SJ must be installed, configured, and incorporated into a machine control system by a suffi-
ciently trained and qualified person. Incorrect setting may cause a person to go undetected,
resulting in serious injury.
F3SJ Version
The setting tool can be used for F3SJ of version 2 or later, but cannot be used for that of version 1.
Or, if any one of series connected F3SJs is version 1, the setting tool cannot be used (communication
error should occur).
Please note that the setting tool does not upgrade the version of the F3SJ.

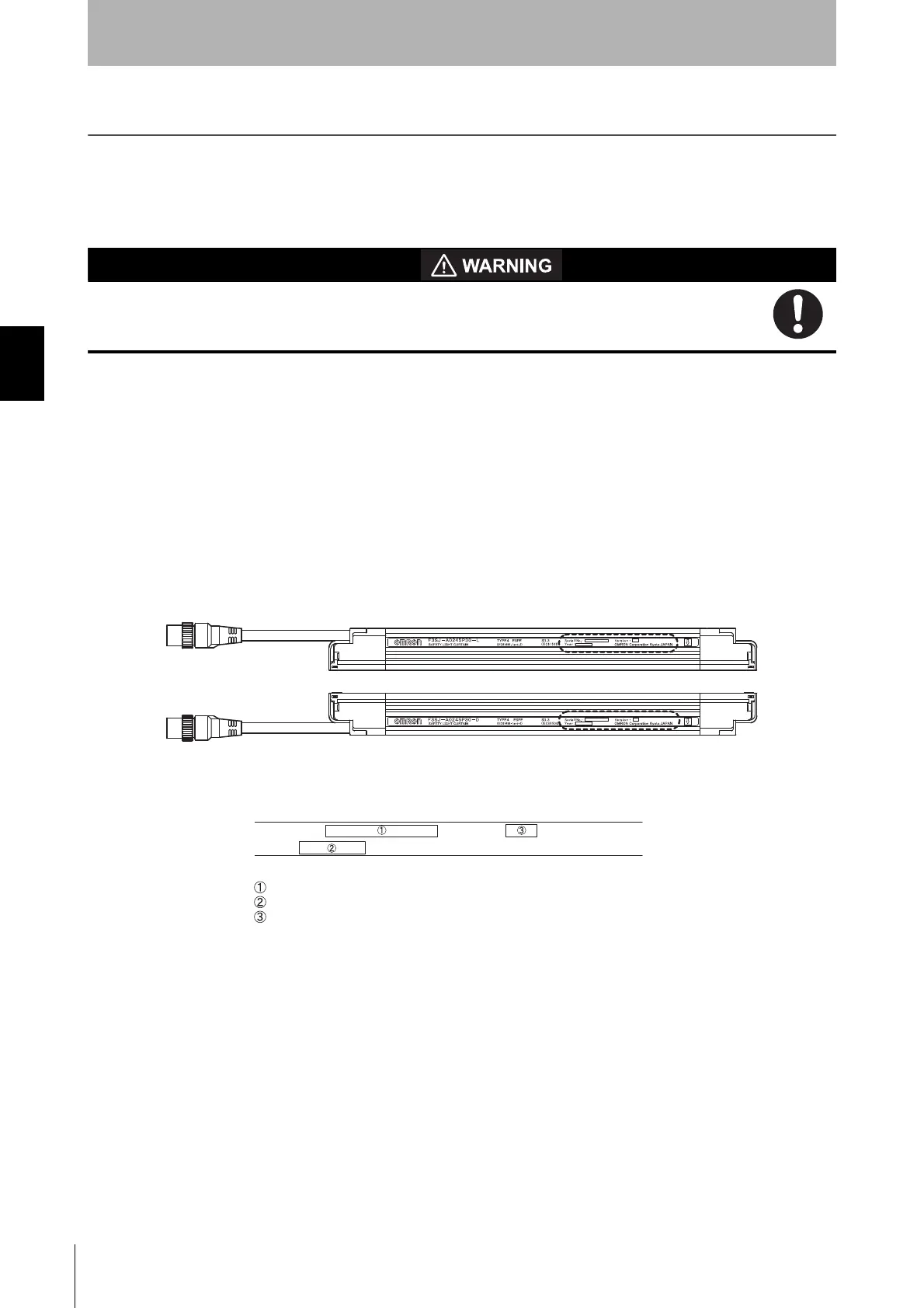

Confirm the version on F3SJ label, as shown in the diagram below.
Year :
Serial No. : Version :
OMRON Corporation Kyoto, JAPAN
Location of the label describing the F3SJ version
Emitter
Receiver
Enlarged view of area enclosed by dotted line
: Serial No.
: Year of manufacture
: F3SJ version (Make sure it is version 2 or later.)
To Next Page
