152
Chapter4 Mounting
F3SJ-A
User’s Manual
Wiring/Installation
Mounting

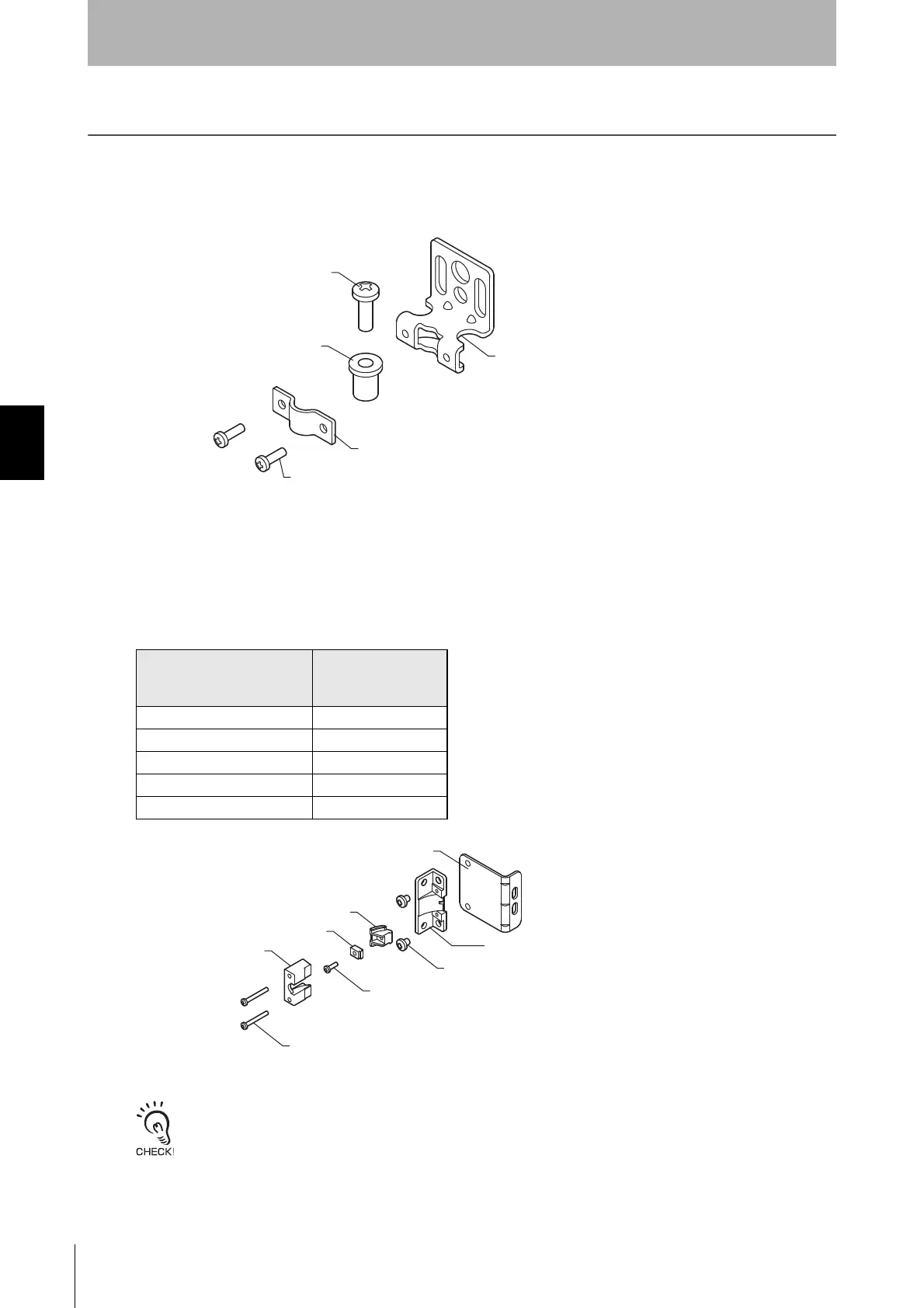

The procedures for using standard mounting brackets (included) are explained in this section.
Top/Bottom Mounting Brackets
Intermediate Mounting Brackets
The number of intermediate mounting brackets included with F3SJ of various protective heights is
shown below.
- To use other mounting bracket or bolt than those for F3SJ, you must confirm that their sizes should match F3SJ.
Especially when you do not use top/bottom mounting brackets (2), you may need screws with appropriate length
because the standard mounting screws (M5 x 20) may be too long.
- If the protective height is 600 mm or more, use intermediate mounting brackets of specified quantities and locations
according to the dimensions.
If the brackets described above are not used, ratings and performance cannot be not met.
Protective height
Number of
intermediate mounting
brackets
0245 to 0596 0
0600 to 1130 1
1136 to 1658 2
1660 to 2180 3
2195 to 2500 4
Mounting screws (M5x20) x 4
Top/bottom mounting bracket (3) x 4
Top/bottom mounting bracket (1) x 4
Top/bottom mounting bracket (2) x 4
Mounting screws (M3x8) x 8
*1 The quantities shown here are the number of
parts included in 1 top/bottom mounting bracket set
Material: Stainless steel (top/bottom mounting bracket (1), (3))
Brass (top/bottom mounting bracket (2))
Iron (mounting screws)
Side mounting intermediate brackets x 2
(These brackets are used only for side mounting.)
Intermediate brackets (1) x 2
Mounting screws (M5x10) x 4
Intermediate brackets (2) x 2
Intermediate brackets (3) x 2
Intermediate brackets (4) x 2
Mounting screws (M3x10) x 2
Mounting screws (M4x25) x 4
* The quantities shown here are the number of parts
included in1 intermediate mounting bracket set
Material: Stainless steel (intermediate mounting bracket)
Zinc die-cast (Intermediate mounting brackets (1) to (4))
Iron (mounting screws)
