Omron G5 Series User Manual

4 System Design
4 - 8
OMNUC G5-series (Pulse-train Input Type) AC Servomotors and Servo Drives User’s Manual

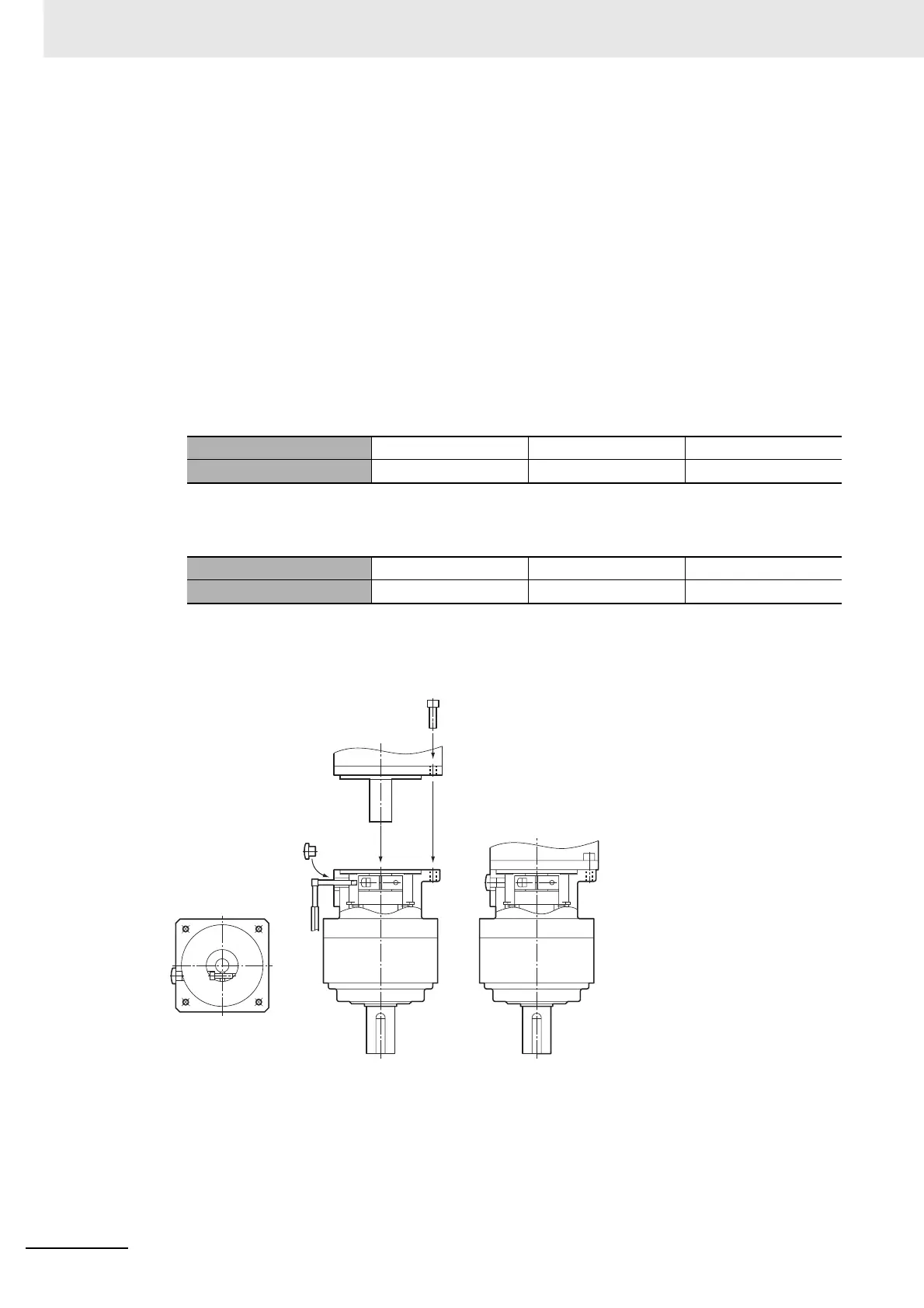

 Installing the R88G-VRSF (Backlash: 15 Arcminutes max.)
Follow the instructions bellow to install the Decelerator and the Servomotor.
1 Turn the input joint and align the head of the bolt that secures the shaft with the rubber
cap.
Confirm the set bolts are loose.
2 Gently insert the Servomotor into the decelerator.
Put up the decelerator vertically and slide the Servomotor into the input shaft joint while using
the motor shaft as guide not to fall over, as shown in the following figures. When the decelerator
cannot be put up vertically, tighten each bolt evenly little by little to ensure that the Servomotor is
not inserted at a tilt.
3 Fix the Servomotor and the flange of the decelerator with bolts.
Bolt tightening torque
4 Tighten the bolts of the input coupling.
Bolt tightening torque (for duralumin)
Note Tighten the bolts to the torque indicated on the above table. The Servomotor may slip or other
problems may occur if the specified torque level is not satisfied.
5 Mount the supplied rubber cap to complete the installation.
Allen head bolt size M4 M5 M6
Tightening torque [N·m] 3.0 5.8 9.8
Allen head bolt size M3 M4 M5
Tightening torque [N·m] 1.5 4.5 7.1
(1)
(2)
(4)
(5)
(3)

Omron G5 Series Specifications

General

Feedback	Incremental Encoder, Absolute Encoder
Communication	EtherCAT
Safety Function	STO (Safe Torque Off)
Protection Functions	Overvoltage, Undervoltage, Overcurrent
Vibration Resistance	4.9 m/s² (10 to 55 Hz)
