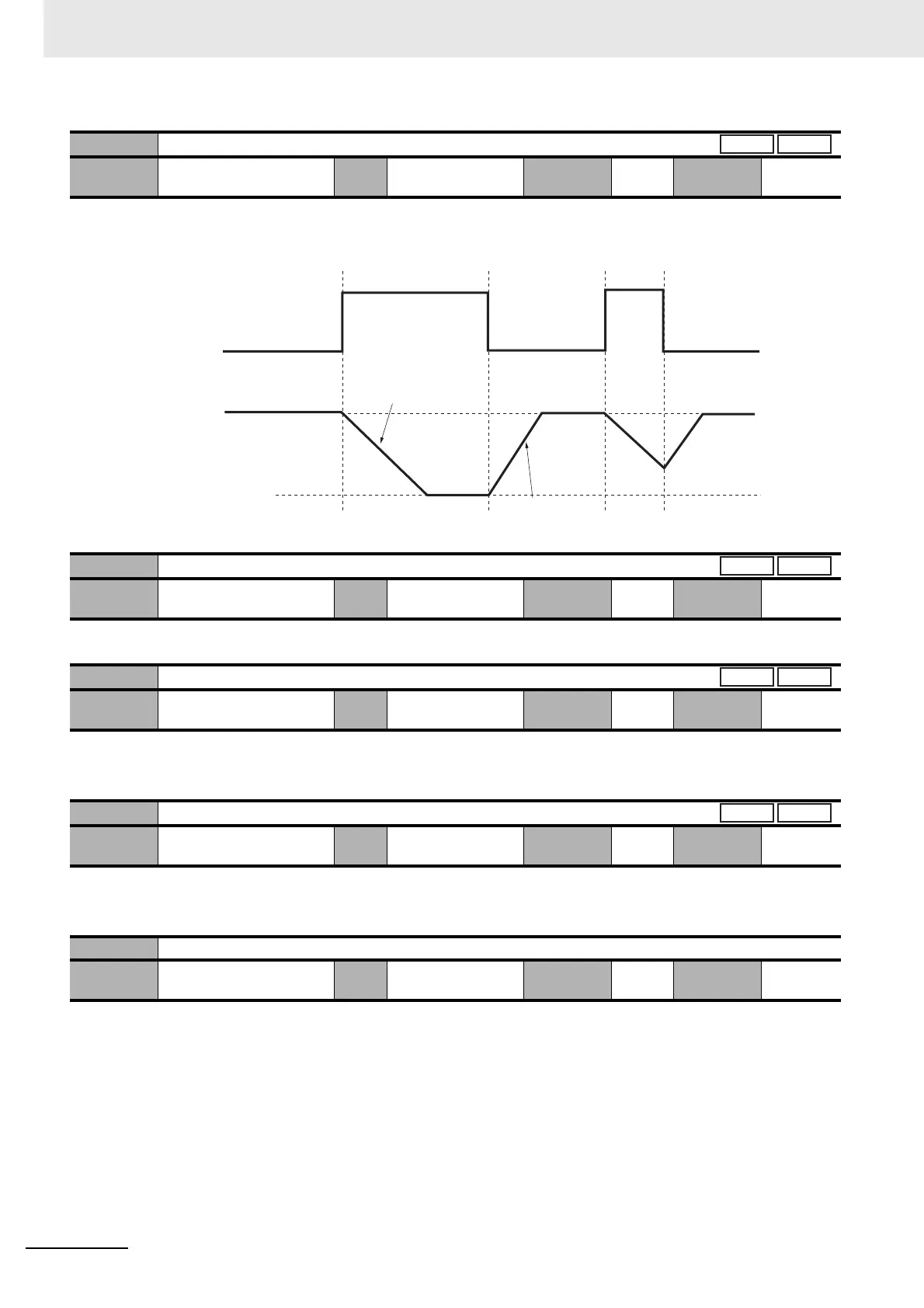

7 Parameter Details
7 - 52
OMNUC G5-series (Pulse-train Input Type) AC Servomotors and Servo Drives User’s Manual
Set the rate of change when switching from No.1 Torque Limit to No.2 Torque Limit.
When set to 0, switching takes place immediately.
For this parameter, set the same value as for Torque Limit Switching Setting 1 (Pn523).
Set the forward external torque limit for the torque limit switching input.
The unit is 0.1% of the rated torque.
Set the reverse external torque limit for the torque limit switching input.
The unit is 0.1% of the rated torque.
Do not set.
Pn523
Torque Limit Switching Setting 1
Setting
range
0 to 4,000 Unit ms/100% Default
setting
0
Cycle the
power supply
Pn524
Torque Limit Switching Setting 2
Setting
range
0 to 4,000 Unit ms/100% Default
setting
0
Cycle the
power supply
Pn525
Forward External Torque Limit
Setting
range
0 to 500 Unit % Default
setting
500
Cycle the
power supply
Pn526
Reverse External Torque Limit
Setting
range
0 to 500 Unit % Default
setting
500
Cycle the
power supply
Pn527 Reserved
Setting
range
30 Unit Default
setting
30
Cycle the
power supply
Position
Speed
Torque Limit
Switching (TLSEL)
Torque Limit
Switching Setting 1
(Pn523)
Torque Limit Switching
Setting 2 (Pn524)
No.1
Torque Limit
(Pn013)
No.2
Torque Limit
(Pn522)
Position
Speed
Position
Speed
Position
Speed
