How to Use Data Trace Recording Tool Appendix
256
Input format
Area string = Area symbol + Word range + Bit range
• Area symbol Area symbols in the above table (Uppercase charac-
ters)
• Word range Specify "word." (Decimal)
Specify for the number in the table.
(Example: 000016 for address 16 and number of digit 6)
• Bit range Specify "bit." (Decimal)
Specify for the number in the table.
(Example: 08 for address 8 and number of digit 2)
Input example: CIO000101 (CIO 1word, 1 bit)
Note
How to specify for an EM bank
Specify with "-"(hyphen) × Number of banks (Decimal) after the EM address.
(Example: E32767-12 for address 32767 and bank 12)
Operation of Data Trace Recording Tool
Note
Before using the Data Trace Recording Tool, make sure that the FinsGateway
Service Manager is started and the communications unit of the network where
CPU_UNIT and the target PLC are connected is servicing.
Staring Procedure
1,2,3…

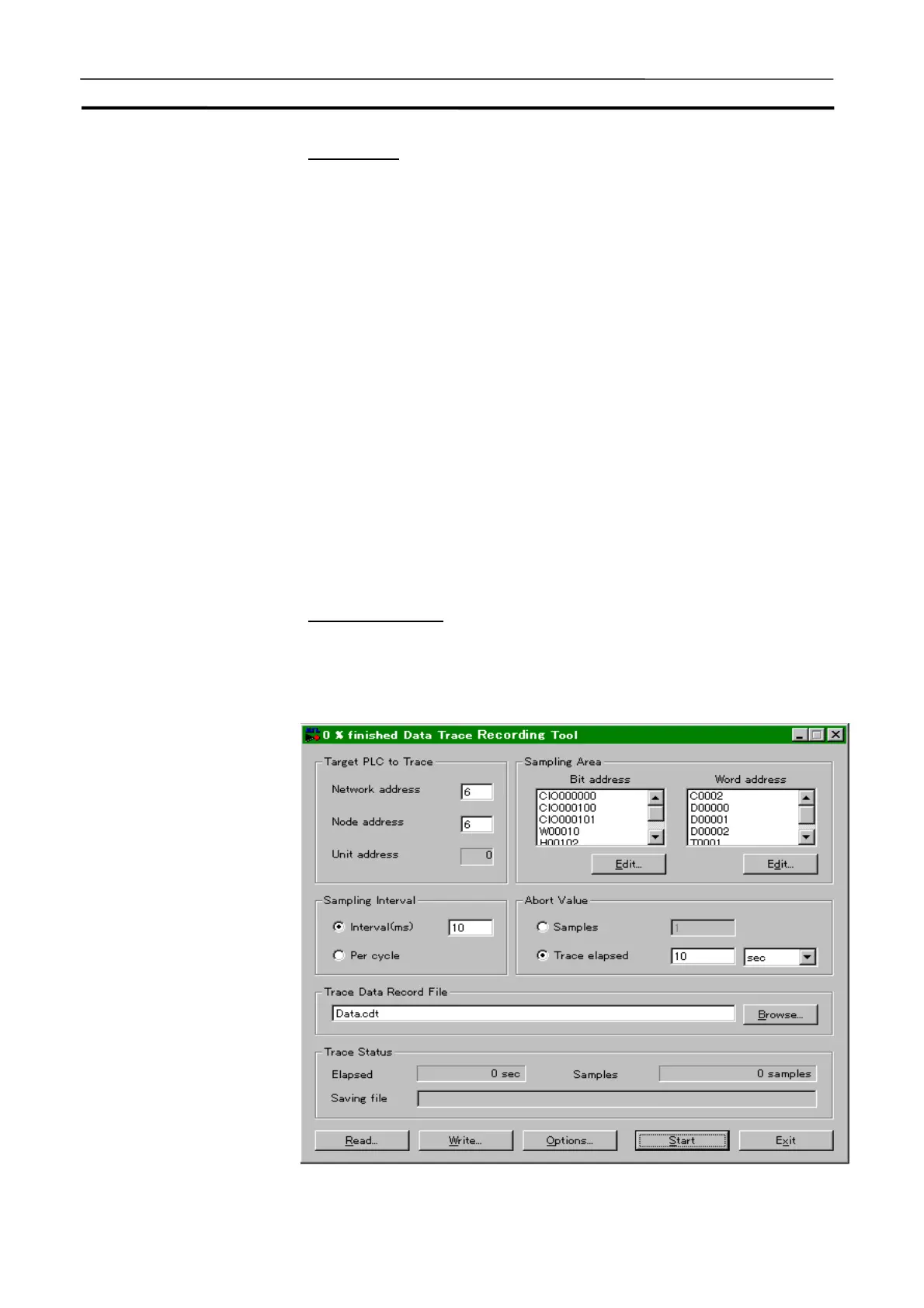

1. Select the Data Trace Recording Tool from [Start] | [Program] | [Omron] |
[CX-Simulator] to display the execution window of the Data Trace Re-
cording Tool.
To Next Page
