How to Use Data Trace Recording Tool Appendix
259
Using in Host Link
When tracing in Host Link via a Serial Communications Unit of FinsGateway,
set for the Serial Communications Unit.
Note
1. The Data Trace Recording Tool, assuming that FinsGateway is used, the
RUNTIME version of the FinsGateway Serial Communications Unit is
required separately when using in Host Link.
2. For the details of FinsGateway and FinsGateway Serial Communications
Unit, refer to the manual attached to the RUNTIME version of the Fins-
Gateway.
Setting the Serial Communications Unit
1,2,3…

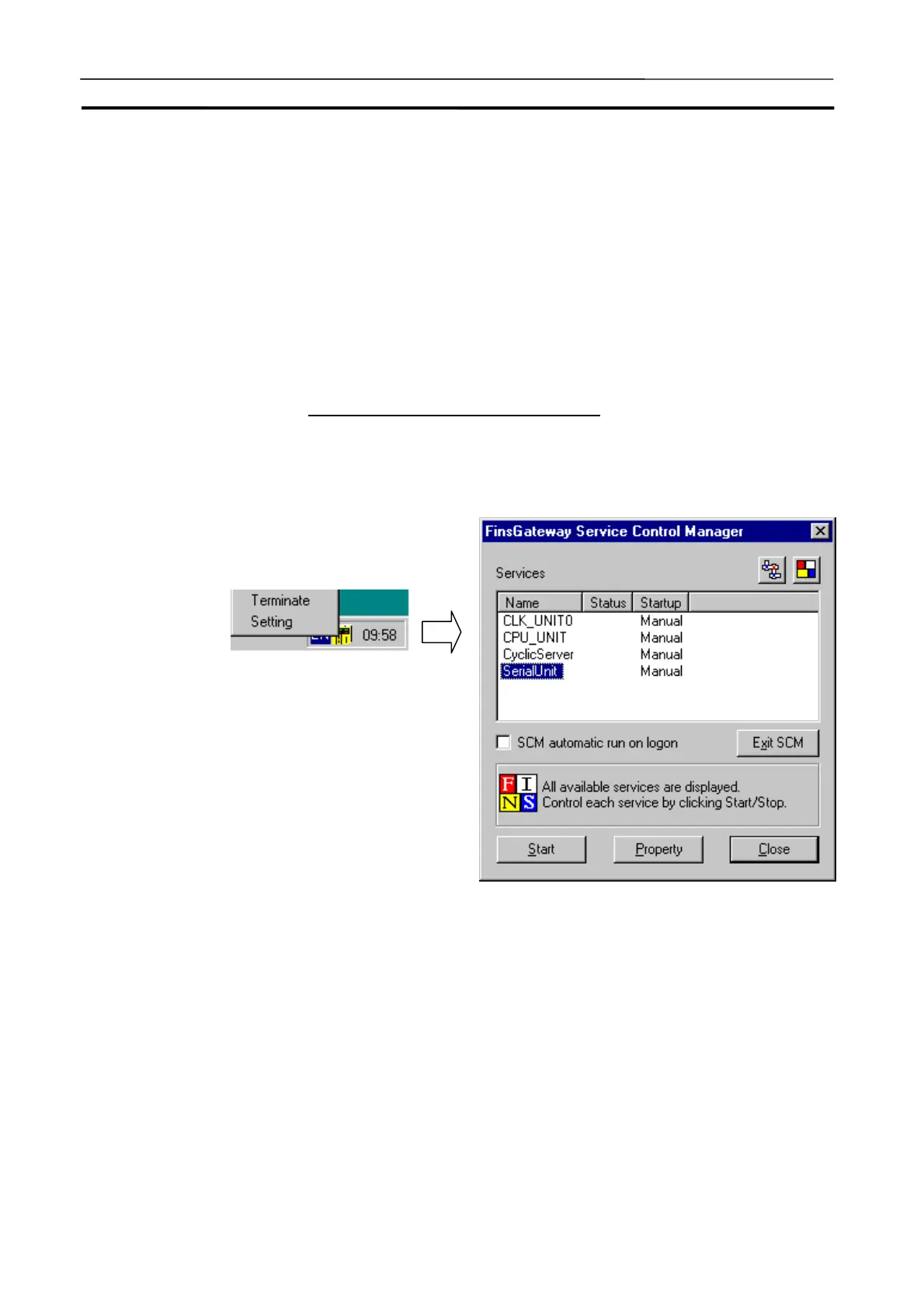

1. Select the FinsGateway Service Manager in [Start] | [Program] | [Omron] |
[FinsGateway]. If it is being activated, right-click the FinsGateway Service
Manager in the icon tray and select the setting from the pop-up menu. The
FinsGateway Service Manager will be displayed.
2. Select "SerialUnit" in the list of the FinsGateway Service Managers and
click the [Start] button. The display will change from "List" to "Start" when
"SerialUnit" starts. If the CPU Unit for FinsGateway is not started then, the
CPU Unit will automatically start.
