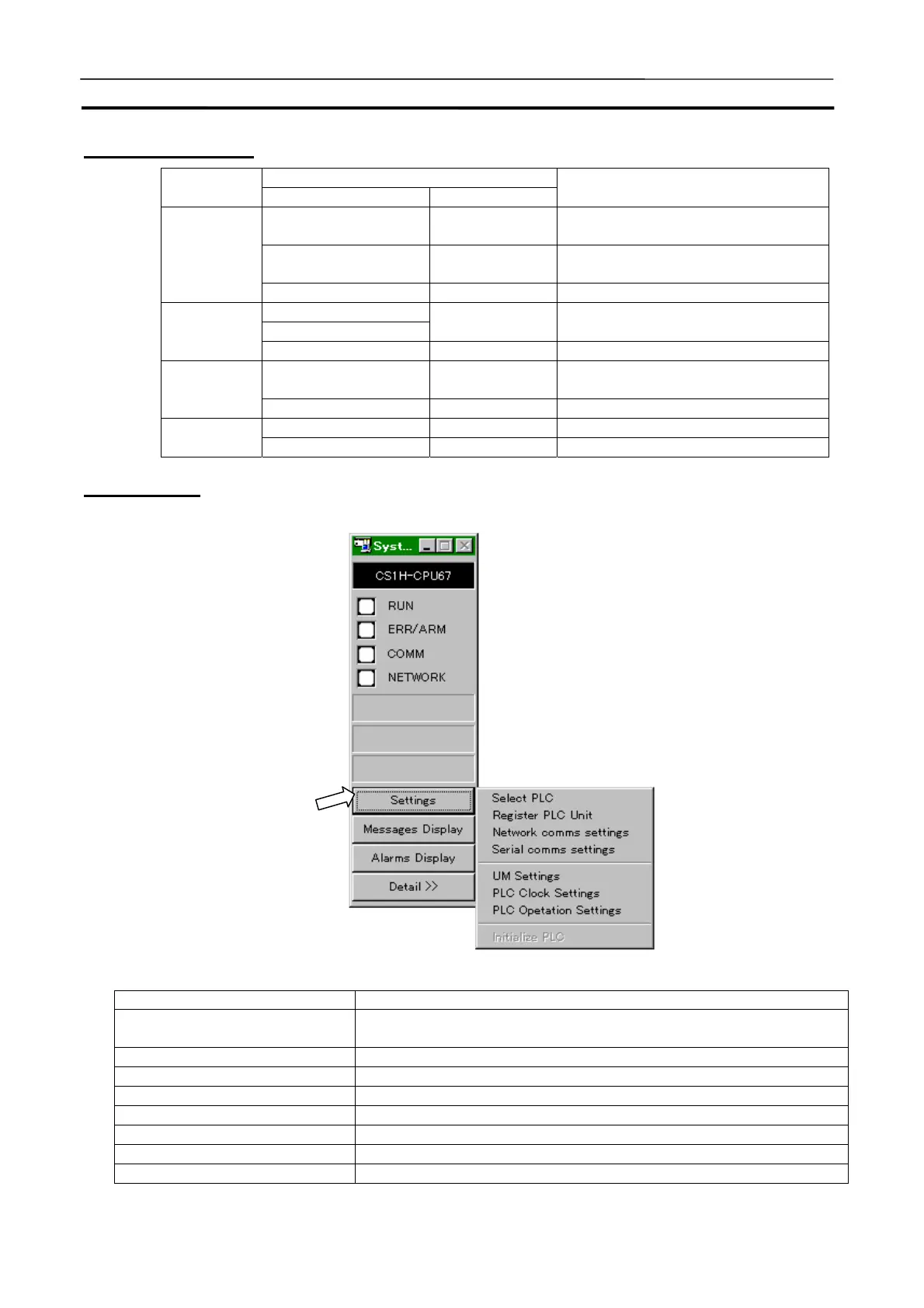

System Status Setting Window Section 3-7
62
Status Display LED
Display Status LED
CS/CJ/CP-series PLC CX-Simulator
Condition
Lit (Green) Green Executing programs in RUN/
MONITOR mode.
Blink (Green) − Mode error in system downloading
(Not used)
RUN
Not lit White Error stop in the PROGRAM mode.
Lit (Red)
Blink (Red)
Red Fatal error/Non-fatal error/Ladder
Engine error
ERR/ARM
Not lit White Normal
Blink (Yellow) Yellow Comm. Port sending/receiving (not
used)
COMM.
Not lit White Other than the above
− Green Starting Communications Unit NETWORK
− white Other than the above
Setting Menu
Pressing the [Settings] Menu button displays the setting menu.
Name Function
Select PLC Create a new PLC (the PLC Setting wizard) and select an existing
PLC.
Register PLC Unit Set the unit mounting to PLC.
Network comms settings Set for the Network Communications Unit.
Serial comms settings Set for the Serial Communications Unit.
UM Settings Set for the UM.
PLC Clock Settings Set the cycle time mode, the interval for continuous run, and others.
PLC Operation Settings Set WDT disable, DIP switches, and others.
Initialize PLC Initialize the I/O memory of PLC.
To Next Page
