Controller Cluster I/O Ports

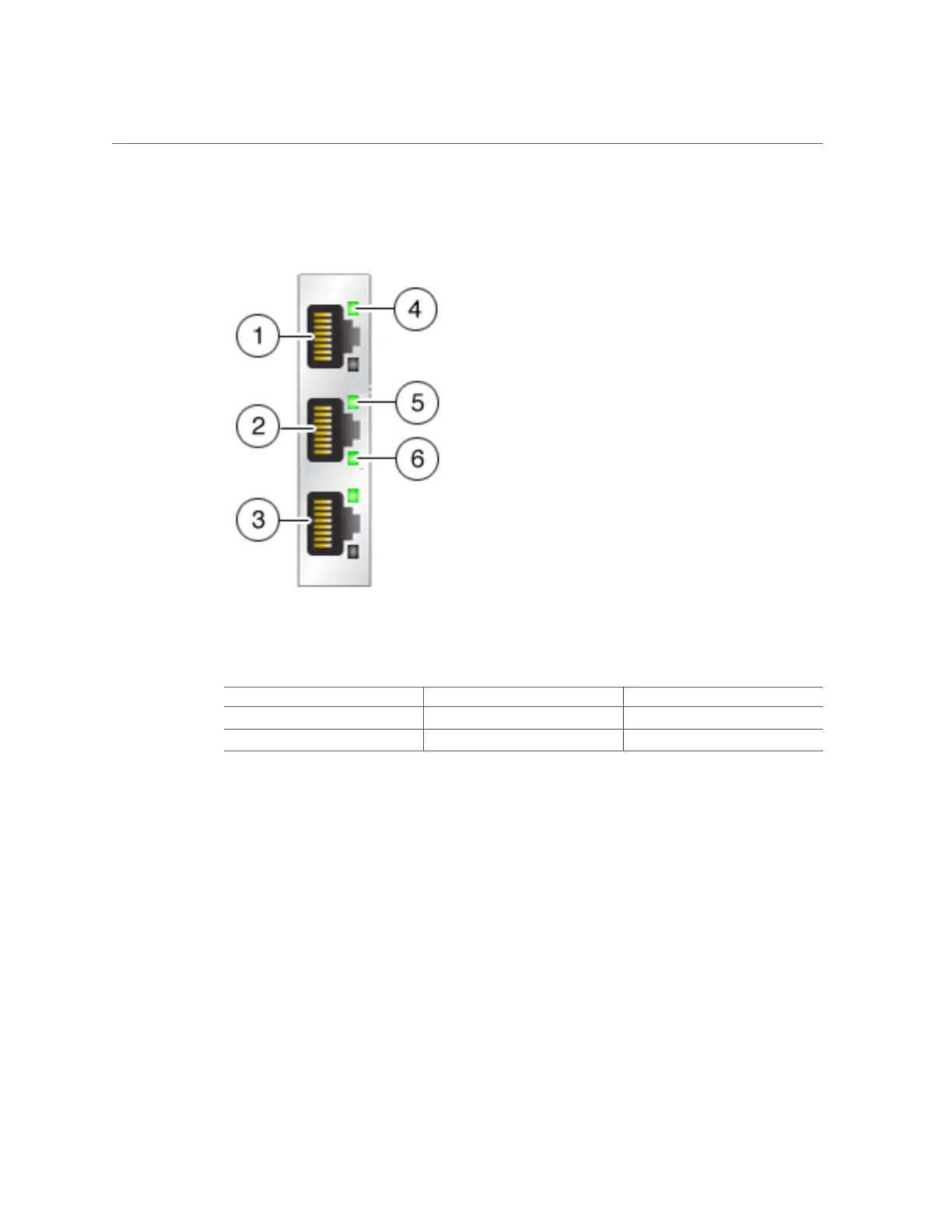

FIGURE 55
ZS7-2, ZS5-4, ZS5-2, ZS4-4, ZS3-4, and 7x20 Controller Cluster I/O Ports
Figure Legend
1 Serial 1 2 Ethernet 3 Serial 0
4 Serial Link Status LED 5 Ethernet Link Status LED 6 Ethernet Activity LED
The following diagram illustrates the cluster serial and Ethernet ports for ZS3-2 controllers.
Cabling the Appliance 227
