1.3 GENERAL CHARACTERISTICS
The VS 2001 equipment is a digital vehicular radio terminal designed in
compliance with the TETRA standard.
The equipment comprises two main modules: the Radio Unit transceiver and the
Front Panel.
The Radio Unit consists of a single piece, die-cast aluminium container that
contains the boards with the circuitry for signal processing both in transmission and
reception phase.
The Front Panel acts as an interface between the operator and the transceiver.
The VS 2001 equipment is shown in Fig. 1.2. The Front Panel is installed on the
dashboard. The transceiver is installed in the boot (trunk) of the vehicle, up to 6
metres from the Front Panel.
1
VS 2001 radio unit
2
VS 2001 FPG1/A cable
3
Power supply cable
4
Loudspeaker
5
PC cable
6
Microphone
7
FPG1/A universal front panel
8
Rear PC cable (optional)
9
Loudspeaker and alarm cable
10
E-WHERE Module
11
E-WHERE / FPG1/A Interface

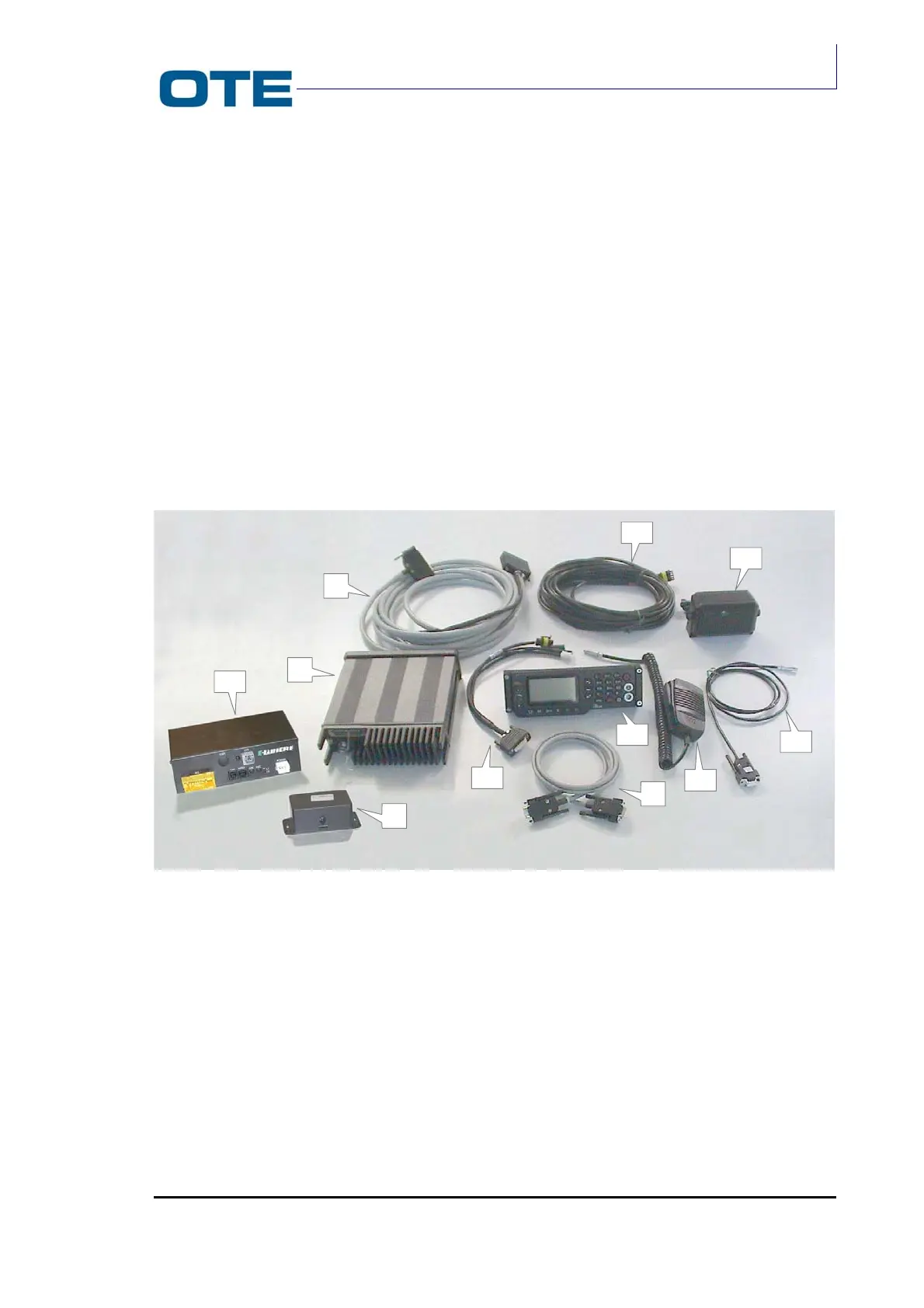

Fig. 1.2: VS 2001 equipment overview
